Maintenance instructions – Ames Fire & Waterworks 5000RPDA Reduced Pressure Detector Assemblies User Manual
Page 11
11

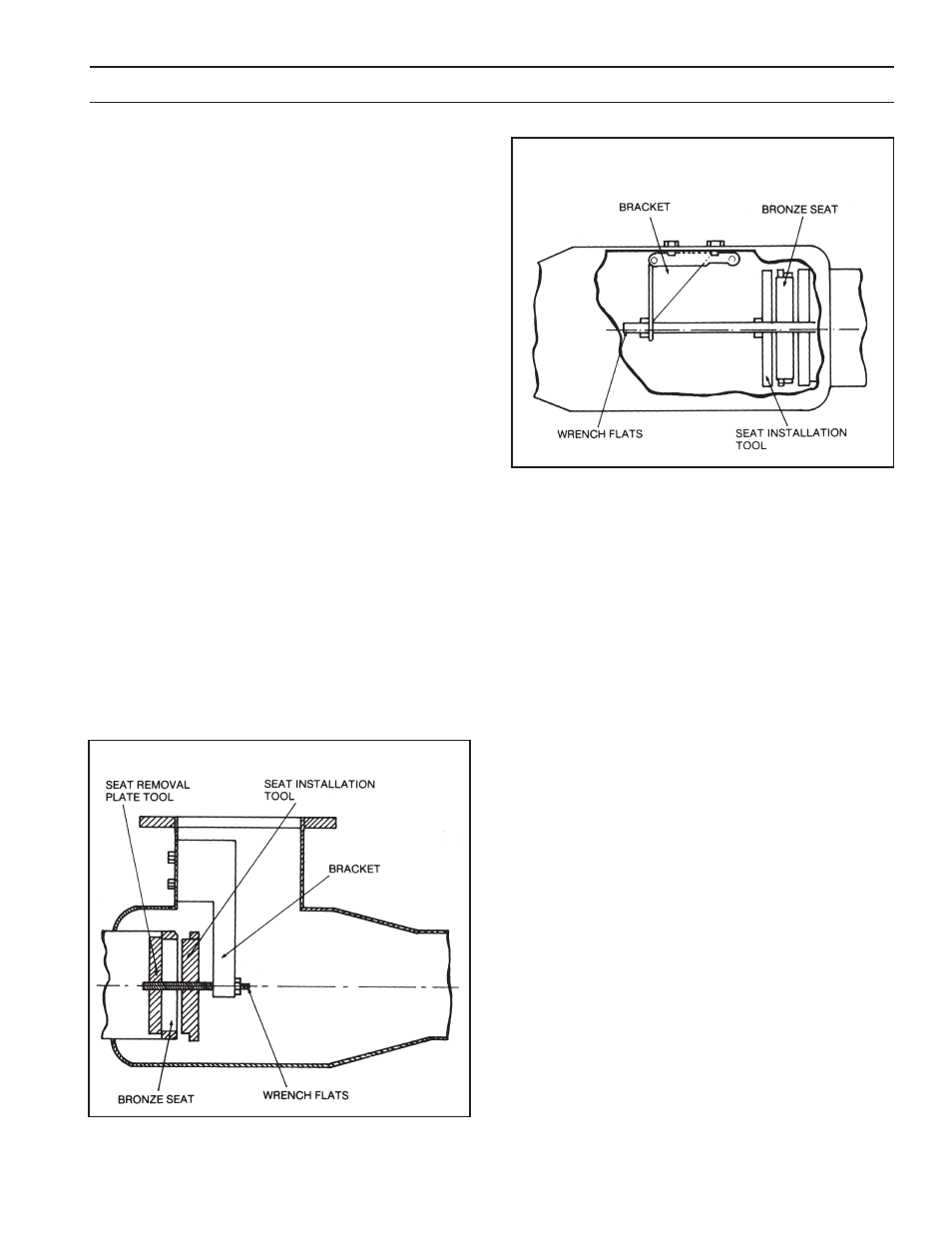

DRAWING VI
DRAWING V
MAINTENANCE INSTRUCTIONS:
Installing New Bronze Seat (Drawing V)
1. Clean debris from seat area.
2. Lubricate seat area with water soluble FDA ap-
proved lubricant.
3. Install tooling as per Drawing V.
4. Using two crescent wrenches, tighten nuts on
rod in opposite directions until seat, with O-ring, is
securely into place. Visually inspect seat to ensure
contact with body.
5. Remove tooling.
6. Install knuckle joint and lid.
II. Removing and Installing bronze seat
(1st check 4000RP and 8" and 10"
(200-250mm) DC & DCDC)
Drawing VI
Note: Procedure is identical to previous removal and
installation of seat.
