Ames Fire & Waterworks 5000RPDA Reduced Pressure Detector Assemblies - Manual (Page 14)

14

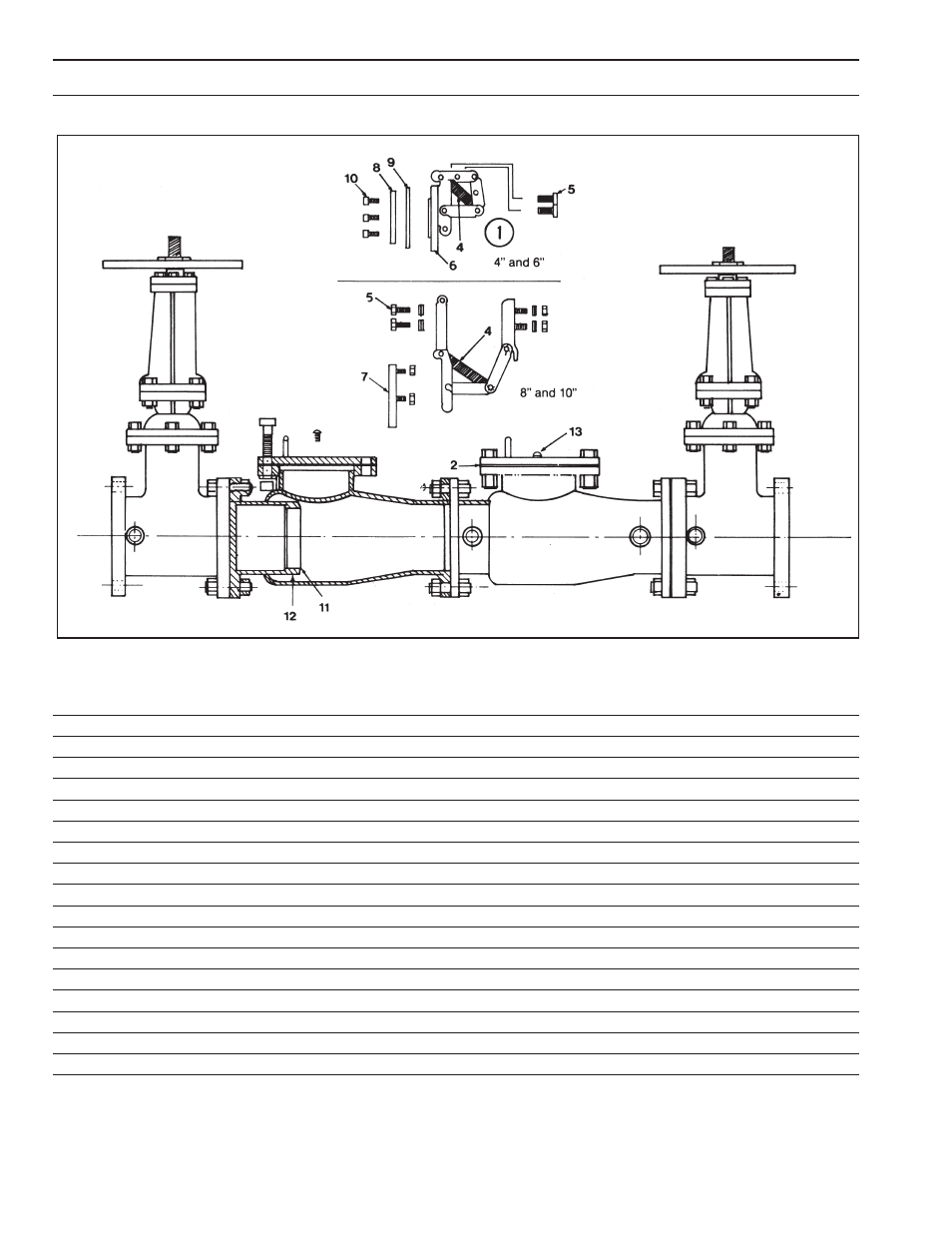

ITEM SIZE SIZE SIZE SIZE
NO. DESCRIPTION QTY. 4" (100mm) 6" (150mm) 8" (200mm) 10" (250mm)
1 Knuckle Joint Assembly (1st & 2nd identical) 1 7011224 7011142 7011236 7011236
2 Bonnet Gasket 1 7011123 7011124 7011125 7011125
3 Ball Valve 4 A000449 A000449 A000449 A000449
4 Spring 2 7011320 7011128 7011319 7011319
5 3 /
8
" Stainless Steel Housing Bolts 2 7014619 7014619 7014619 7014619
6 Washer (rubber faced) 2 7014585 7014585 7014585 7014585
7 Clapper Plate 1 7011228 7011229 7011420 7011420
8 Retainer Plate 1 7011226 7011145 — —
9 Molded Rubber Clapper Insert 1 7011227 7011144 — —
10 Clapper Keeper Bolts 3 A000483 A000483 — —
11 Seat 1 7011160 7011162 7011163 7011163
12 Seat O-ring 1 7011161 A300704 A300706 A300706
13 Vent Screw 1 7011133 7011133 7011133 7011133
14 Tong Tool 1 7016090 7016090 7016090 7016090
15 Clapper Retainer Clip (not shown) 1 7013911 7013912 7013913 7013913
16 Seat Install and Removal Tool (not shown) 1 7013941 7013946 7013950 7013950
17 Linkage Retainer Clip 1 7011037 7011037 7011037 7011037
PARTS
SERIES DC - DCDC
(100-150mm)
(200-250mm)
