13

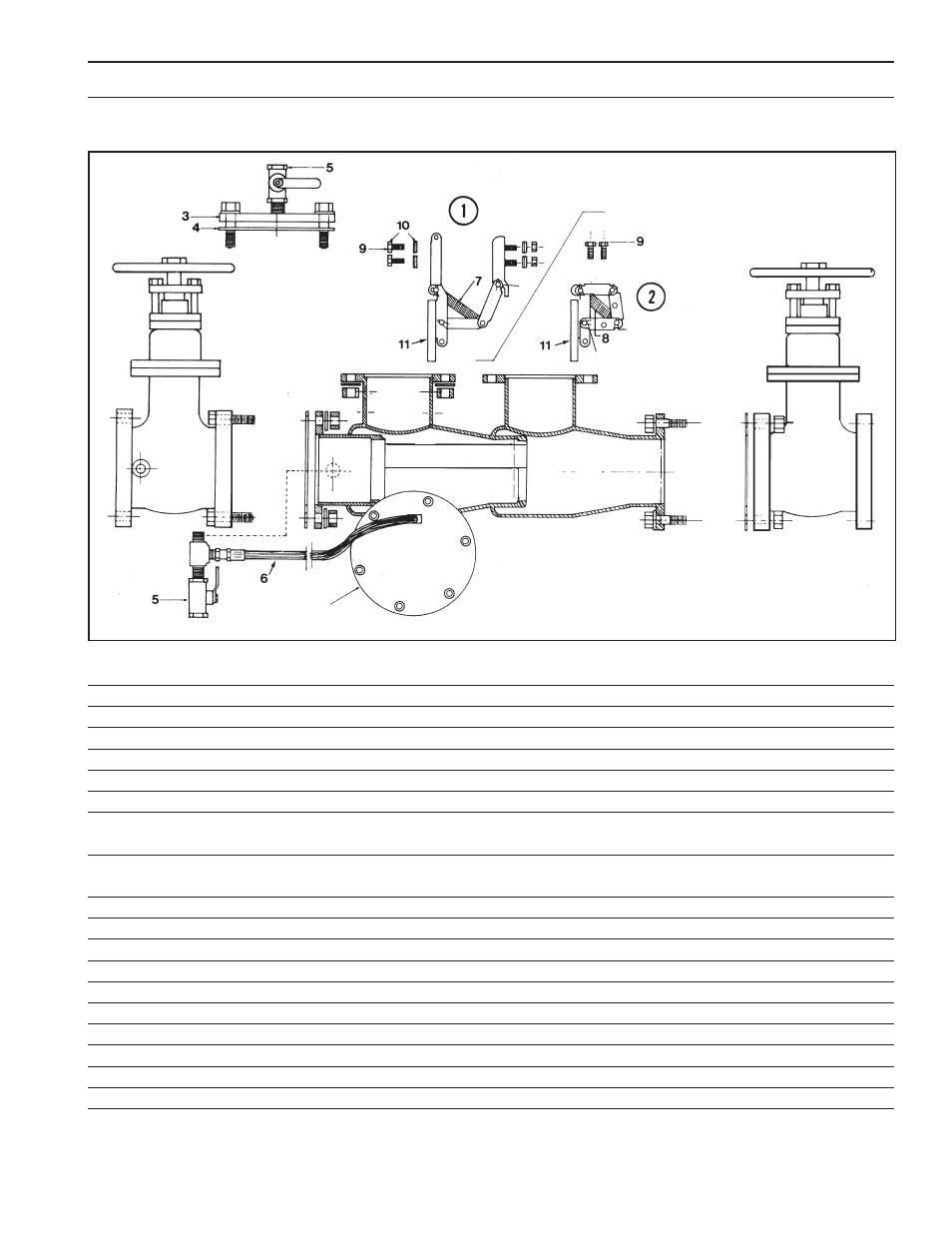

ITEM SIZE SIZE SIZE SIZE
NO. DESCRIPTION QTY. 4" (100mm) 6" (150mm) 8" (200mm) 10" (250mm)
1 1st Knuckle Joint Assembly 1 7011208 7011415 7015553 7015553
2 2nd Knuckle Joint Assembly 1 7011441 7011220 7011257 7011257
3 Bonnet Flange and Cover 1 7011430 7011442 7011453 7011453
4 Bonnet Gasket 1 7011199 7011124 7011125 7011125
5 Ball Valve 4 7014668 A000449 A000449 A000449
6 Braided Hose 1 7014645 7014645 7014645 7014645
7 1st Assembly Springs 7011320 7011319 7011319 7011319
(# of springs required) 2 2 5 5
8 2nd Assembly Springs 7011322 7011128 7011323 7011323
(# of springs required) 2 2 3 3
9 3 /
8
" Stainless Steel Housing Bolts 2 7014619 7014619 7014619 7014619
10 Washer (rubber faced) 2 7014585 7014585 7014585 7014585
11 Vulcanized Clapper Plate 1 7011418 7011419 7011420 7011420
12 Bronze Seat Ring (not shown) 1 7011160 7011162 7011163 7011163
13 Seat O-ring (not shown) 1 7011161 A300704 A300706 A300706
14 Relief Valve 1 7011283 7011283 7011283 7011283
15 Clapper Retainer Clip (not shown) 1 7013911 7013912 7013913 7013913
16 Tong Tool (all sizes) (not shown) 1 7016090 7016090 7016090 7016090
17 Seat Install and Removal Tool (not shown) 1 7013941 7013946 7013950 7013950
18 Linkage Retainer Clip 1 7011037 7011037 7011037 7011037
PARTS
SERIES 4000RP EPOXY
NOTE: Same relief valve is used on all valve 4" through 10"
14
18
18
