4 Operating mode – programming mode
Operating mode
After power-on the device is in operator mode and indicates the cur-
rent value. MIN / MAX functions are enabled.
MIN / MAX function
Every key operation will provide the MAX, MIN and current
measured value one after the other. To reset MAX or MIN, press and
hold the key for 3 seconds. MAX and MIN will not be retained in
the event of power failure.
Programming mode
Overall configuration of the process display is in programming mode
providing 4 modules:
-Configuration input signal
-Configuration of the display
-Configuration of limit outputs
-Configuration of the serial interface

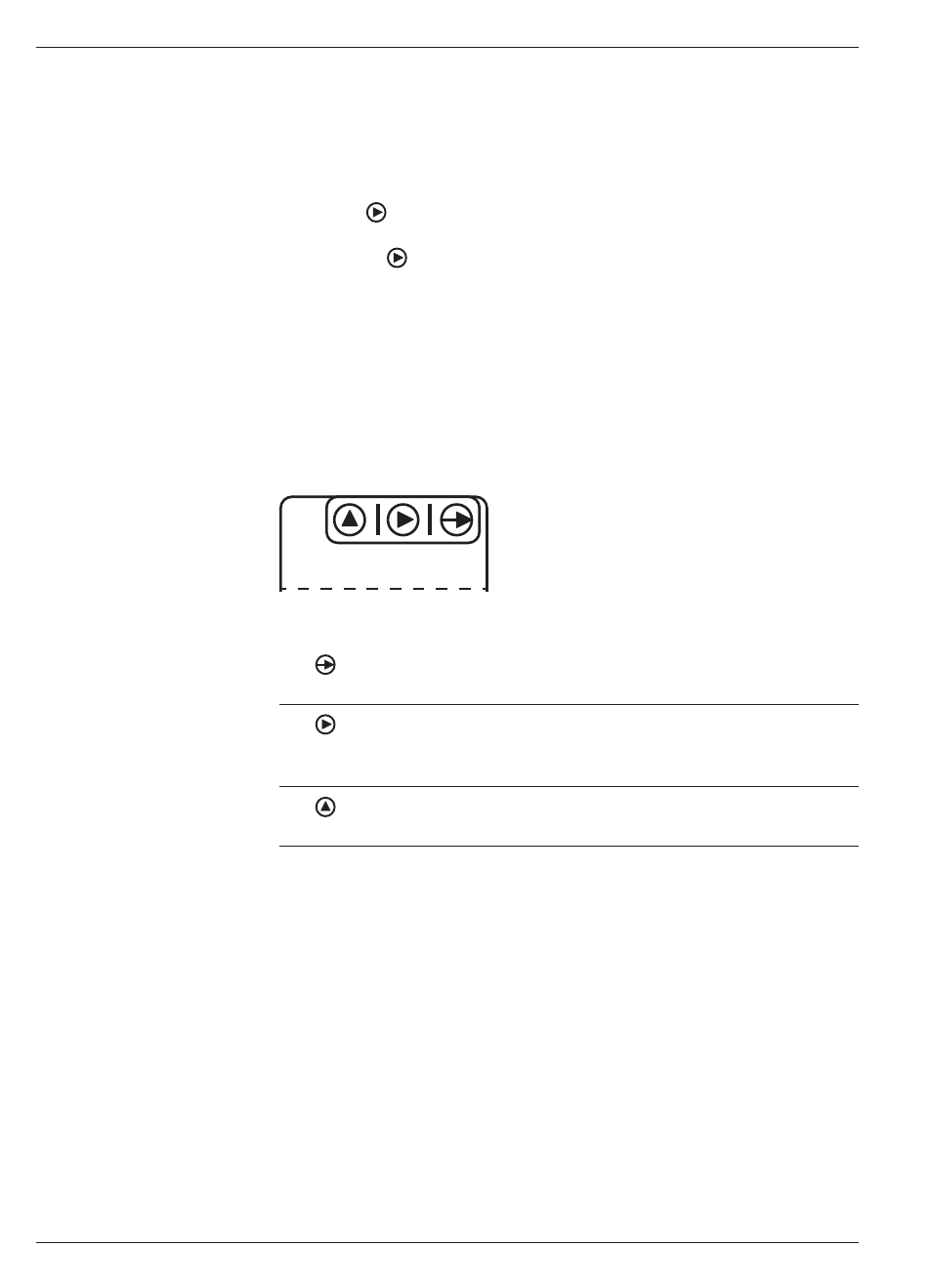

Keypad
(view from below)
Key functions
Key
Access programming level and select programming line.
Key
Select functionality or decade in the programming line. The selected
digit is flashing.
Key
For incrementing of selected decades.
