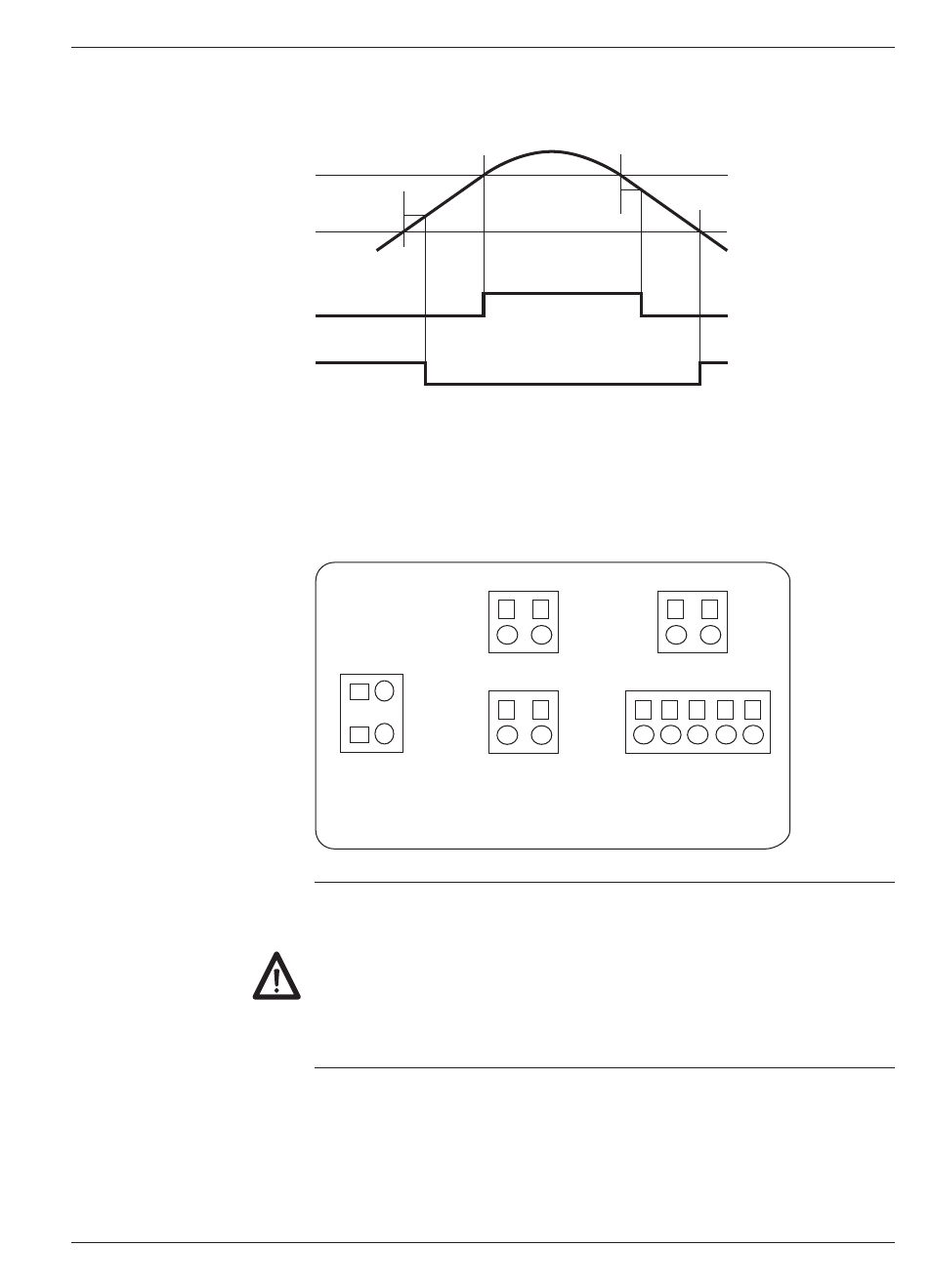

Asymmetrical hysteresis
Hysteresis is configured in display units from 0 to 9999 and only
effective at limit output power off.
Hysteresis
Hysteresis
Relay 1 =
HIGH
Relay 2 =
LOW
Limit 1
Limit 2
3 Connection
This chapter is about terminal assignment and will present some
swiring examples.
3.1 Terminal assignment
6XSSO\YROWDJH
,QSXWV
5HOD\RXWSXW6(7 5HOD\RXWSXW6(7
56
9
$& QF
7['5['
7['5['
,PSXOVH
LQSXW
6HQVRU
&RPPRQ
Litz contact only by means of connector sleeves with insulating
enclosures for reasons of shock protection according to EN 61010.
Do not otherwise assign contacts that have been left unassigned ex
factory. We recommend to screen all sensor terminal leads and to
ground the shield on one side. Shields on both sides are recommen-
ded in case of RF interference or in case of equipotential bonding
over long distances. The sensor leads should not be in the same
phase winding as the mains supply and the output contact leads.
