Edge Lighting Dot LED User Manual
Dot led round & square, Installation instructions for, Recessed mount installation

Installation Instructions for
DOT LED Round & Square
904-DOT-02
Recessed Mount Installation
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2012 Edge Lighting. All Rights Reserved.

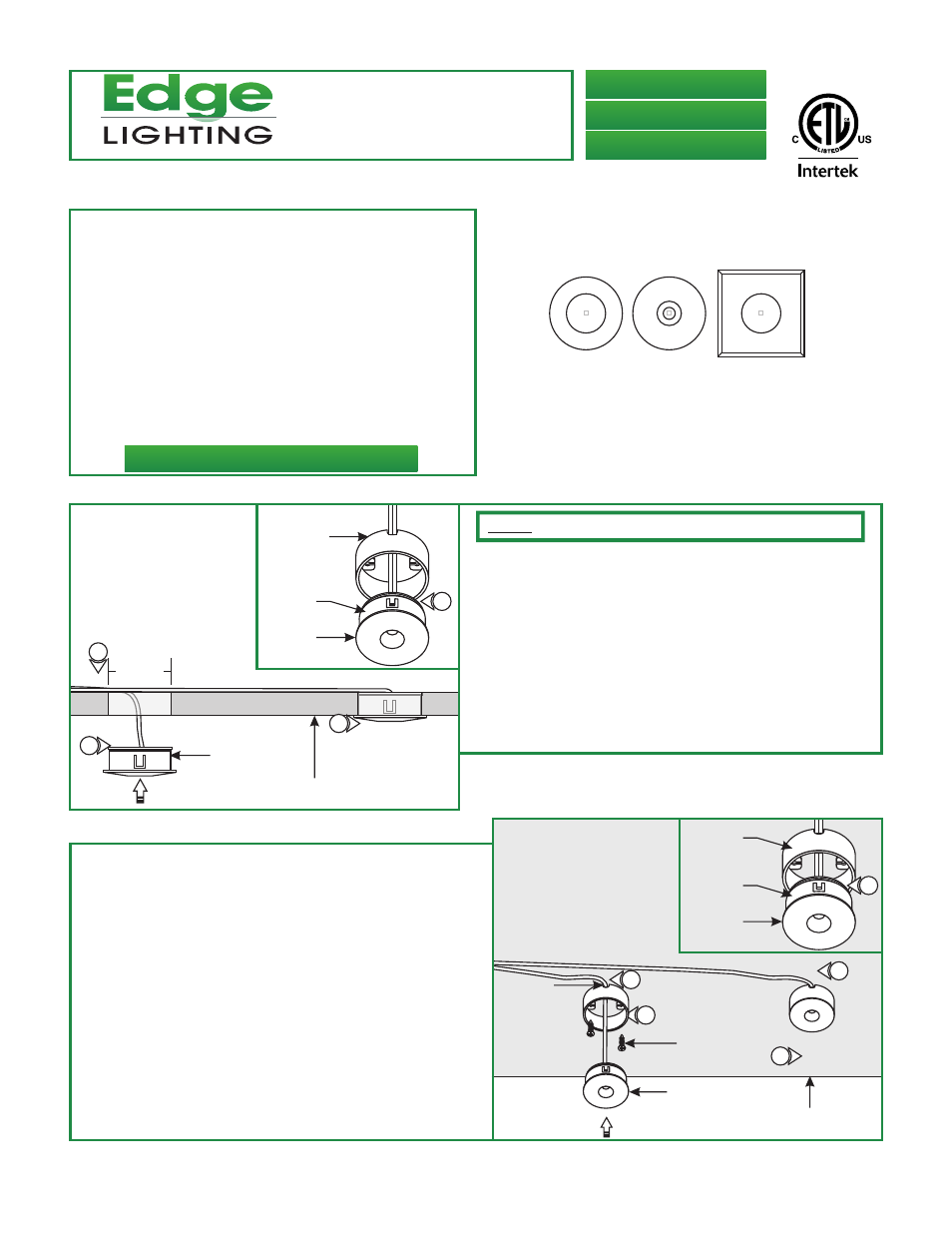

1: Remove the mounting ring and discard it.
2: Mark the location where the Dot LED light is going to be
recessed.
3: Drill out the marked location with a 1-1/8" circular saw.
4: Feed the Dot LED light wires through the cut out hole and
snap the Dot LED light into the hole.
5: Repeat the steps 1 through 4 for the remaining Dots and
then follow the "Power the Dot LED" steps.
A
DOT-RD-1W-30D-30K_
1
SAVE THESE INSTRUCTIONS!
- This product is type IC and can be installed as recessed
(access above the installed location is required)
.
- It is recommended to use the HUB-4P or HUB-8P to power
the Dot Lights.
- This product should be used with a 12VAC TEB-60L-12
power supply when it is to be dimmed with a low-voltage
electronic dimmer or with a 12VDC TEB-60L-12DC power
supply.
- This installation instruction shows typical installation.
- This product is suitable for damp locations and is
inherently protected.
or surface
mount
IMPORTANT INFORMATION
SURFACE
1.14"
(2.9cm)
4
3
Surface Mount Installation
SURFACE
B
NOTCH
NOTE:
Omit the steps below if surface mounting the Dot Lights.
1: Remove the mounting ring.
2: Use the mounting ring as a template to mark the screw
location where the Dot LED light is going to be installed.
3: Use a 1/16" drill bit to drill pilot holes on marked locations.
4: Feed the Dot LED wires through the mounting ring. Hold
the cord against the notch on the mounting ring while
installing the mounting ring to the pilot holes with the
provided two Phillips screws.
5: Pull the cord through the notch on the mounting clip and
snap the Dot LED light into the mounting ring.
6: Repeat the steps 1 through 5 for the remaining Dots and
then follow the "Power the Dot Lights" steps.
DOT LED
MOUNTING
RING
4
PHILLIPS
SCREW
5
6
DOT LED
DOT-RD-1W-90D-30K_
DOT-SQ-1W-30D-30K_
SPRING
CLIP
5
1
MOUNTING
RING
DOT LED
SPRING
CLIP
1
4
DOT LED
3028534
