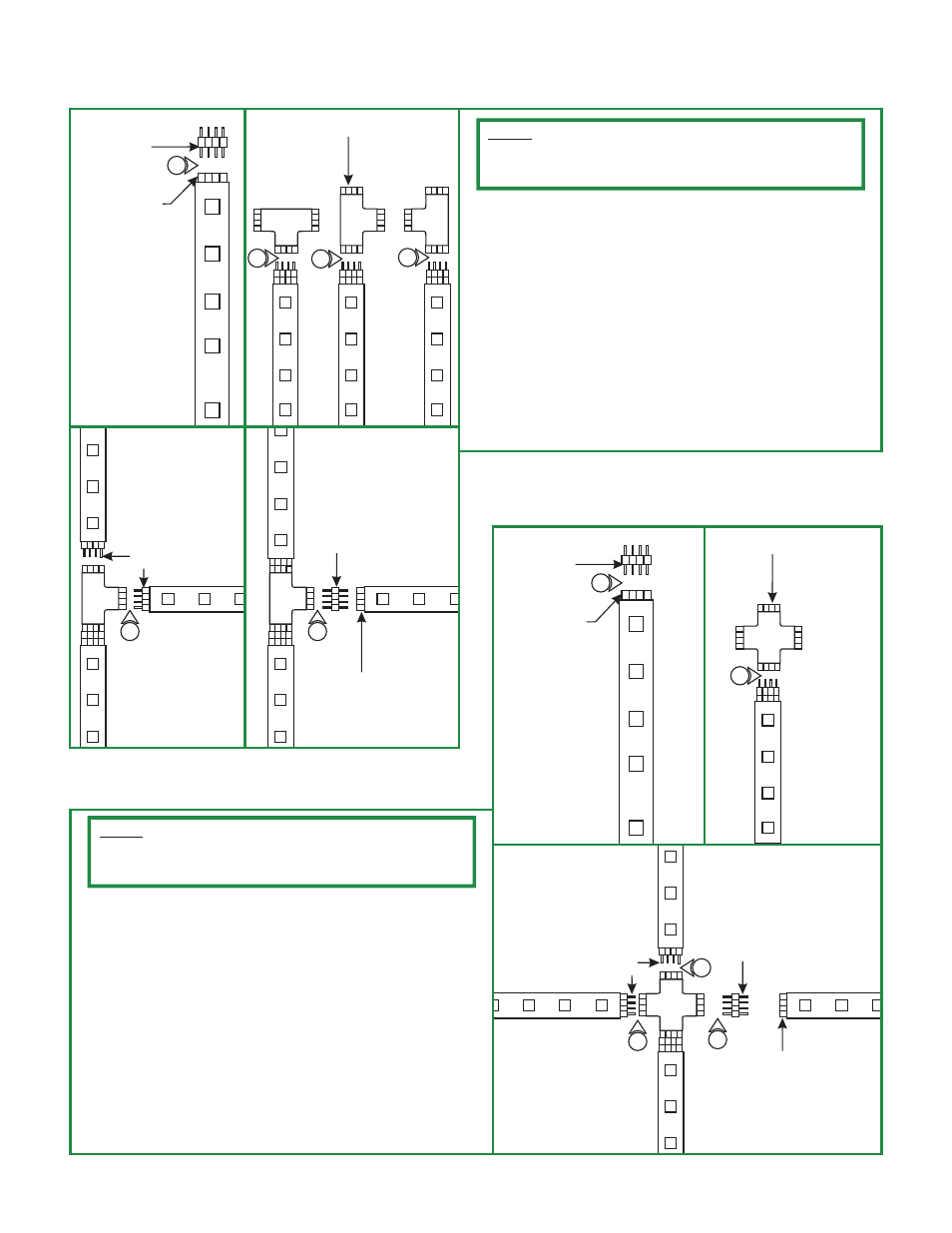

Installing the "T" Connector Soft Strip
B
1: Push one of the male joiners (provided with the "T"
connector) into the female end of the Soft Strip.
2: Based on the direction of the next two Soft Strips, connect
one end of the "T" connector onto the male joiner.
3: Connect the male end of the other Soft Strips into the ends
of the "T" connector.
4: In case one of the two Soft Strips does not turn on, then
disconnect and reconnect the other end (female end) to the
"T" connector by using the additional male joiner.
5: Refer to the Soft Strip instructions to complete the
installation.
NOTE: Before removing the backing and applying the Soft Strips
to the desired surface, connect them to the "T" directional
connector making sure all Soft Strips light up as explained in the
steps below.
1
MALE
JOINER
FEMALE END OF
THE SOFT STRIP
"T" CONNECTOR
2 2 2
3 4
MALE END OF
THE SOFT STRIP MALE JOINER
FEMALE END OF
THE SOFT STRIP
Installing the "X"
Connector
Soft Strip
C
1
MALE
JOINER
FEMALE END OF
THE SOFT STRIP
"X" CONNECTOR
2
3
MALE END OF
THE SOFT STRIP
1: Push one of the male joiners (provided with the "X"
connector) into the female end of the Soft Strip.
2: Connect one end of the "X" connector onto the male joiner.
3: Connect the male end of the other three Soft Strips into the
ends of the "X" connector.
4: In case one of the three Soft Strips does not turn on, then
disconnect and reconnect the other end (female end) to the
"X" connector by using the additional male joiner (provided
with the "X" connector).
5: Refer to the Soft Strip instructions to complete the
installation.
NOTE: Before removing the backing and applying the Soft Strips
to the desired surface, connect them to the "X" directional
connector making sure all Soft Strips light up as explained in the
steps below.
MALE JOINER
FEMALE END OF
THE SOFT STRIP
4
3
