SS-CFX-_
Installation Instructions for
Flexible Connector
904-SS-CFX-01
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2012 Edge Lighting. All Rights Reserved.
SAVE THESE INSTRUCTIONS!
IMPORTANT INFORMATION
- These products are ETL Listed for indoor locations.

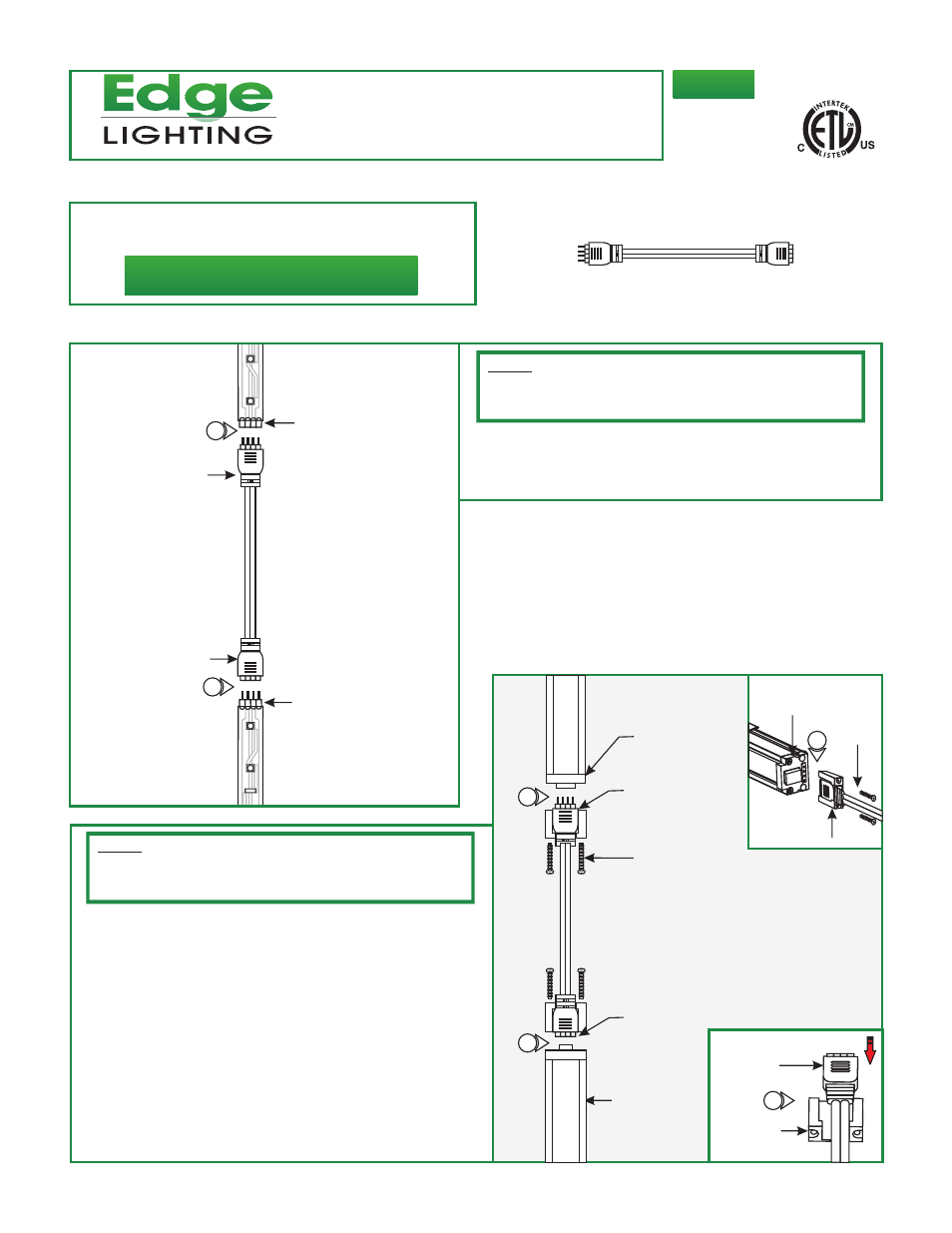

Installing the Flexible Connector to Soft Strips
A
1:
Flexible connector. Refer to the installation provided to
the installation instruction provided with the Soft Strip to
complete the installation.
Simply connect the proper side of the Soft Strip to the
NOTE:
The female end of the Flexible connector plugs into male
end of the Soft Strip and the male end plugs into female end of a
Soft Strip. Make sure this fits to the design before Installing the
Soft Strips and Flexible connector.
MALE END OF
THE SOFT STRIP
FEMALE END OF
THE SOFT STRIP
1
1
B
Installing the Flexible
Connector to Light Channel
LIGHT CHANNEL
POWER END CAP
3
3
1: For each Light Channel, remove the bottom two screws of
the end that is going to be connected to the Flexible
connector.
2: Place the Flexible connectors ends into the cord grips
(provided with the Light Channel).
3: Push the each Light Channel onto the one end of the Flexible
connector. Tighten the cord grip to the end of the Light
Channels with the two Phillips screws (provided with the cord
grips).
4: Refer to the installation instructions provided with the Light
Channel to complete installation.
1
CORD GRIP
FLEXIBLE
CONNECTOR
POWER
END CAP
SCREW
CORD GRIP
1
NOTE:
The female ends of the Flexible connector plug into male
end of the Light Channel and the male end plugs into female end
of a Light Channel. Make sure this fits to the design before
Installing the Light Channels and Flexible "T" connector.
2
SCREW
LIGHT CHANNEL
FEMALE END OF
THE FLEXIBLE
CONNECTOR
MALE END OF
THE FLEXIBLE
CONNECTOR
MALE END OF
THE FLEXIBLE
CONNECTOR
FEMALE END OF
THE FLEXIBLE
CONNECTOR
