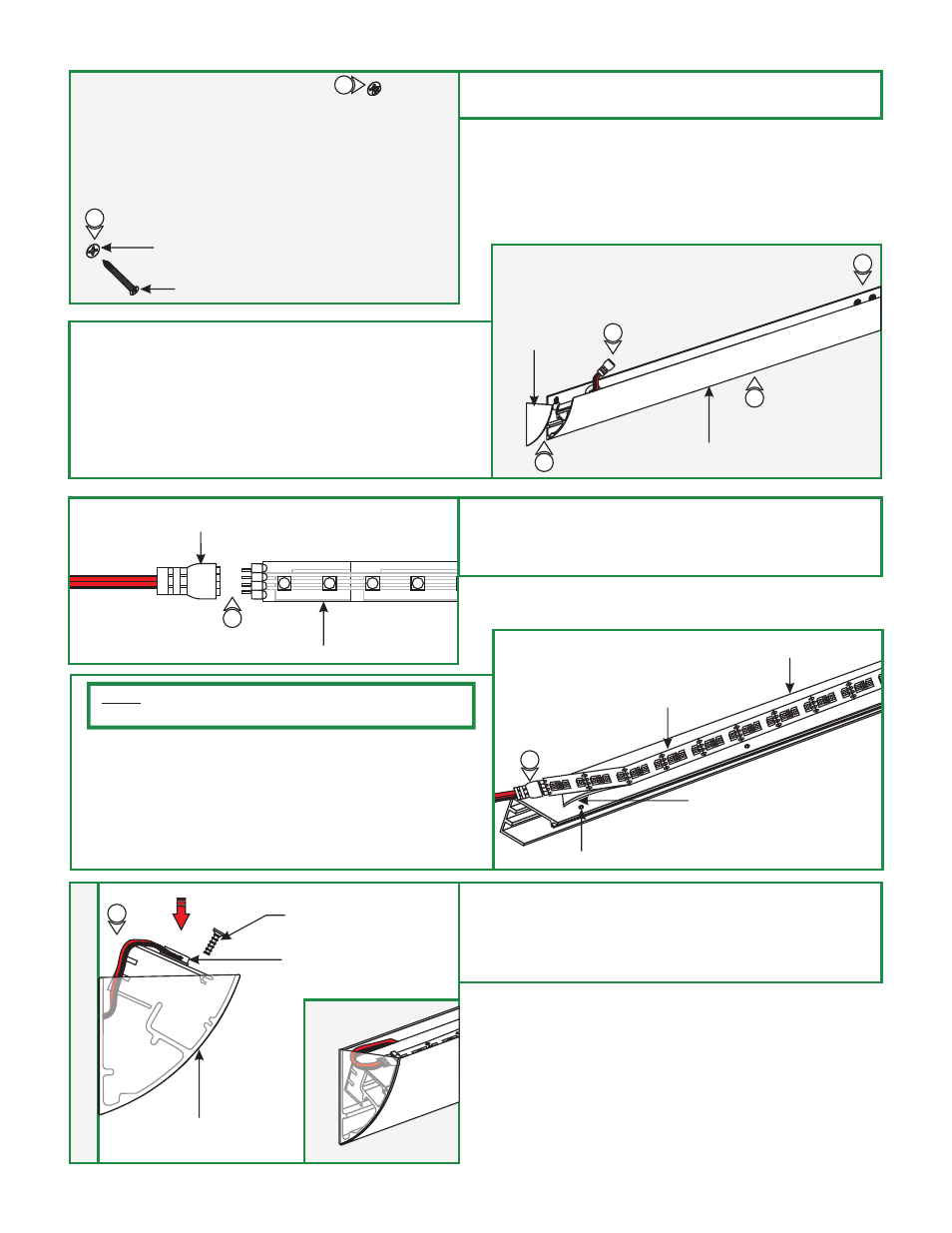

Edge Lighting Soft Strip Cove Square System - Manual (Page 2)

2
D
WALL
5: Feed the power wire into the Soft Strip Cove conduit hole.
6: Hang the Soft Strip Cove keyholes onto the exposed screws.
7: Tighten the #8 screws completely to the secure the Soft
Strip Cove in place.
8: Align and place the end caps to the ends of the Soft Strip
Cove and tighten the screws.
5
6
F
10: Clean the area thoroughly on the channel bracket where
the soft strip LED will be installed.
11: Remove the backing from the soft strip LED and firmly
press down making sure there are no air bubbles that can
cause surface irregularities. NO NOT INSTALL SOFT
STRIP OVER THE CHANNEL BRACKET MOUNTING
HOLES.
NOTE: Avoid bending the soft strip in sharp horizontal angles
which may damage the LEDs. Use the proper power connectors.
CHANNEL BRACKET
SOFT STRIP
11
+24VDC
MOUNTING HOLE
7
SOFT STRIP COVE
ENDCAP
8
C
WALL
4: Tighten (not completely) the #8 screws into the anchors
leaving the head unscrewed for 1/8".
ANCHOR
#8 SCREW
4
4
9: Align the LED soft strip power wires so that the solid red
wire of the power feed pin connects to 12VDC or 24VDC soft
strip pin. The red/black wire will automatically be connected
to the other pins.
E
SOFT STRIP
12VDC
SOFT STRIP POWER
WIRE FEMALE END
9
PAPER BACKING
G
12: Lower the channel bracket into the Soft Strip Cove and
secure by tightening the Phillips screws.
13: Refer to the power supply instructions to connect the soft
strip wires to power supply.
LED SOFT STRIP
12 PHILLIPS SCREW
SOFT STRIP COVE
