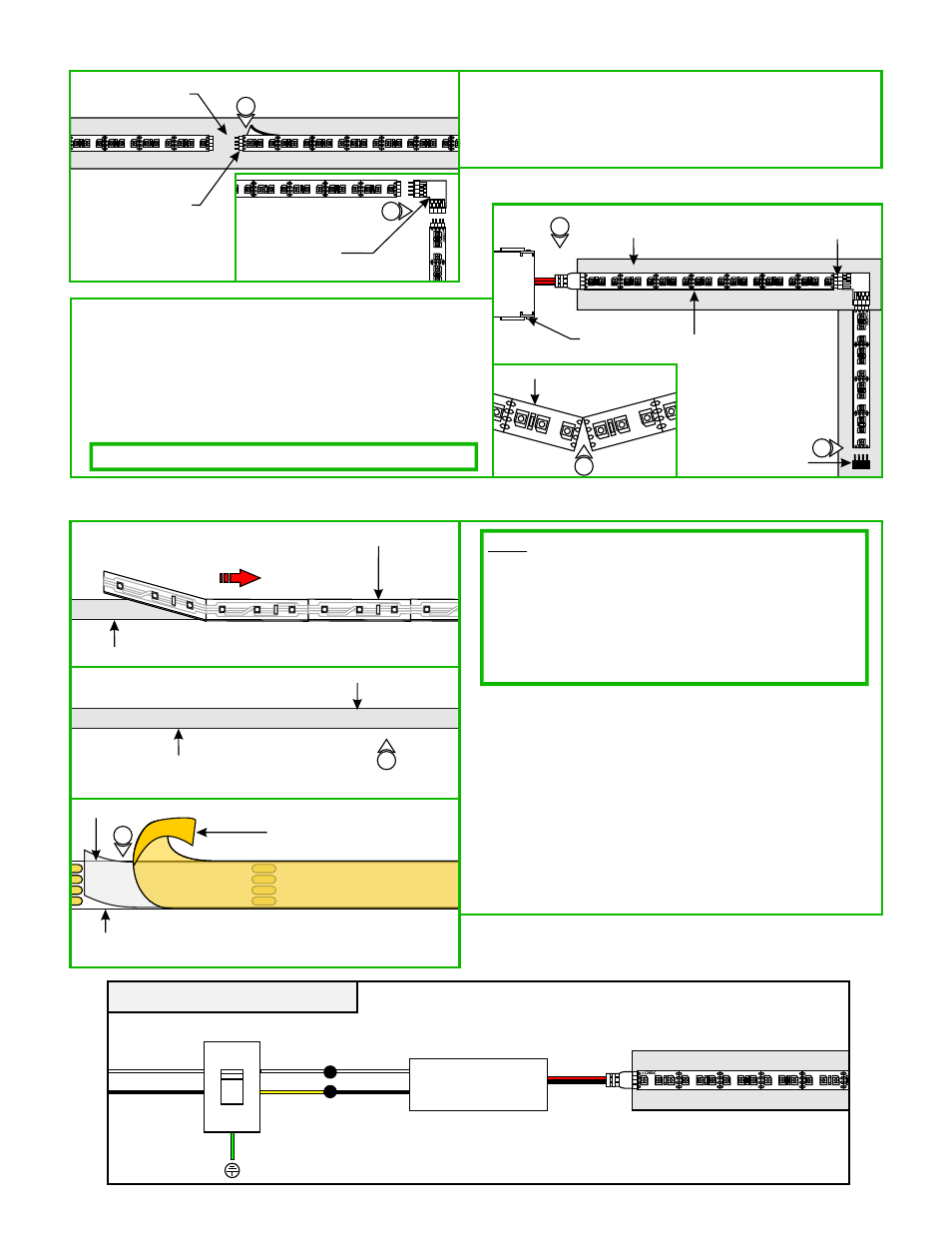

Edge Lighting SS2P Soft Strip 2.3W, 12V High Output - Manual (Page 2)

+12VDC
2
E
ALUMINUM TAPE 11
LED SOFT STRIP
POWER
SUPPLY
DIRECTIONAL
CONNECTOR
END CAP
D
7: Add the other piece of soft strip by simply connecting female
end of the soft strip to the male end of the new soft strip
directly or with interfacing of the directional connectors.
8: The 1" long soft strips can be used for fine adjustments.
FEMALE END OF
SOFT STRIP
MALE END OF
SOFT STRIP
7
DIRECTIONAL
CONNECTOR
7
9: Use the optional end cap to cover the end of the soft strip.
10: The excess amount of soft strip can be cut by the indicated
sections of the run with a pair of scissors. Once the soft
strip is cut, it cannot be extended.
11: Install the power supply by referring to the instructions
provided with the power supply.
NOTE: SS2 soft strip consumes on average 2.3 Watt per foot.
+12VDC +12VDC
9
+12VDC 9
10
+12VDC
SOFT STRIP
F
1: To remove the tape residue from back of the strip apply
moderate amount WD-40, or Goo Gone, or a mixture of
warm water and lemon oil to the corner of a clean, dry
towel. Gently buff the area containing the adhesive residue
with small circular motion until it is completely removed.
2: From one side of the tape gently remove a few inches of the
backing. Attach the adhesive tape to the back of the soft
strip and apply moderate pressure to affix the tape. Continue
this step a few inches at the time until the entire adhesive
tape is attached to back of the soft strip.
3: Refer to the steps on 1 through 11 to reinstall the soft strip.
NOTE: If relocating the installed soft strip, make sure that the
adhesive tape on back of the soft strip covers the entire strip. The
adhesive tape on back of the soft strip isolates the strip from the
conductive heat sinks. Damaged or inconsistent adhesive tape may
cause the contacts on the back of the strip to come in contact with
the conductive heat sink which will cause the strip to short and
burn. Call Edge Lighting to get replacement adhesive tape and
aluminum heat sink tape (SS-HR-F)
SOFT STRIP
ADHESIVE TAPE
REMOVE SOFT STRIP
TO RELOCATE
APPLY ADHESIVE REMOVER
AND THEN BUFF OFF
ADHESIVE TAPE
ADHESIVE BACKING
ADHESIVE
BACK SIDE OF
SOFT STRIP
1
2
Relocating Soft Strip (Optional)
LED SOFT STRIP
BLACK
POWER SUPPLY
ELV DIMMER OR SWITCH
WHITE 120V NEUTRAL
120V HOT YELLOW
Overall Wiring Diagram
