Edge Lighting Frame - Manual (Page 2)

2

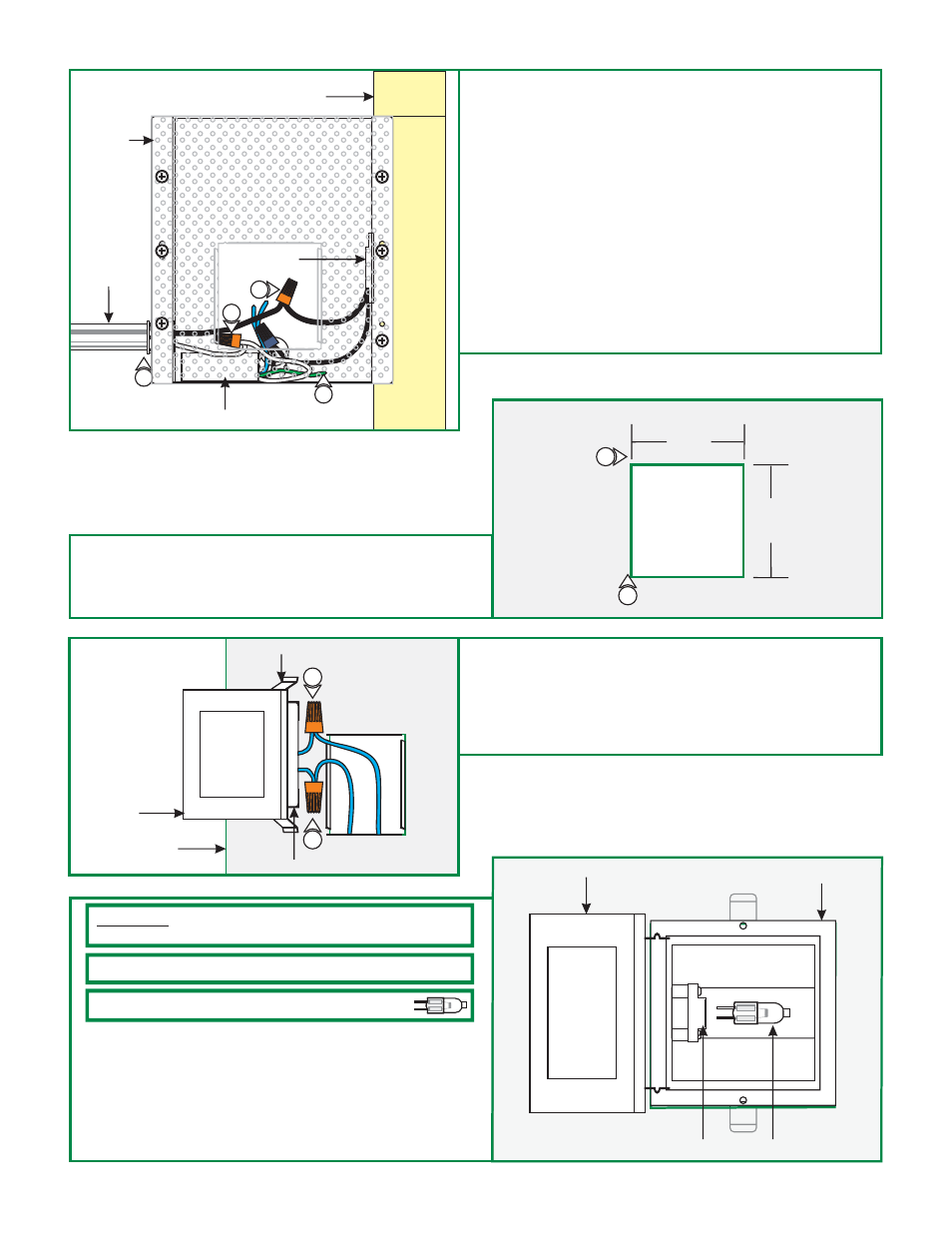

6: Remove a knock out to install the power line conduit.
7: Install the conduit and run the power line wires to the
housing.
8: Make sure that the housing is grounded in accordance with
local electrical codes.
9: Connect the white transformer wire to the neutral power
line wire with a wire nut.
10: Connect the black thermal protector wire to the hot power
line wire with a wire nut.
11: The black transformer wire is connected by default to the
other wire of the thermal protector.
B
STUD
TRANSFORMER
CONDUIT
Install Drywall, Trim & Lamp
C
3.2"
2
1
1: Mark 3.2" square(s) on drywall where the housing opening is
(are) located.
2: Cut out the marked square(s) and install the drywall.
3: After installing drywall and finishing it, connect each wire
coming out of the housing opening to one trim wire with a
wire nut.
4: Place all wires inside the housing and gently push the trim
into the housing opening by squeezing the springs clips.
D
DRYWALL
TRIM
COVER
THERMAL
PROTECTOR
7
10
9
HOUSING
8
SPRING CLIP
3
3
3.2"
10: Carefully pull the trim cover out of the housing to expose
the socket.
11: Push the lamp pins completely into the socket assembly
holes.
12: Replace and push the trim cover back into the trim housing
until it snaps into place.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 20 Watt Bi-Pin Halogen Lamp.
NOTE: Use only fingers and a soft cloth to install the lamps.
E
TRIM COVER
TRIM HOUSING
LAMP SOCKET
