C
FIXTURE BODY
2MM ALLEN WRENCH
CANOPY
M4 SET SCREW
7
7

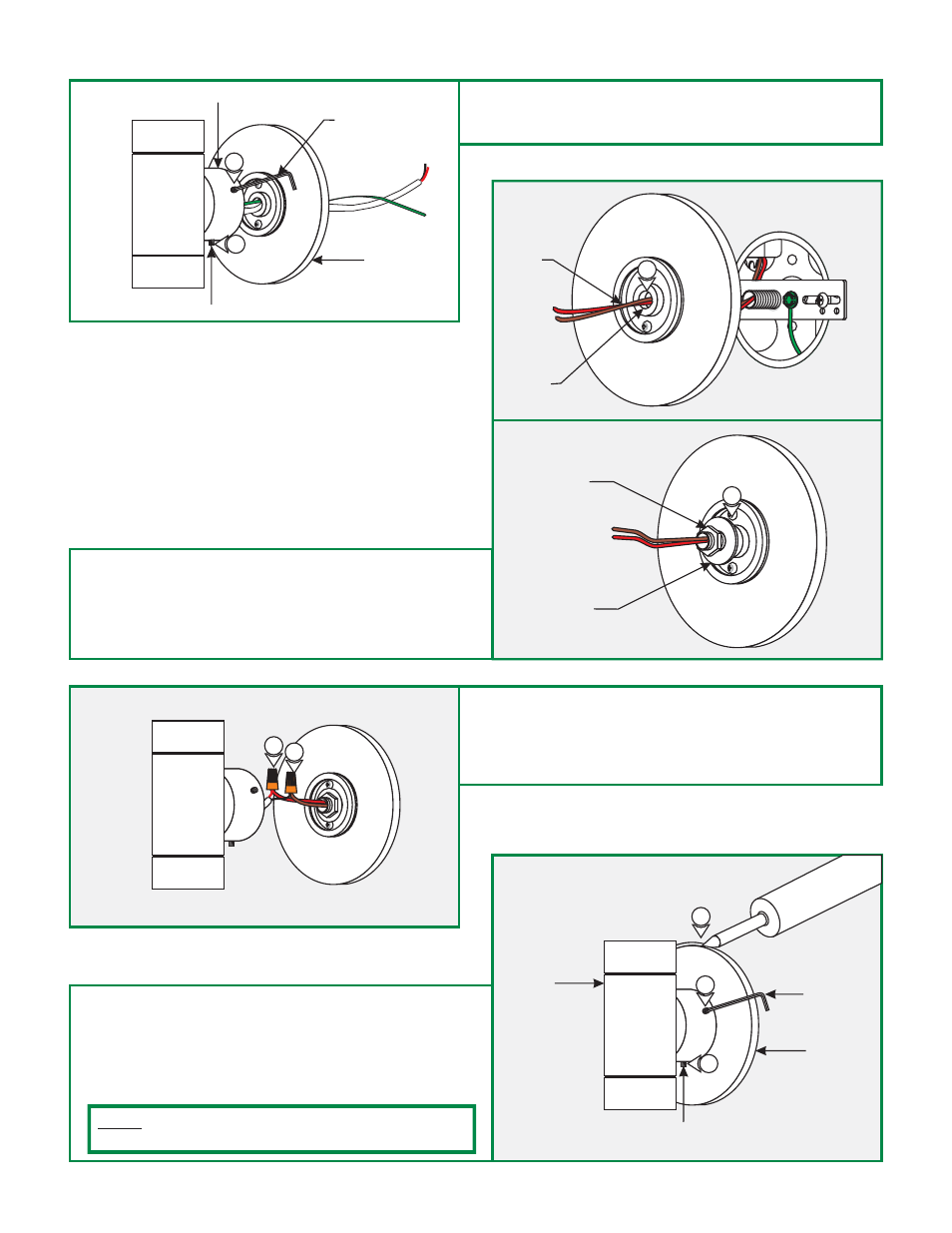

7: Loosen the two M4 set screws on the fixture body (Do
Not Remove) with the provided 2mm Allen wrench and
carefully pull the canopy off of the fixture body.
E
10: Connect the red fixture wire to the red LED driver wire (+)
with a wire nut.
11: Connect the black fixture wire to the brown LED driver wire
(-) with a wire nut.
F
2MM ALLEN
WRENCH
M4 SET SCREW
12
12
2
FIXTURE
BODY
12: Place all wires and wire nut connections inside the fixture
body. Slide the fixture body completely onto the canopy and
tighten the two M4 set screws with the 2mm Allen wrench.
13: For installation in wet location, caulk around the fixture
canopy with waterproof construction sealant.
NOTE: The fixture contains two 3 watt integrated LED lamps.
These lamps are rated for 40,000 hours.
13
8: Feed the LED brown and red driver wires through the canopy
center hole, washer, and nut provided.
9: Slide the canopy back onto the crossbar assembly nipple
(make sure the gasket is in place) and secure the canopy to
the crossbar assembly by tightening the nut.
D
8
CANOPY
CENTER HOLE
LED DRIVER
WIRE
9
NUT
WASHER
CANOPY
10
11
