Installation Instructions for
Taos Square
904-TAOS-W-SQ-LED-06
SAVE THESE INSTRUCTIONS!
- This product is for indoor and outdoor locations.
- RISK OF FIRE:
- This product is for wall mount applications only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product is not dimmable.
This product must be installed 4 ft above
the ground for wet locations.
IMPORTANT INFORMATION

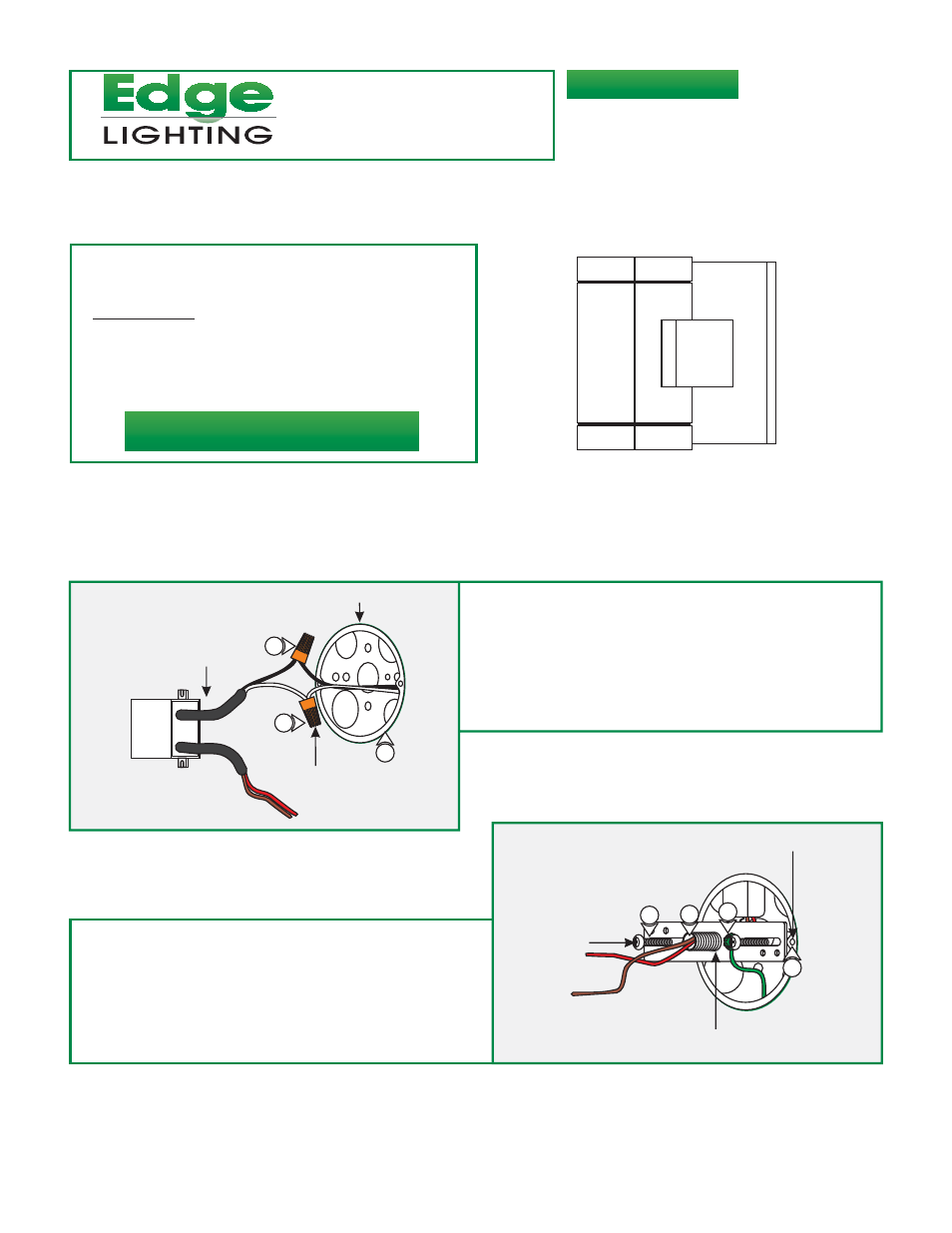

Install the Fixture
1
TAOS-W-SQ-LED-_
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2010 Edge Lighting. All Rights Reserved.
1: Connect the white (NEUTRAL) LED driver wire to the neutral
power wire with a wire nut.
2: Connect the black (HOT) LED driver wire to the hot power
wire with a wire nut.
3: Place the LED driver and wire nut connections inside the
electrical box.
A
WIRE NUT
ELECTRICAL BOX
1
#8-32 SCREW
CROSSBAR ASSEMBLY
CENTER HOLE
ELECTRICAL BOX HOLE
B
4: Mount the crossbar assembly to the electrical box holes with
the provided #8-32 screws.
5: Feed the brown and red LED driver wires through the
crossbar assembly center hole.
6: Make sure the crossbar assembly is grounded in accordance
with local electrical codes.
6
4
5
6
LED DRIVER
3
2
