Edge Lighting Mr. Square - Manual (Page 3)

3
G
14
15

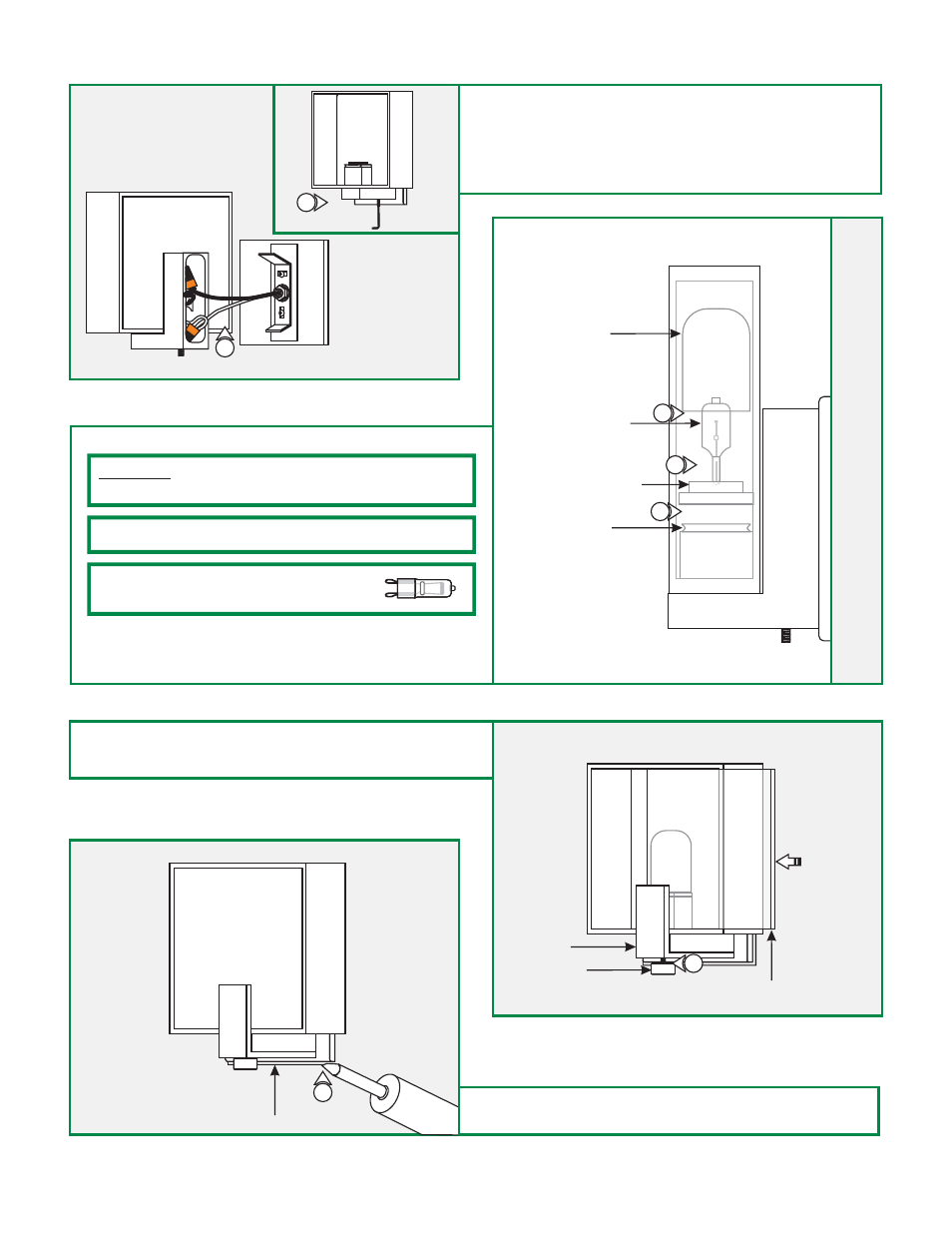

14: Place all wires and wire nut connections inside the fixture
body.
15: Slide the fixture body completely onto the canopy bracket
and tighten the M4 set screw on the bottom of the fixture
with the 2mm Allen wrench to secure.
H
16: Place the metal socket cover over the socket.
LAMP SHIELD
LAMP
METAL SOCKET COVER
SOCKET
17: Push the lamp pins completely into the socket holes.
18: Place the lamp shield over the lamp.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 40 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp.
NOTE: Use only fingers and a soft cloth to install the lamps.
18
17
16
I
"L" BRACKET
THUMB SCREW
GLASS COVER
19
19: Replace the glass cover onto front of the fixture. Replace
the "L" bracket and thumb screw to secure the glass cover
in place.
J
20
SEALANT
20: For installation in wet location, caulk around the fixture
canopy with waterproof construction sealant.
