Edge Lighting Greta - Manual (Page 3)

3

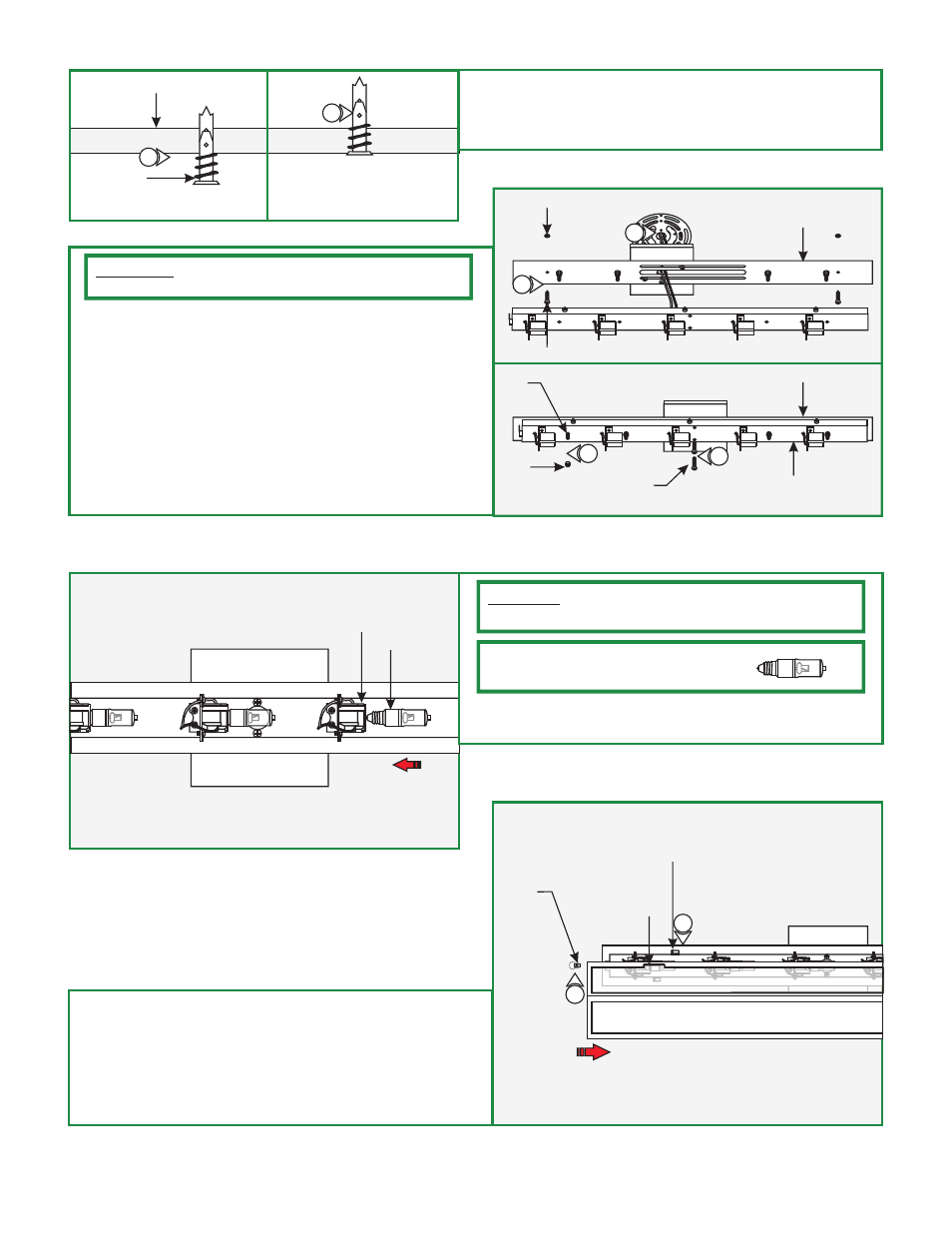

9: Remove the backplate from the wall and tap the anchors on
the marked points up to the threaded portion with a
hammer. Screw in the threaded portion of the anchors with
a Phillips screwdriver. WALL
9
ANCHOR
(NOT PROVIDED)
G
10: Place all wires and wire nut connections through the
crossbar center hole properly inside the electrical box.
11: Secure the ends of the backplate to the anchors with the
two #8 screws.
12: Slide the socket plate holes onto the backplate threaded
studs and secure it in place by tighten the four thumb nuts.
13: Tighten the two #8-32 screws through the backplate holes
into the crossbar inner threaded holes to secure the fixture
in place.
WARNING: When Mounting Greta vertically, the socket must
face down to avoid heat build up, damaging the socket.
H
BACKPLATE
#8-32
SCREW
10
ANCHOR
#8 SCREW
11
BACKPLATE
SOCKET PLATE
THUMB
NUT
THREADED
STUD
12
Install the Lamp & Glass Shade
I
LAMP
SOCKET
1: Using a soft cloth, screw the lamps completely into the
sockets.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 40 Watt Type E11 Base, Halogen
or Xenon Lamp For each Socket.
Use MAX 40 Watt Type E11 Base, Halogen
or Xenon Lamp For each Socket.
13
J
SCREW HEAD
SLOT
2: Align the glass shade slots with the screw heads on the side.
Push the glass shade onto the backplate and slide it down to
lock in place.
3: Secure the glass shade to the backplate by tightening the
Phillips screw. DO NOT OVER TIGHTEN PHILLIPS
SCREW, WHICH MAY CAUSE THE GLASS TO BREAK.
PHILLIPS
SCREW
2
3
9
