3

H

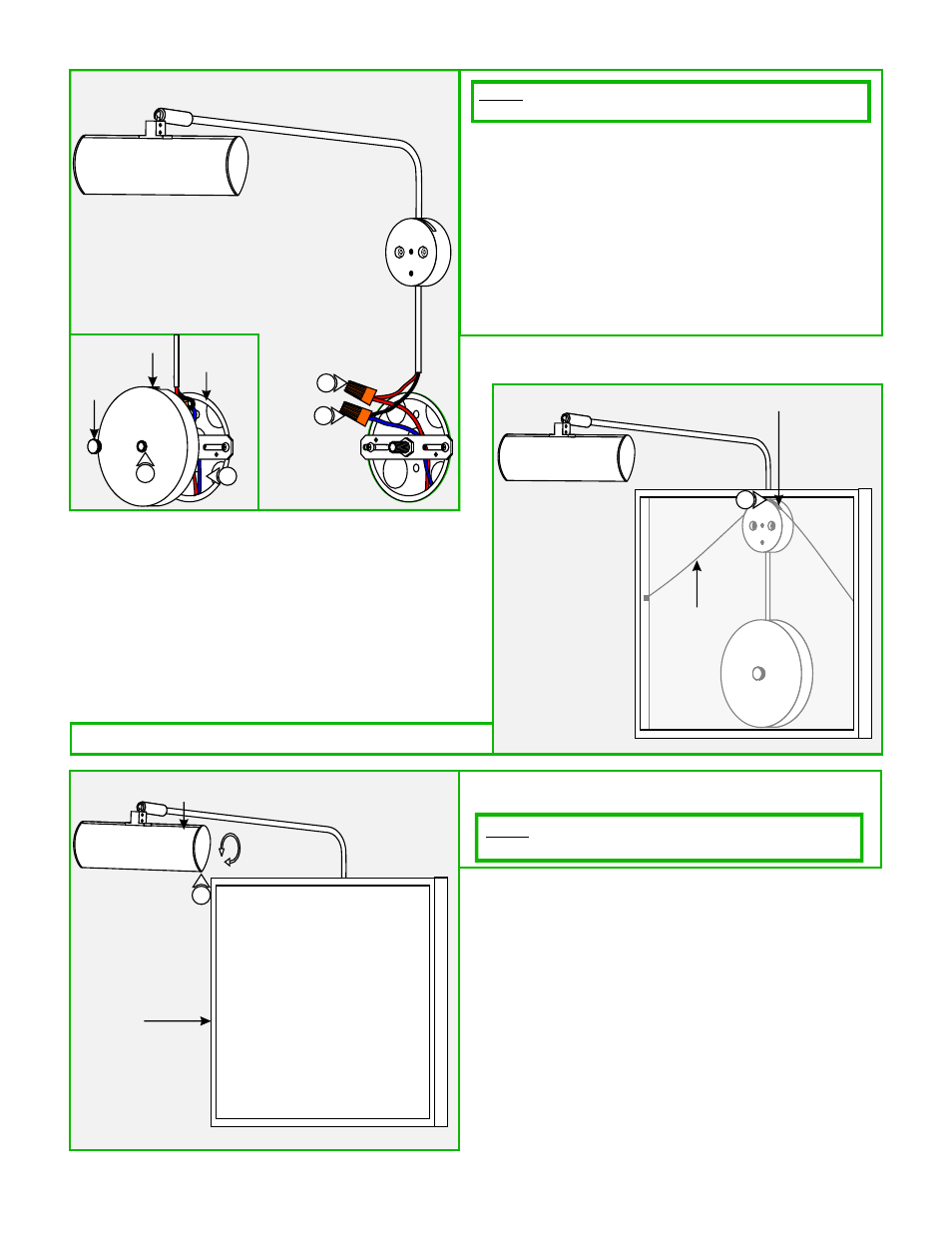

14: Hang the frame cable into the mounting bracket slot.

MOUNTING BRACKET SLOT

I

NOTE:

The Cody2 6" contains 6 watt integrated LEDs. These

LEDs are rated for 50,000 hours.

15: Rotate the fixture head to properly wash the picture with
light.

14

FRAME CABLE

FIXTURE HEAD

15

G

11

11

THUMB
NUT

COVER

13

CUTOUT

12


11: Connect the red LED power supply wire to the red fixture
wire using a wire nut.

12: Connect the blue LED power supply wire to the black
fixture wire using a wire nut.

13: Place the LED power supply and all wire connections inside
the electrical box.

14: Line up the canopy cut out edge with the fixture wires.
Place the canopy onto the electrical box and tighten the
thumb nut to the crossbar assembly nipple.

NOTE: Ensure that power to the junction box has been turned
OFF before beginning any electrical work.
