Edge Lighting Cody LED Picture Light - Manual (Page 3)

3
RIDGED WIRE
1"
SMOOTH WIRE
9
CORD
F

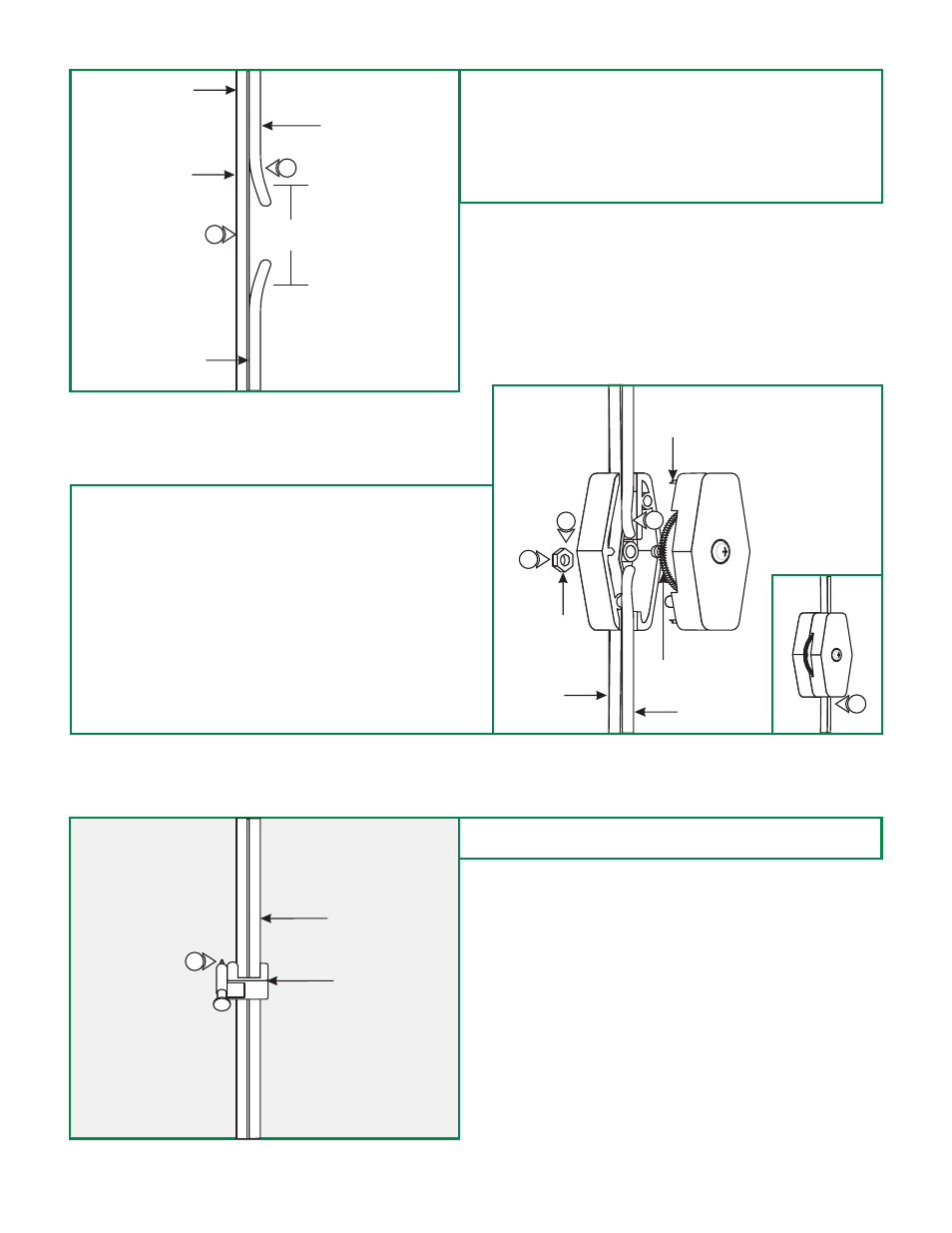

8: Select the location on the cord where the switch will be
installed.
9: With a sharp knife cut about 1" in the cord web. Make sure
not to nick the insulation on either wire.
10: Cut the smooth wire in half.
G
NUT
SMOOTH
WIRE
RIDGED
WIRE
11: Loosen the screw on one side of the switch to remove the
nut from the other side. Separate the two halves from each
other.
12: Place the half of the switch without the wheel onto the cut
portion of the cord. The uncut ridged wire should pass
through the half where the cut wire will be blocked in the
middle. This will ensure the switch connectivity.
13: Replace the half with wheel onto the other half so that the
sharp prongs pierce the insulation of the cut wire.
14: Replace the nut and tighten the screw ensuring that both
halves are mated properly.
CORD WEB
SHARP PRONG
11
13
12
WHEEL
14
H 15: Use the provided cable clips to secure the cord to the
wall, or use a cable cover (not provided)
CORD
CABLE CLIP
15
8
