Edge Lighting Vanilla Sky Round - Manual

SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor dry locations.
- This product is ceiling mounted only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
Installation Instructions for Vanilla Sky Round 14
Fluorescent Version)
(Compact
904-VSKY-RD-14-F1-04
IMPORTANT INFORMATION

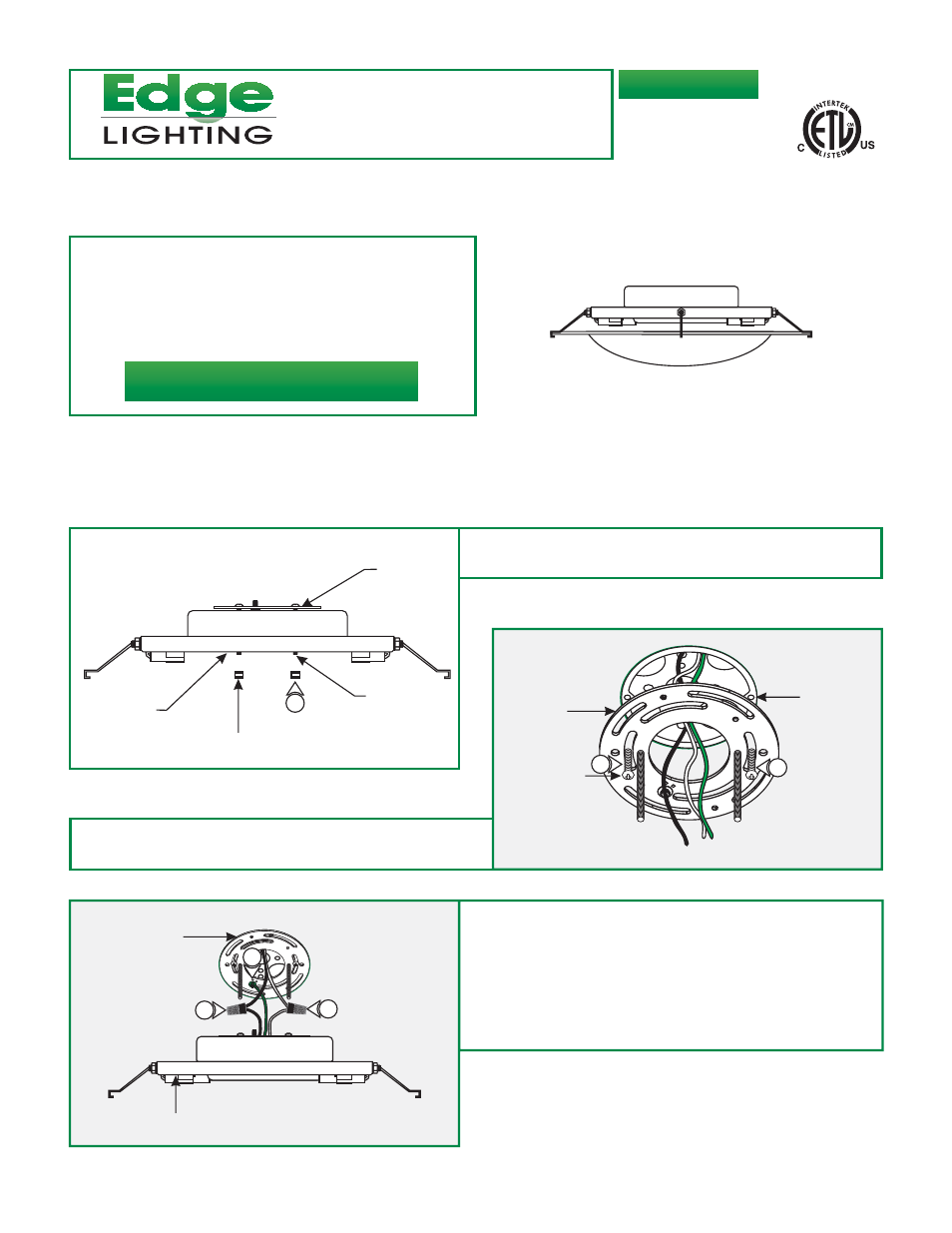

Install the Fixture
1: R
detach the mounting crossbar from the fixture assembly. emove the two thumb nuts from the threaded studs and
2: Mount the mounting crossbar to the electrical box holes with
the two provided #8-32 screws
1
1
A
THUMB NUT
MOUNTING
CROSSBAR
FIXTURE
ASSEMBLY MOUNTING
CROSSBAR
B
#8-32 SCREW
ELECTRICAL
BOX HOLE
2 2
THREADED
STUD
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]
VSKY-RD-14-F1-_
C
4
MOUNTING
CROSSBAR
4 5
FIXTURE ASSEMBLY
3: Make sure that the mounting crossbar is grounded in
accordance with local electrical codes.
4: Connect the white fixture wire to the neutral power wire with
a wire nut.
5: Connect the black fixture wire to the hot power wire with a
wire nut.
© 2009 Edge Lighting. All Rights Reserved.
