Edge Lighting Satin Ceiling User Manual
Disassemble the fixture, Wiring for standard installation, Installation instructions for

1:
2:
two #8-32 screws.
Feed the power wires through the backplate center hole.
Mount the backplate to the electrical box with the provided
Installation Instructions for
Compact Florescent Satin Ceiling 12, 15, & 18
904-SATIN-F1-02
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com

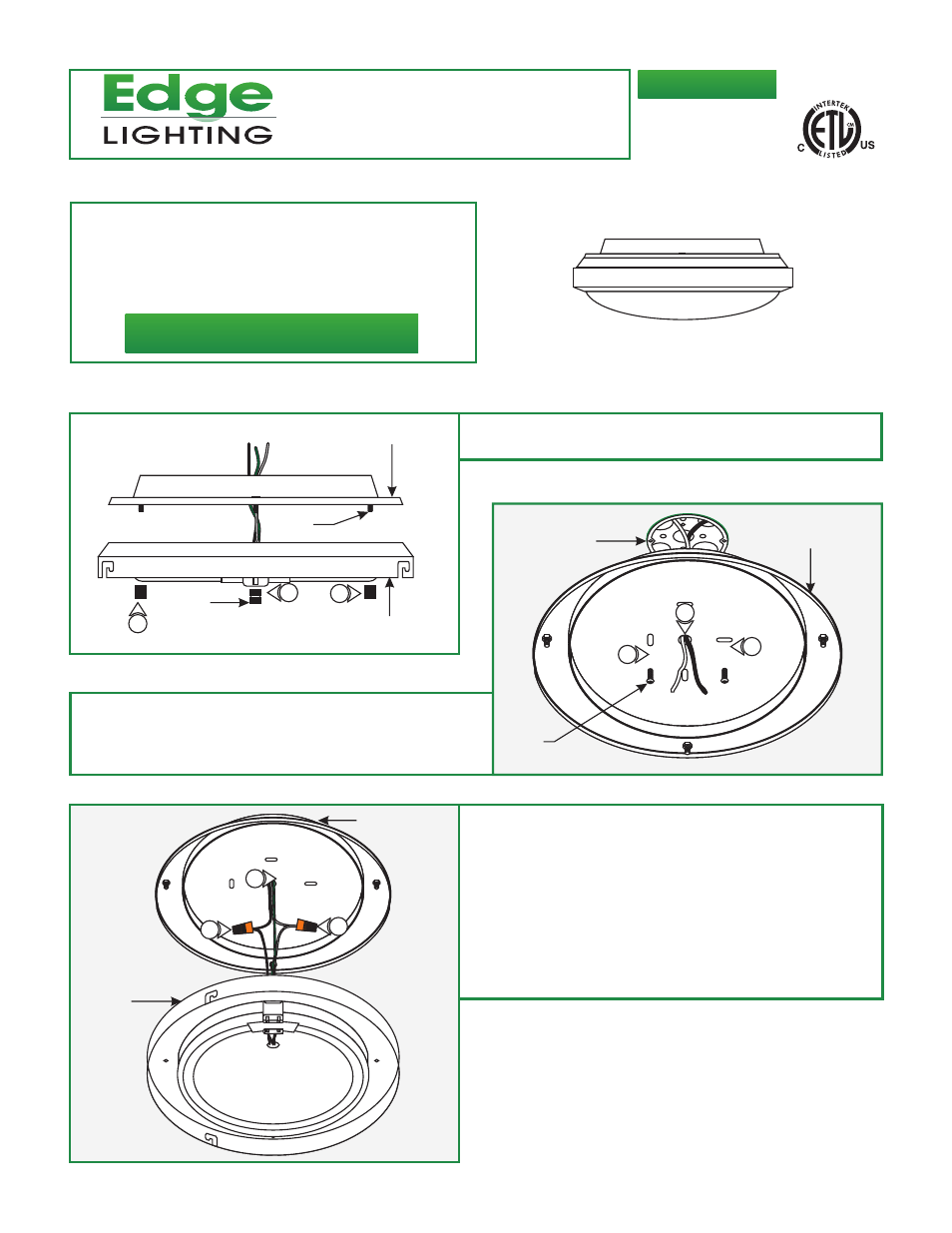

Disassemble the Fixture
1:
detach the backplate from the fixture housing.
Remove the three thumb nuts from the threaded studs and
1
1
A
B
SATIN-_F1_-SN-_
BACKPLATE
ELECTRICAL
BOX
1
2
2
BACKPLATE
FIXTURE HOUSING
THUMB
NUT
THREADED
STUD
1
1
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor dry locations.
- This product is ceiling mounted only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This instruction shows a typical installation.
- This product is not dimmable.
© 2011 Edge Lighting. All Rights Reserved.
#8-32
SCREW
Wiring for Standard Installation
C
BACKPLATE
FIXTURE
HOUSING
4
3
3: Make sure that the fixture is grounded in accordance with
local electrical codes.
4: Connect the white fixture wire to the neutral power wire with
a wire nut.
5: Connect the black fixture wire to the hot power wire with a
wire nut.
6: Follow the "Finish Installation" steps on page 3 to complete
the installation.
5
