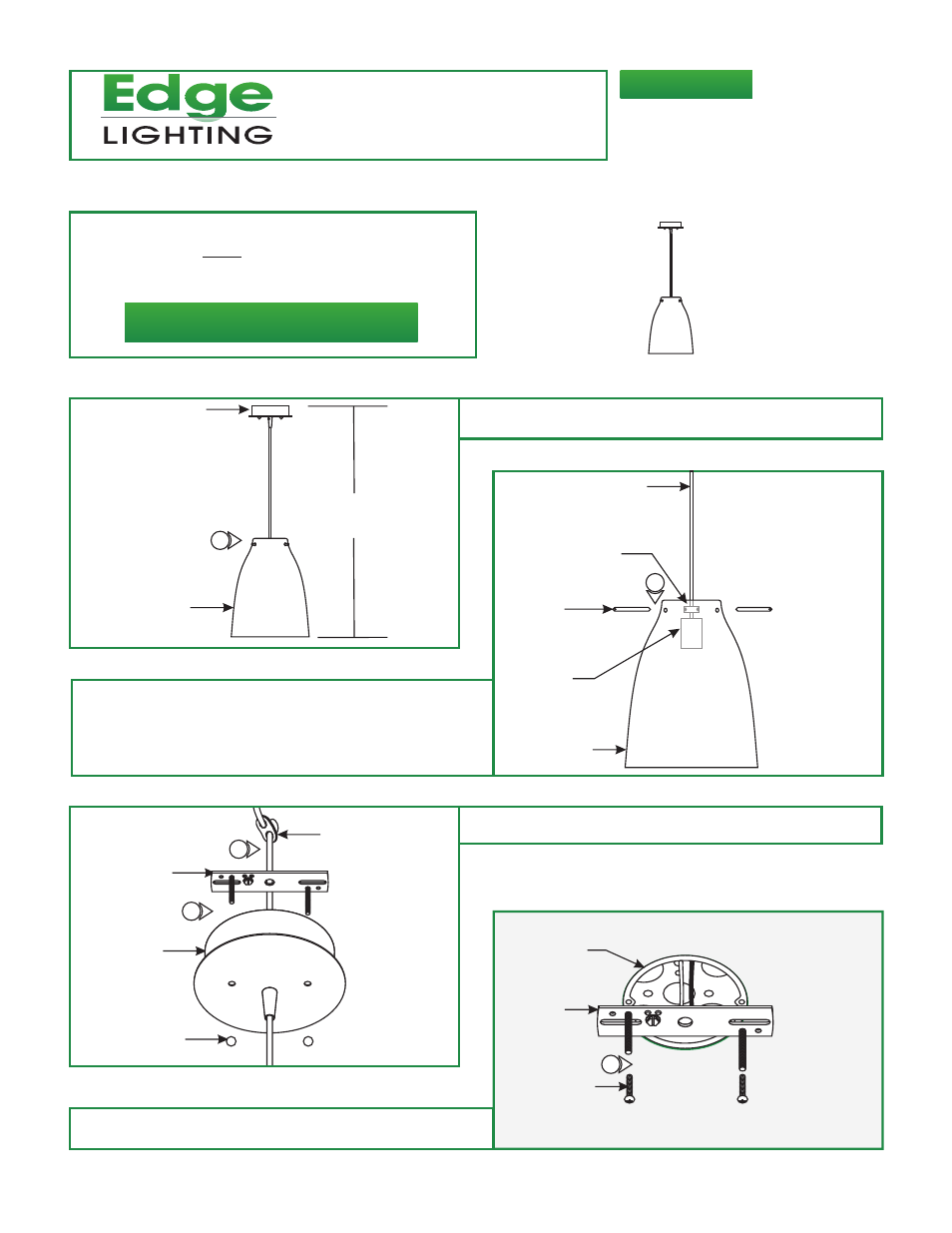

Installation Instructions for
Vessel 10 Glass Suspension
904-VESS-S-10-WHGL-02
SAVE THESE INSTRUCTIONS!
- This product can ONLY be ceiling mounted.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
IMPORTANT INFORMATION
Install the Fixture
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
A
H
CANOPY
1: Determine the desired fixture height (H), from the bottom of
the shade to the top the canopy.
1
1
VESS-S-10-WHGL
© 2013 Edge Lighting. All Rights Reserved.
SHADE
B
2: Place the glass shade completely over the socket assembly.
3: Align the socket hub holes to the glass shade holes.
While holding the glass shade in place, secure it by
tightening the three thumb post.
CORD
SOCKET
SHADE
THUMB
POST
SOCKET HUB
2
C
CANOPY
CROSSBAR
ASSEMBLY
THREADED CAP
CORD CLIP
4
4
4:
and also entangle the cord from the cord clip.
Loosen the threaded caps, to remove the crossbar assembly
D
ELECTRICAL
BOX
#8-32 SCREW
CROSSBAR
ASSEMBLY
5
5: Mount the crossbar assembly to the electrical box holes
with the provided two #8-32 screws.
