Edge Lighting Vessel 10 User Manual
Vessel 10 suspension, Install the fixture, Installation instructions for
Installation Instructions for
Vessel 10 Suspension
904-VESS-S-10-01
SAVE THESE INSTRUCTIONS!
- This product can ONLY be ceiling mounted.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
IMPORTANT INFORMATION
Install the Fixture
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
A
H
CANOPY

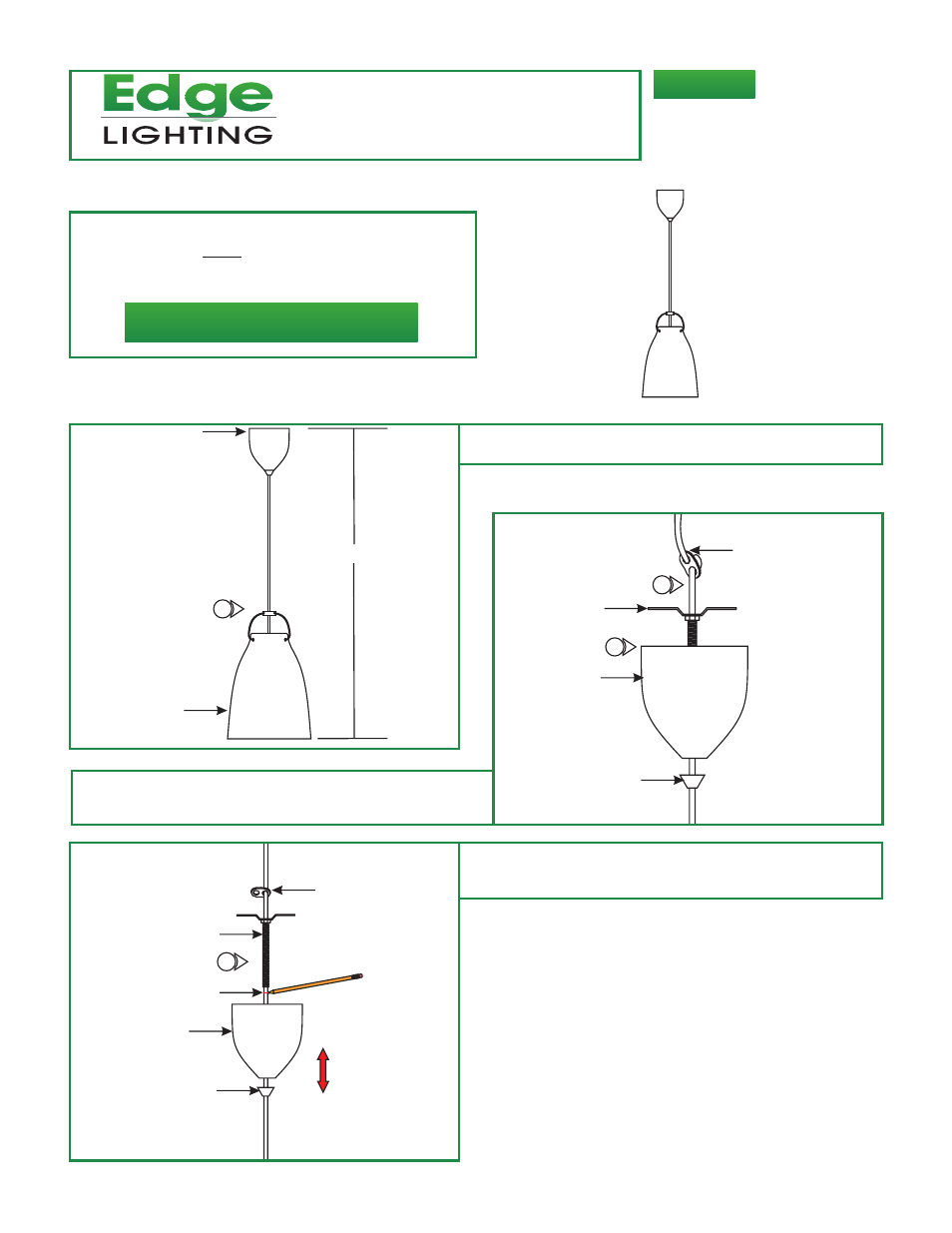

1: Determine the desired fixture height (H), from the bottom of
the shade to the top the canopy.
1
B
2:
and also entangle the cord from the cord clip.
Do Not Dissemble, Keep Parts in Order.
Loosen the threaded cap, to expose the crossbar assembly
1
VESS-S-10-_
© 2013 Edge Lighting. All Rights Reserved.
SHADE
C
3: Adjust the fixture height by sliding the cord up or down
through the crossbar. Make a line behind the crossbar
assembly when desired height is determined.
CANOPY
CROSSBAR
ASSEMBLY
THREADED CAP
CORD CLIP
2
2
CORD CLIP
CROSSBAR
ASSEMBLY
CANOPY
THREADED CAP
3
MARKED LINE
