Edge Lighting Air LED User Manual
Air led suspension, Install the fixture, Installation instructions for

Installation Instructions for
Air LED Suspension
904-AIR-S-02
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor locations.
- This product can ONLY be ceiling mounted.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
IMPORTANT INFORMATION
Install the Fixture
AIR-S-_-CH
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
FIXTURE FRAME
A
H
CANOPY

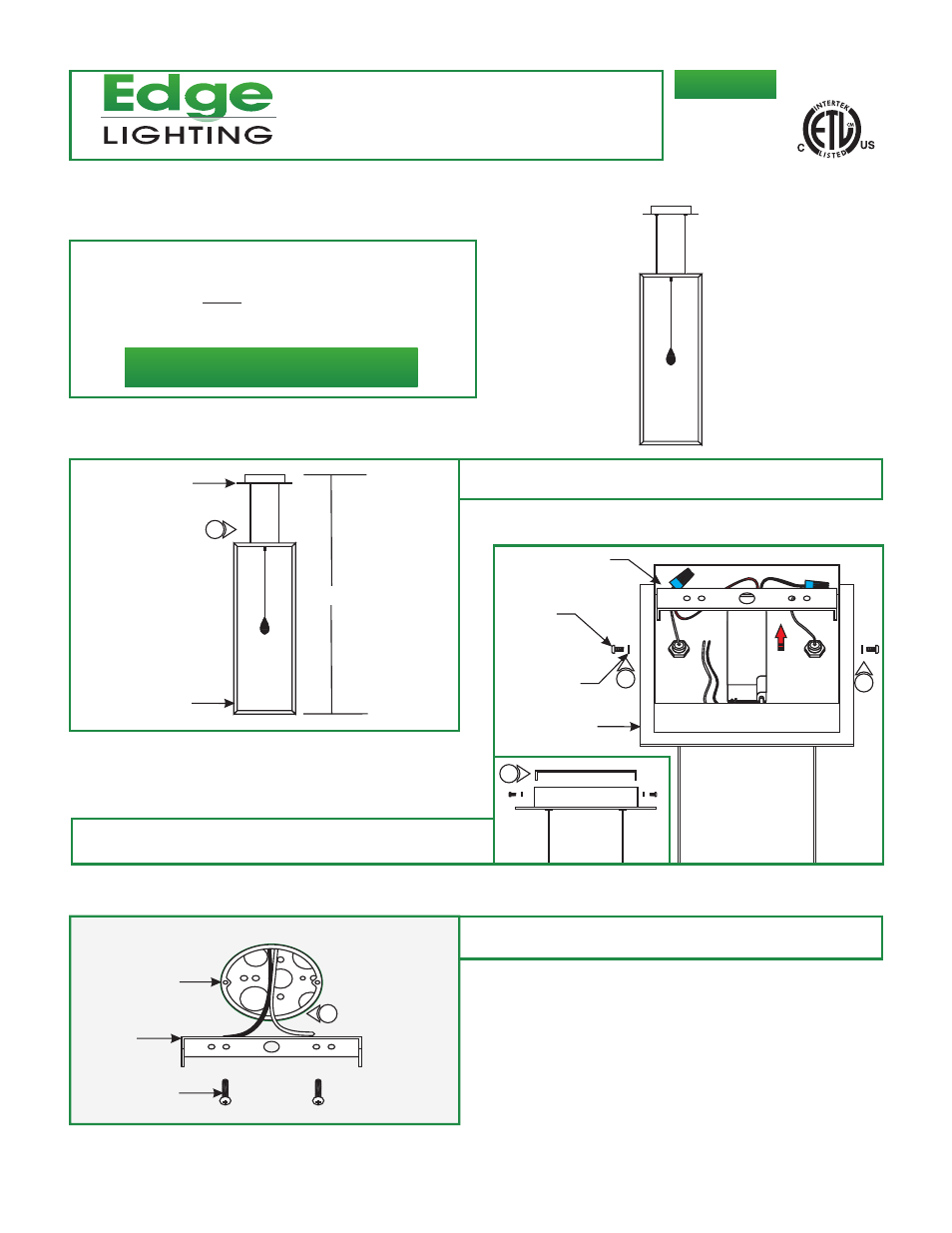

1: Determine the desired fixture height (H), from the bottom of
the fixture frame to the top the canopy.
1
B
1
© 2012 Edge Lighting. All Rights Reserved.
2: Remove the two Phillip screws and lock washers on the
sides of the canopy, and carefully pull the crossbar out.
CANOPY
PHILLIPS
SCREW
LOCK
WASHER
CROSSBAR
2
2
2
3: Mount the crossbar to the electrical box holes with the
provided #8-32 screws.
C
ELECTRICAL BOX
MOUNTING HOLES
CROSSBAR
3
#8-32 SCREW
