Edge Lighting Cirrus Float Center Feed - Manual (Page 3)

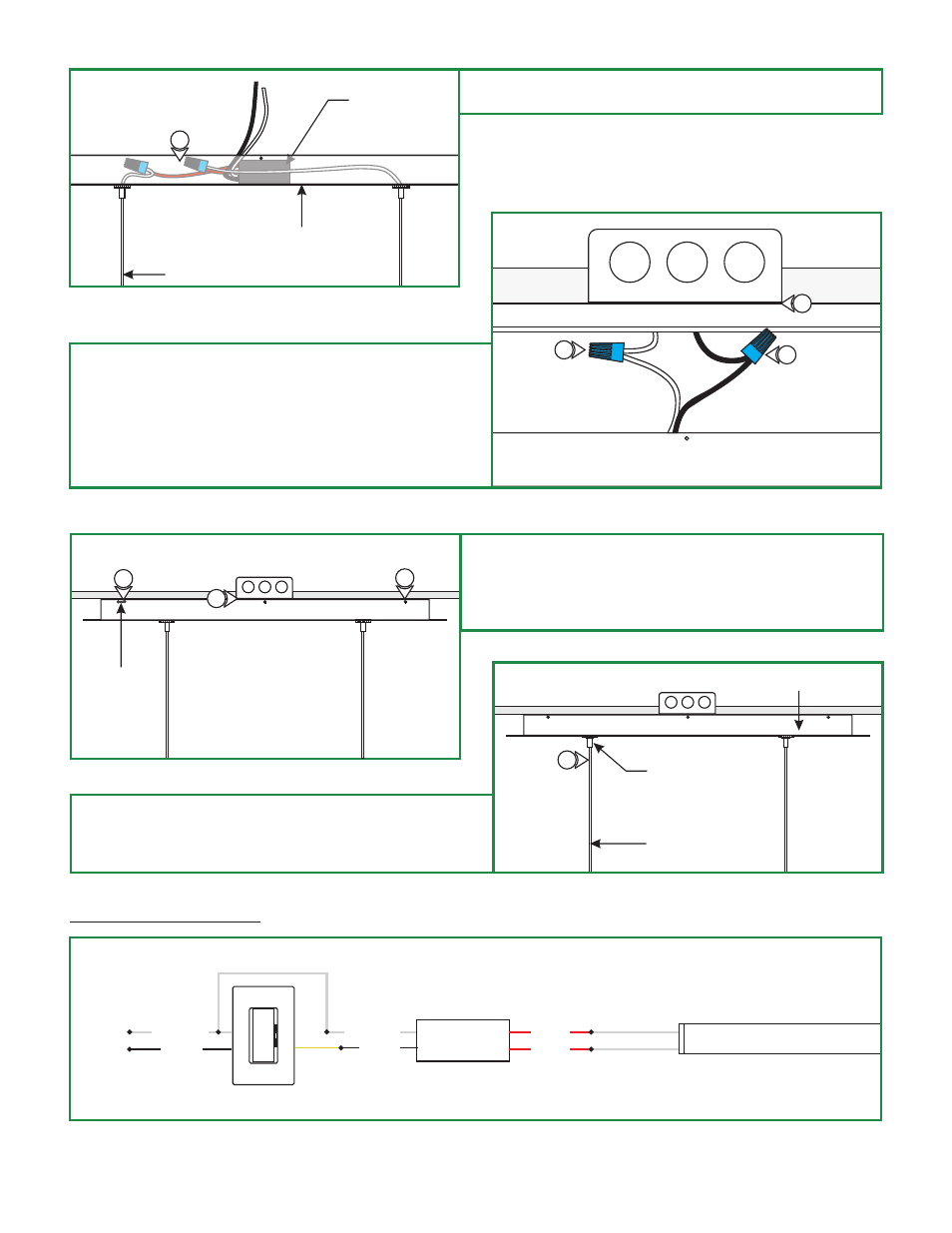

3
J
POWER SUPPLY
CANOPY
11: Connect each coaxial cable bare wire to the low voltage red
power supply wires with a wire nut.
COAXIAL CABLE
13
14
K
12
12: Make sure the mounting plate is grounded in accordance
with local electrical codes.
13: Connect the white transformer wire to the neutral power
wire with a wire nut.
14: Connect the black transformer wire to the hot power
wire with a wire nut.
11
L
#8-32 SCREW
15: Place all the wires and wire nut connections inside the
canopy.
16: Align and secure the canopy to the mounting plate by
tightening the six #8-32 screws. 15
16 16
WHITE (NEUTRAL)
GENERAL WIRING DIAGRAM
ELECTRONIC LOW
VOLTAGE DIMMER
INPUT
120VAC
BLACK (HOT)
LED TRANSFORMER
WHITE (NEUTRAL)
BLACK (HOT)
RED (24VAC)
RED (24VAC)
YELLOW
CHANNEL
COAXIAL
CABLE
M
17: To make any adjustments to the fixture height, push the
tabs on the canopy to slide the fixture up and down until
the desired height is achieved. Release the tab to lock the
coaxial cable in place.
STANDOFF TAB
COAXIAL CABLE
17
CANOPY
