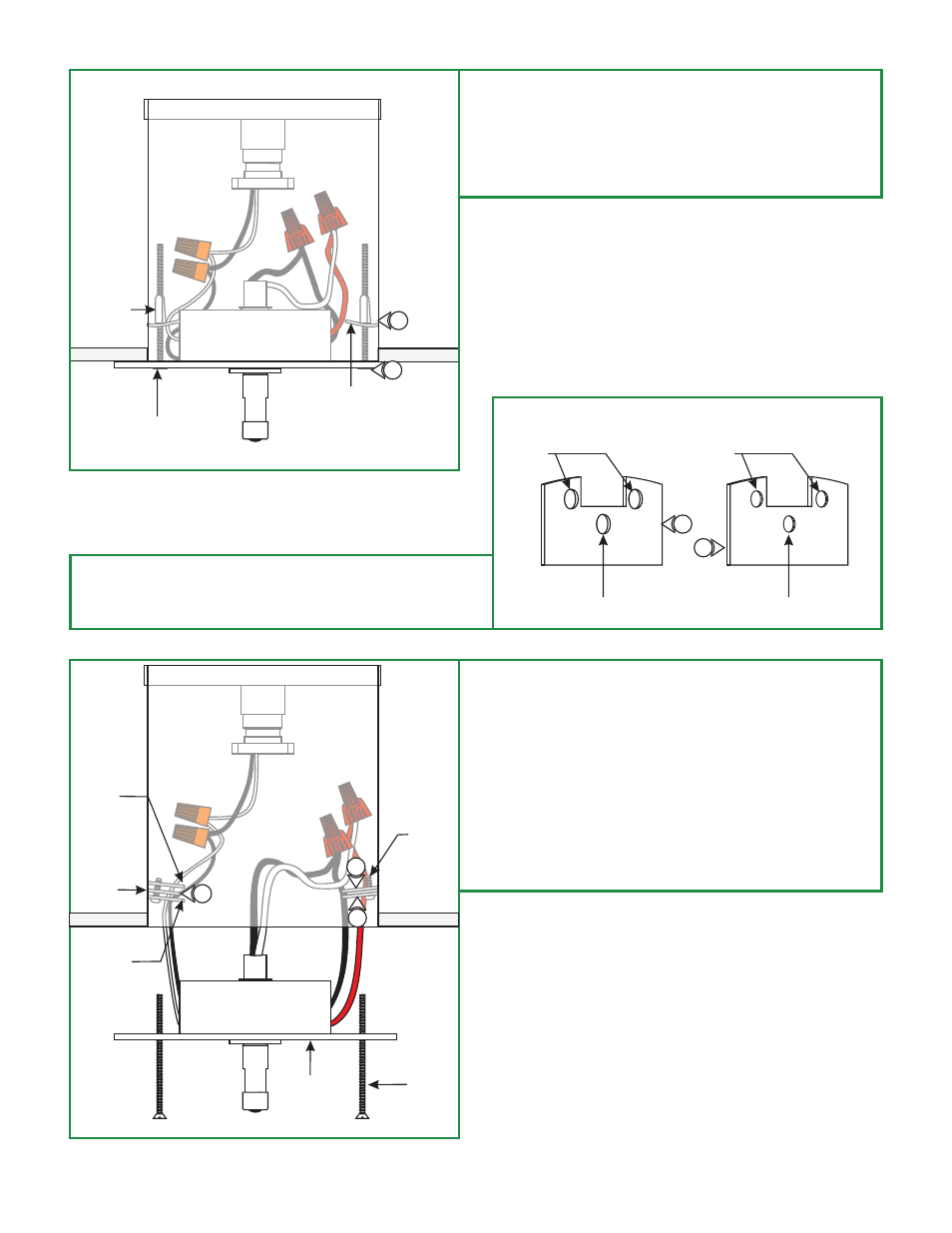

9: Align and hang the butterfly togglers onto the "U" shaped
hooks on both sides of the down lights.
10: When the butterfly togglers are properly hung onto the "U"
shaped hooks, tighten the long screws by keeping a light
tension on the canopy. This will prevent the butterfly
anchors from slipping off of the "U" shaped hooks.
D
#10-24 LONG SCREW
"U" SHAPED HOOK
BUTTERFLY
TOGGLERS
9
10
Install the Recessed Can
Transformer using the
Mounting Bracket
CLEARANCE SIDE
HOLES
CLEARANCE CENTER HOLES
THREADED SIDE
HOLES
THREADED CENTER HOLES
E
1: There are four mounting brackets included in the package,
two of them with threaded holes and two others with
clearance holes. Each set uses a threaded and a clearance
hole brackets.
2: Bend the "U" shaped hooks slightly down to avoid cross
threading the #10-24 long screws that hold the canopy.
3: Lay one threaded hole bracket on top of the "U" shaped
hook so that the curve section of the bracket is in contact
with the inside can wall.
4: From the bottom of the "U" shaped hook, hold the
clearance hole bracket. Line the two bracket holes up and
screw them together with two #8-32 short screws so that
these brackets clamp the "U" shaped hooks.
5: Repeat steps 2 through 4 for the other "U" shaped hooks.
F
CANOPY
THREADED
HOLE
BRACKET
"U" SHAPED
HOOKS
#8-32
SHORT
SCREWS
CLEARANCE
HOLE
BRACKET
#10-24
LONG
SCREWS
2
1
1
3
4
