Edge Lighting 300W/12V Surface Mount Electronic Transformer - Manual (Page 2)

4: Connect the provided white and black extension wires to the
neutral and hot power wires respectively with the wire nuts
provided.
5: Feed the wires through the crossbar assembly nipple.
6: Place all wires and wire nut connections inside the electrical
box.
7: Mount the crossbar assembly to the electrical box with the
two provided #8-32 screws.
8: Make sure the crossbar assembly is grounded in accordance
with local electrical codes.
CROSSBAR
ASSEMBLY
2

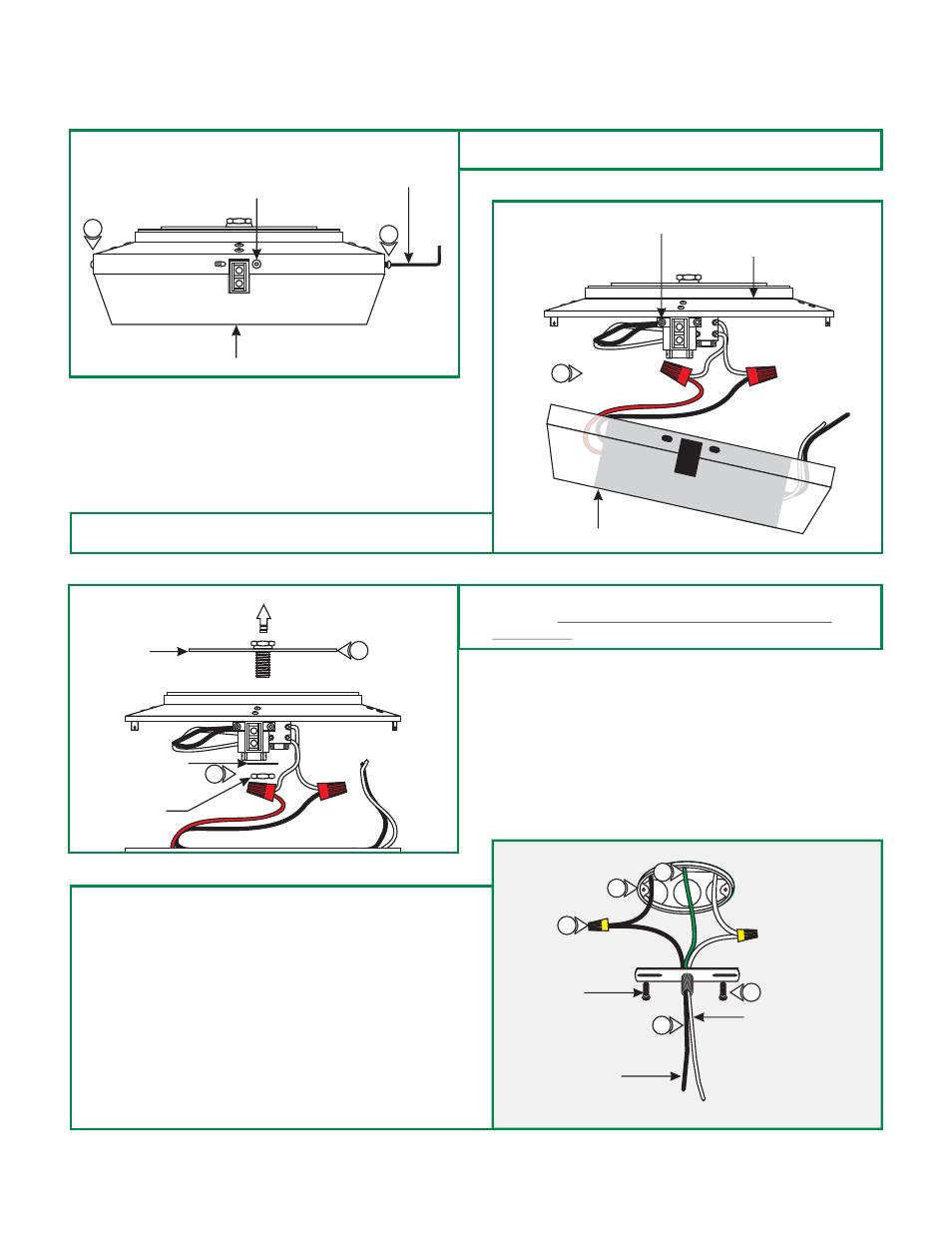

Install the Surface Mount Transformer
1: Loosen and remove the five M4 button head screws around
the transformer cover with the provided 2mm Allen wrench.
A
2: While holding the transformer, unhook the transformer cover
from the set screw.
COVER
1
1
1
2MM ALLEN
WRENCH
3: Remove the inside nut and washer to remove the crossbar
assembly. DO NOT DISASSEMBLE THE CROSSBAR
ASSEMBLY. C
WASHER
INSIDE NUT
3
D
#8-32 SCREW
CROSSBAR ASSEMBLY
NIPPLE
6
4
7
5
M4 BUTTON
HEAD SCREW
8
B
HOUSING
COVER
SET SCREW
2
3
EXTENSION WIRES
