Edge Lighting 2-Circuit Sloped Ceiling Surface Mount Magnetic Transformers - Manual (Page 3)

3

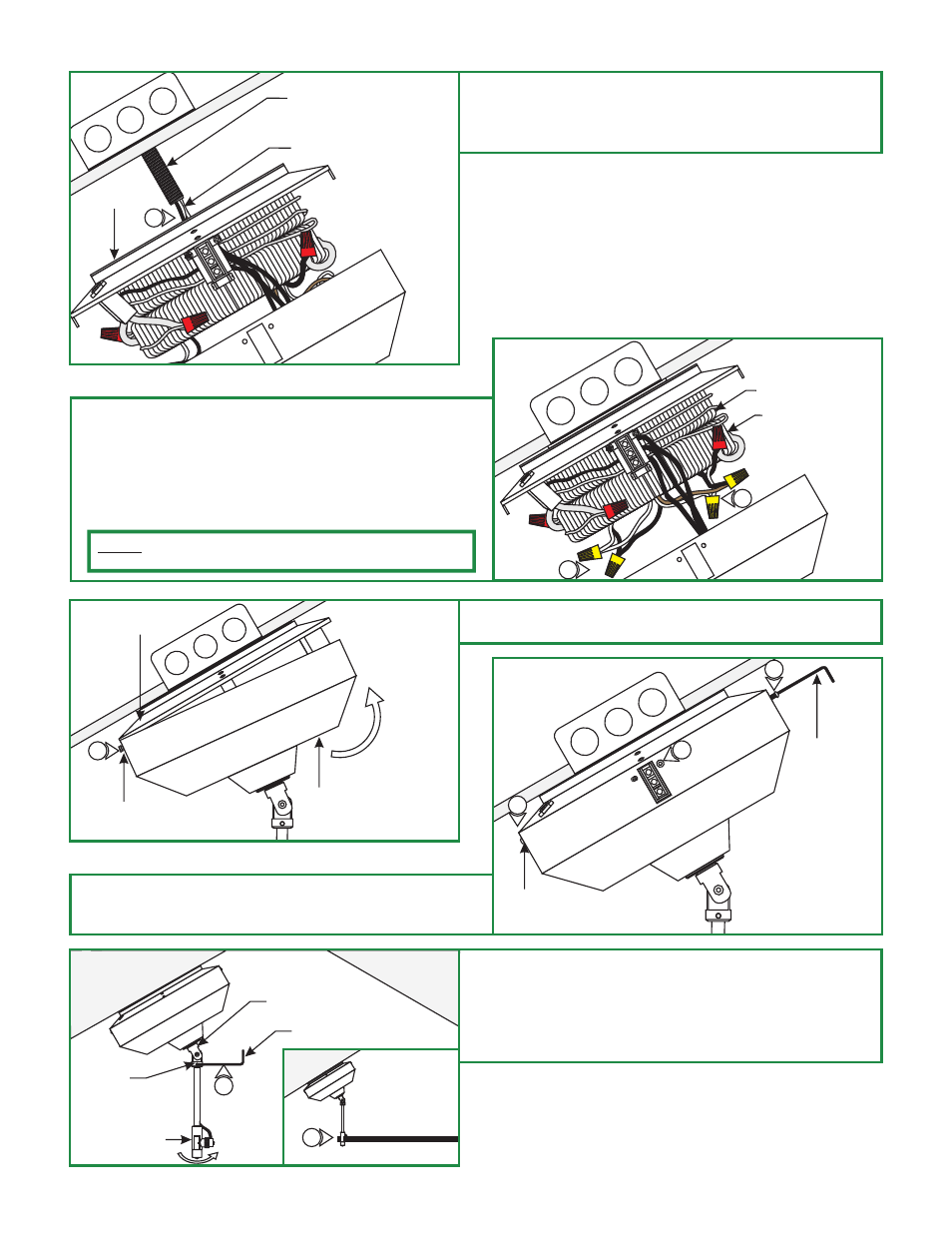

10: Feed the extension wires through the transformer housing
center hole. Slide the transformer housing onto the
crossbar assembly nipple and secure it in place by
tightening the washer and inside nut.
E
11: Connect the black and white 120 volt wires from the top
transformer to one set of black and white extension
wires respectively with wire nuts.
12: Connect the black and white 120 volt wires from the top
transformer to the other set of brown and white extension
wires respectively with wire nuts.
13: Hook one of the transformer cover screw holes next to the
rectangle cutout, onto the Monorail feed contact set screw.
G
H
14: Place the transformer cover onto the transformer housing.
Replace and tighten the five M4 button head screws with
the 2mm Allen wrench.
13
MONORAIL 2 CIRCUIT
CONTACT SET SCREW
HOUSING
COVER
2MM ALLEN
WRENCH
14
M4 BUTTON
HEAD SCREW
WASHER
INSIDE NUT
EXTENSION WIRES
HOUSING
CROSSBAR ASSEMBLY
NIPPLE
14
14
M4 SET
SCREW
CONNECTOR
15
15
I
2MM ALLEN WRENCH
15: (OPTIONAL) To change the direction of the Monorail 2
Circuit, loosen the M4 set screw (Do Not Remove) on the
sloped connector. Rotate the Monorail 2 Circuit connector to
desired direction. While pushing the Monorail 2 Circuit
connector to the sloped connector, tighten the M4 set screw
with the 2mm Allen wrench.
SLOPED CONNECTOR
F
11
12
TOP TRANSFORMER
BOTTOM
TRANSFORMER
10
NOTE:
disconnected & capped.
The yellow input wires are not used. Leave these wires
