Edge Lighting 2 Circuit Pre-Bent Monorail - Manual (Page 2)

2
C
THE OTHER PRE-BENT
MONORAIL 2 CIRCUIT SECTION
2

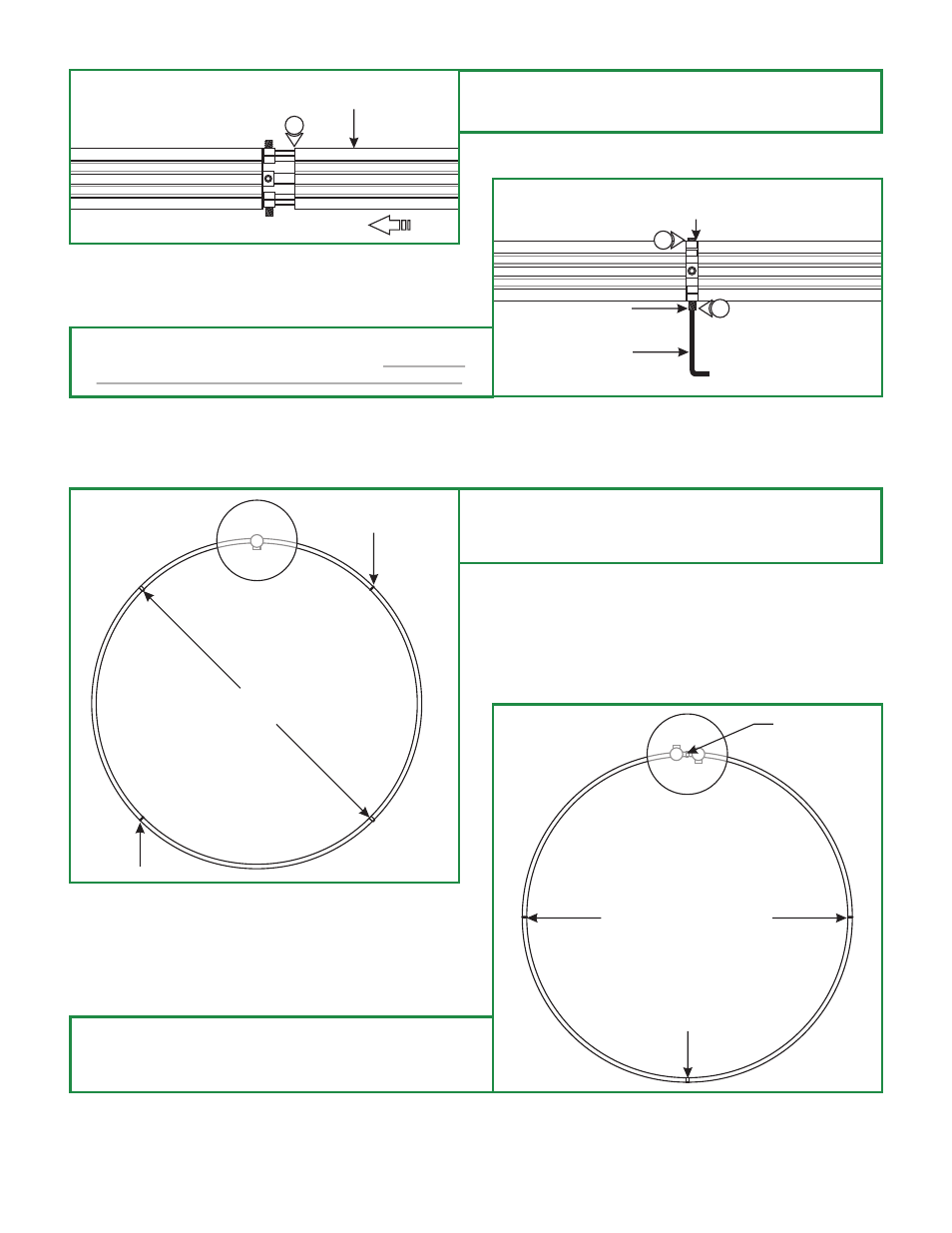

2: Push the other pre-bent Monorail 2 Circuit section entirely
onto the isolating connectors and simultaneously connect the
pre-bent Monorail 2 Circuit to the standoffs.
1/16 ALLEN
WRENCH
#6-32 SET SCREW
D
ISOLATING CONNECTOR
3: Tighten the #6-32 set screw on each of the isolating
connectors firmly with the 1/16 Allen wrench. Do not over
tighten the set screws as this may strip the threads.
3
E
Connecting a Pre-Bent Circle Sections
F
ISOLATING
CONNECTOR
CONDUCTIVE CONNECTOR
ISOLATING CONNECTOR
CONDUCTIVE CONNECTOR
ISOLATING CONNECTOR
CONDUCTIVE CONNECTOR
3
1: For the Single Power Feed Connection- Use one set of
isolating connectors and the appropriate sets of conductive
connectors provided to connect the pre-bent Monorail
sections together as a circle.
2: For the Dual Power Feed Connection- Use sets of
isolating connectors and the appropriate sets of conductive
connectors provided to connect the pre-bent Monorail
sections together as a circle.
two
