SAVE THESE INSTRUCTIONS!
M-24-_
- This product is ETL listed for indoor dry locations.
- Monorail is bendable horizontally to a radius as small as 6"
and vertically to a radius as small as 24".
- The product is intended to be used with Edge Lighting
Monorail systems only.
A
Monorail 24", 48", & 96"
Installation Instructions for
Techniques to Bend the Monorail
1
904-M-96-02
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
NOTE:

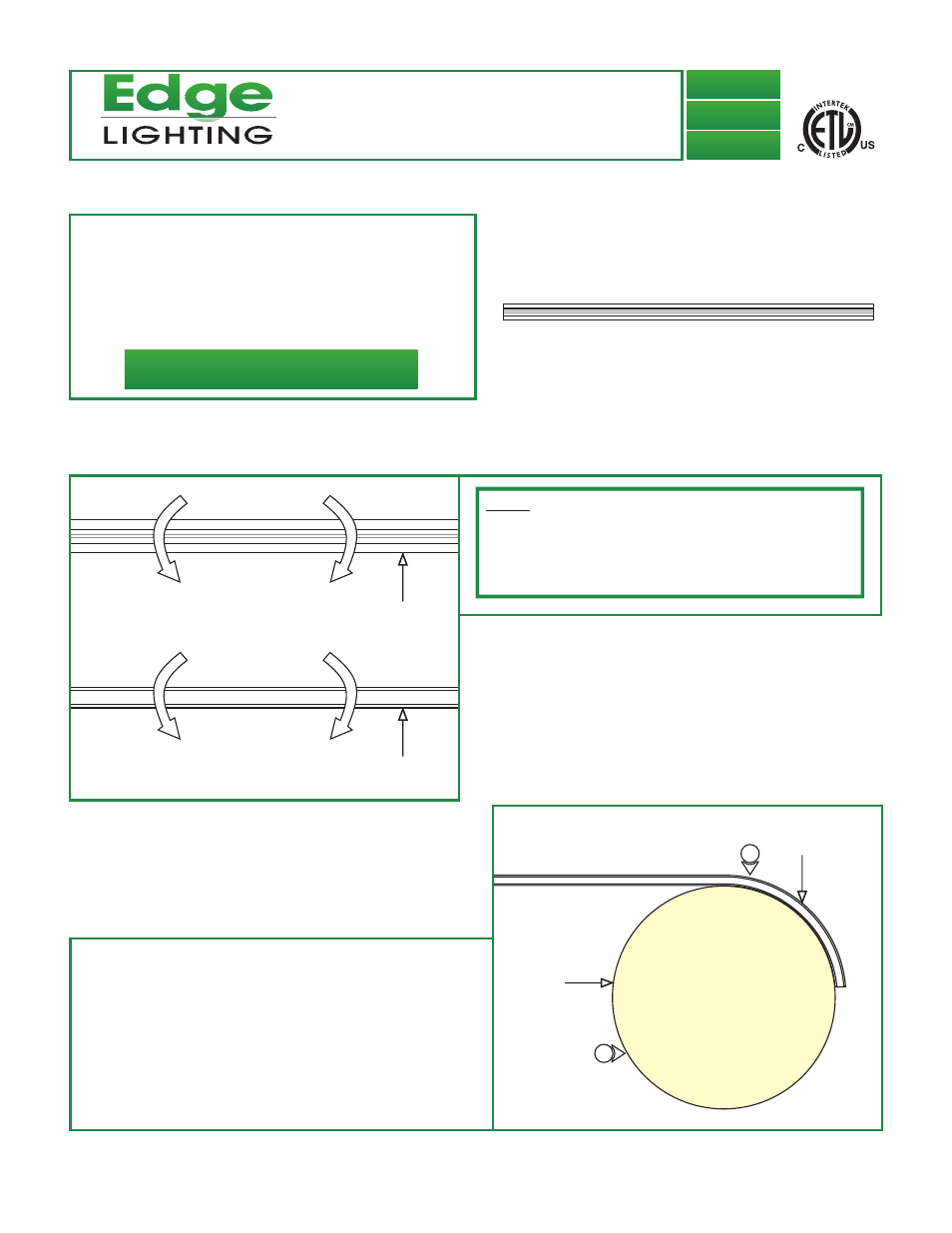

There are three techniques to bend the Monorail
horizontally which are Plywood Template, Free Style, and
Wiremold pipe bender. Monorail can only be bent vertically by a
Wiremold pipe bender. When bending vertically, bend the Monorail
in short increments and avoid bending it back which may cause
the rails to separate from the insulator.
M-48-_
M-96-_
VERTICAL BENDING
FRONT OF
THE MONORAIL
TOP OF THE
MONORAIL
HORIZONTAL BENDING
Horizontal Bending Using a
Plywood Template
B
MONORAIL
CIRCULAR
PLYWOOD
1
4
1: Determine the radius of the curve or circle.
2: Draw the curve on plywood and cut out the pattern from the
plywood.
3: Secure the plywood in place.
4: Hold one edge of the Monorail against the plywood. Start
bending the Monorail against the plywood until the desired
curve or circle is achieved.
© 2009 Edge Lighting. All Rights Reserved.
