Edge Lighting Standoffs User Manual
Monorail 1" rigid standoff, Install the standoff, Installation instructions for

SAVE THESE INSTRUCTIONS!
MS-1-_
- This product is ETL listed for indoor dry locations.
- The product is intended to be used with Edge Lighting
Monorail systems only.
- Use Monorail standoffs where the Monorail sections join
together and approximately every 3 feet throughout the
Monorail run.
Monorail 1" Rigid Standoff
Installation Instructions for
1
904-MS-1-02
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
A

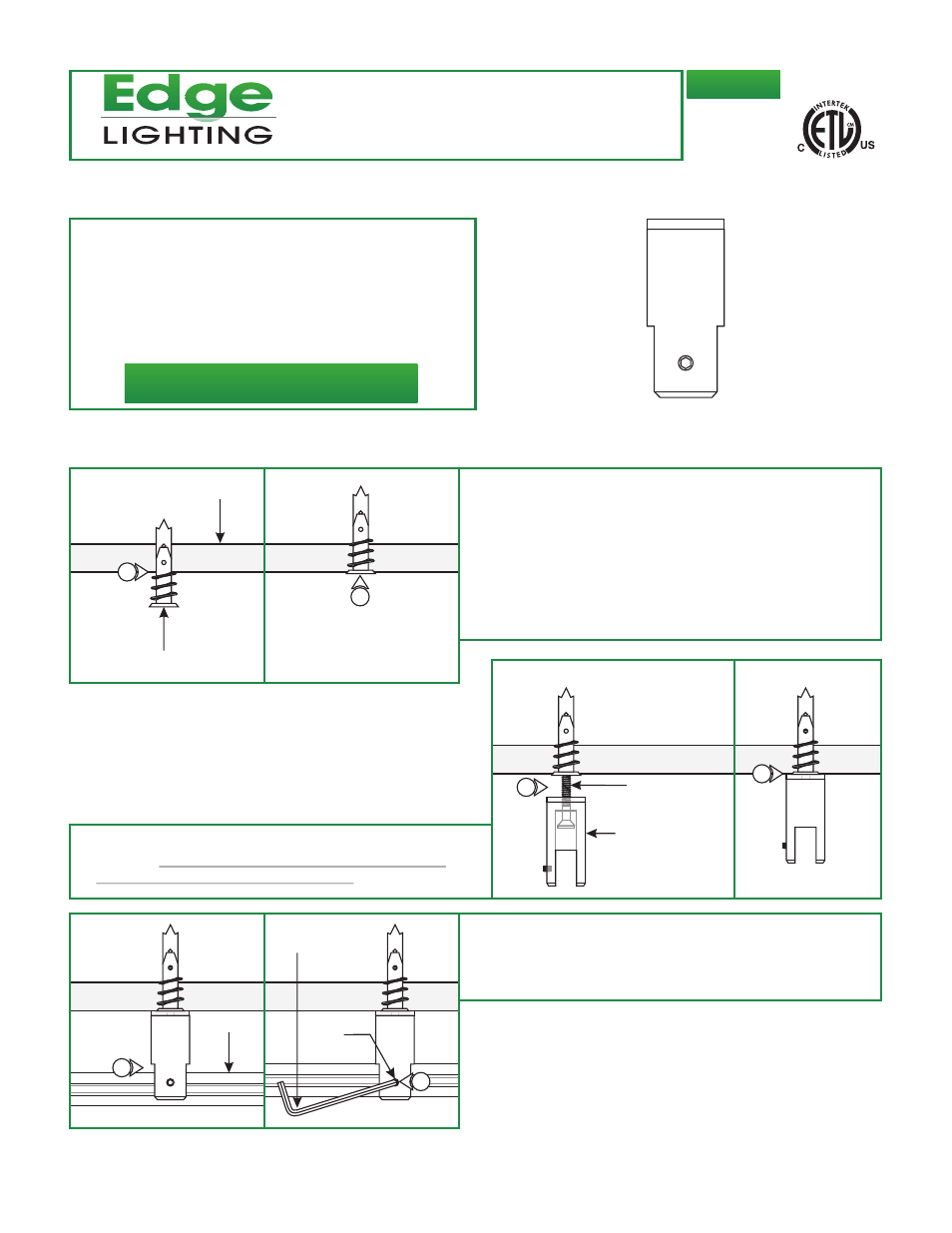

Install the Standoff
B
1: Hold the Monorail section against the ceiling or use a plumb
bob to mark the standoff locations onto the ceiling (this may
require more than one person).
2: Tap the anchors onto the marked locations up to the
threaded portion with a hammer.
3: Screw the threaded portion of the anchors in with a Phillips
screwdriver.
ANCHOR
CEILING
2
3
4: Mount the standoffs onto the anchors with the #8 screws
provided. Make sure that the cut out portion of the
standoffs lines up with the Monorail.
#8 SCREW
1" STANDOFF
4
4
C
5: Slide Monorail into the cut out portion of the standoffs. Hold
the Monorail against the standoffs (
and tighten the M3 set screw on each
standoff with the 1.5mm Allen wrench.
this may require more
than one person)
MONORAIL
1.5MM ALLEN
WRENCH
M3 SET
SCREW
5
5
© 2009 Edge Lighting. All Rights Reserved.
