Edge Lighting Sloped Ceiling Standoffs - Manual (Page 3)

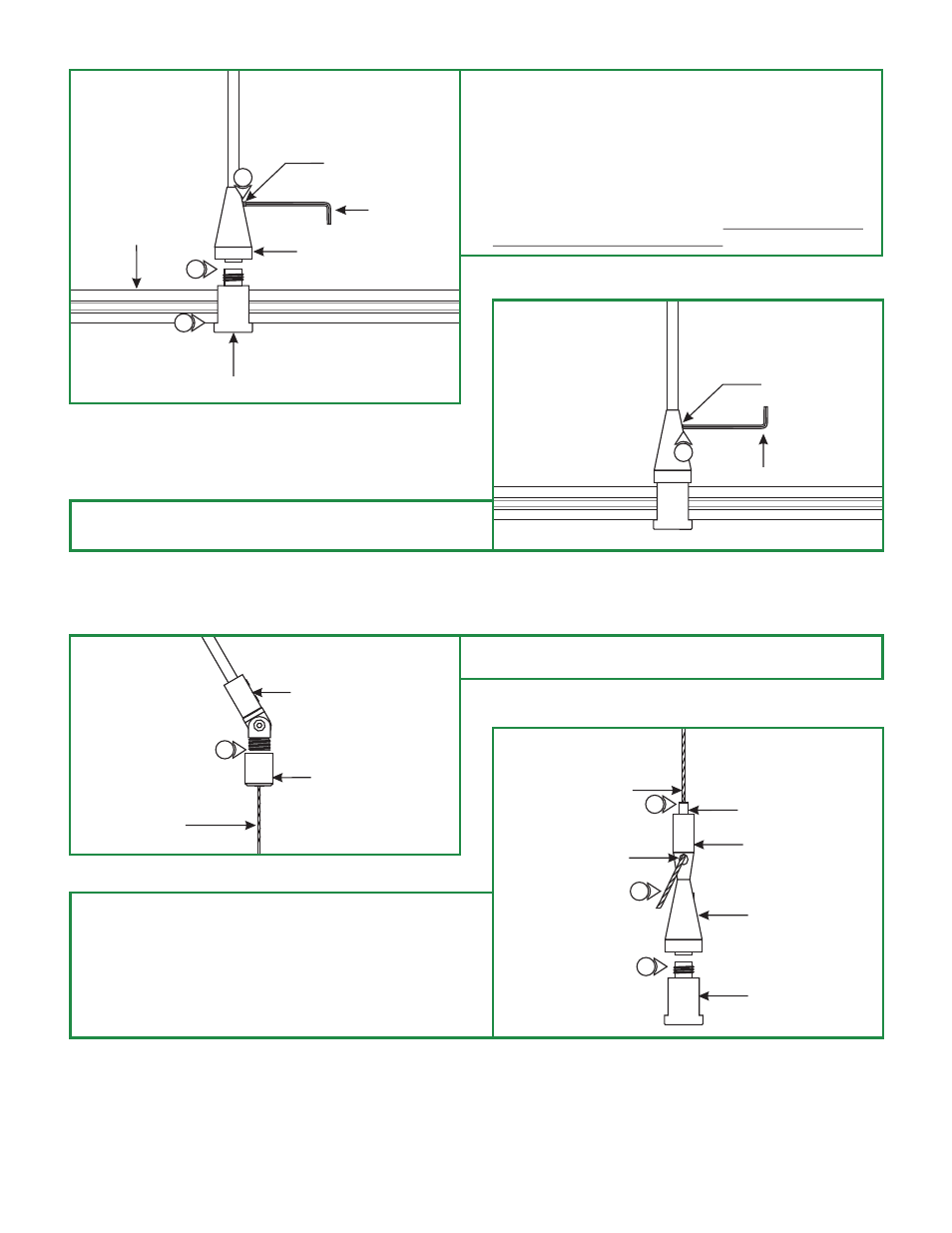

3
H
MONORAIL
CONICAL NIPPLE
THREADED HOUSING
M3 SET SCREW
1.5MM ALLEN
WRENCH
2: Slightly loosen the M3 set screw on the conical nipple of
each of the standoffs with the 1.5mm Allen wrench so that
the conical nipples can rotate easily.
3: Place the Monorail into the threaded housings (this may
require more than one person).
4: Tighten the threaded housings to the conical nipples (this
may require more than one person). Make sure threaded
housings are not cross threaded.
4
2
3
I
M3 SET SCREW
1.5MM ALLEN WRENCH
5
5: Tighten the M3 set screw on the conical nipples with the
1.5mm Allen wrench.
Mounting the Monorail to Adjustable Standoff
J
1
THREADED POST
1: Tighten the adjustable standoff threaded post completely
onto the sloped connector threaded nipple.
AIR CRAFT CABLE
K
2
THREADED HOUSING
CONICAL NIPPLE
TAB
ADJUSTABLE
CONNECTOR
SIDE HOLE
AIRCRAFT CABLE
3
4
2: Remove the threaded housings from the conical nipples.
3: Push the tab on the adjustable connector and feed the
aircraft cable through the top of the tab.
4: Pull the aircraft cable coming out of the side of the
adjustable connector. Release the tab to lock the adjustable
connector in place.
SLOPED CONNECTOR
