Edge Lighting Sloped Ceiling Power Feeds - Manual (Page 2)

F
M4 SET SCREW
2MM ALLEN
WRENCH
MONORAIL
CONNECTOR
C
CAP
3/8-24 SET SCREW
POWER HOUSING
2
1
3/16 ALLEN WRENCH
CAP
2

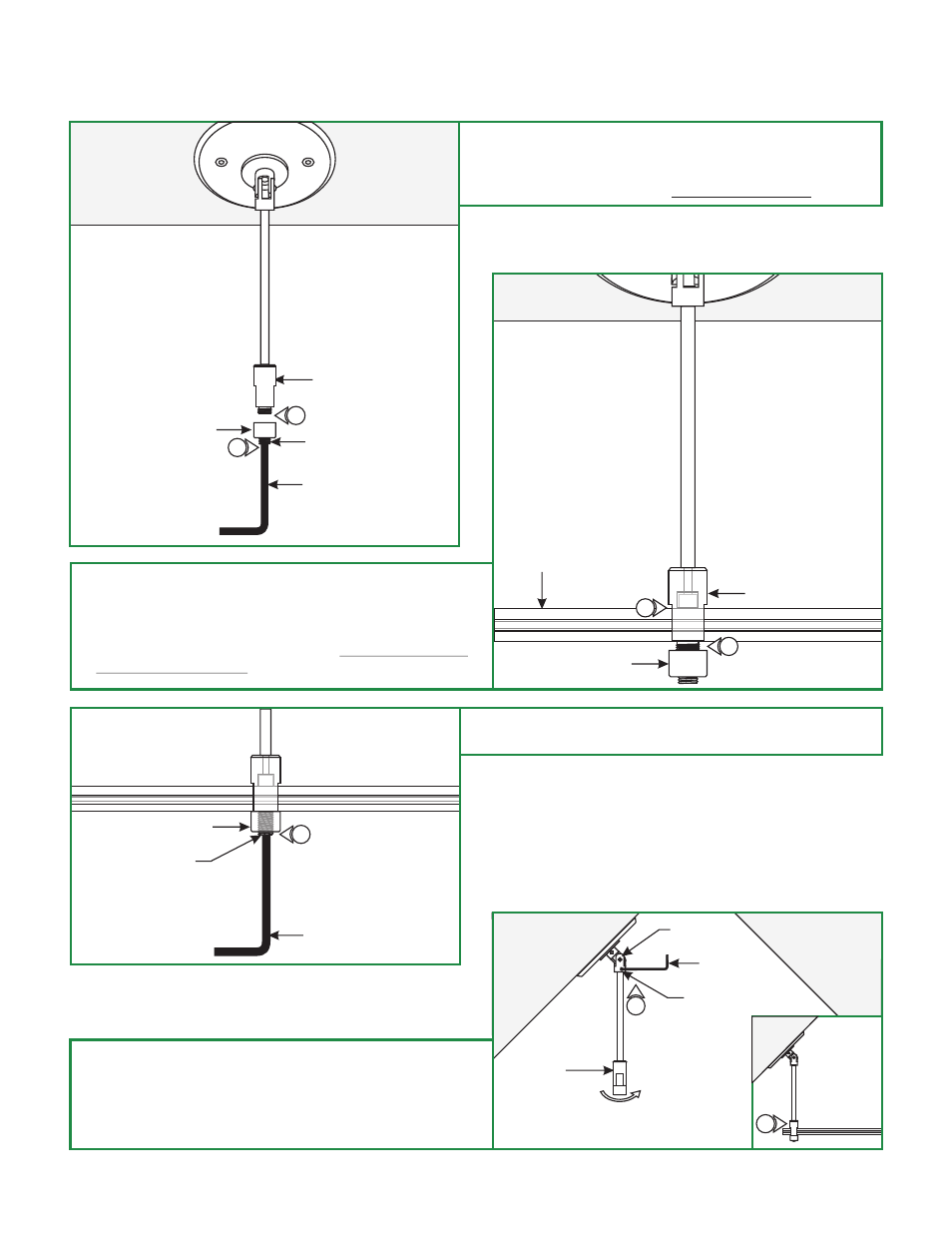

1: Unscrew the cap from power housing.
2: Slightly loosen the 3/8-24 set screw on the cap with the
3/16 Allen wrench provided, DO NOT REMOVE IT.
D
3: Place the Monorail into the power housing. Make sure that
the Monorail is supported by the standoffs. Refer to the
instructions provided with the standoffs.
4: Tighten the cap to the power housing. Make sure the cap
is not cross threaded.
MONORAIL
POWER HOUSING
CAP
E
3/8-24 SET SCREW
5: Tighten the 3/8-24 set screw on the cap firmly with the 3/16
Allen wrench provided for proper power connection.
3
4
6
Install the Monorail to Power Feed Canopy
3/16 ALLEN WRENCH
6: (OPTIONAL) To change the direction of the Monorail,
loosen the M4 set screw (Do Not Remove) on the sloped
connector. Rotate the Monorail connector to desired
direction, while pushing the monorail connector to the sloped
connector tighten the M4 set screw with the 2mm Allen
wrench.
6
5
SLOPED
CONNECTOR
