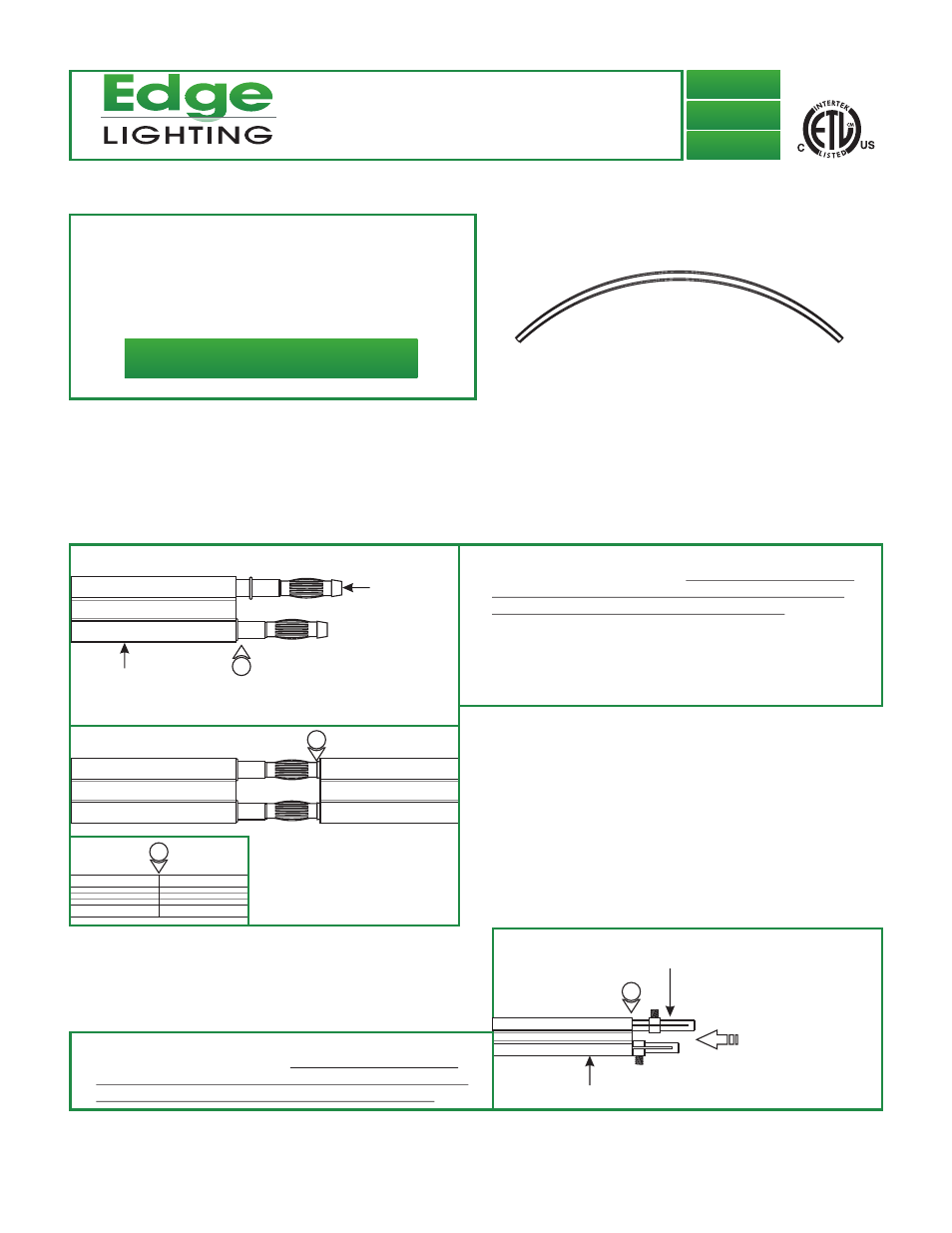

Edge Lighting Pre-Bent Monorail User Manual
Pre-bent monorail, Installation instructions for, Important information

SAVE THESE INSTRUCTIONS!
M-_R-_
- This product is ETL listed for indoor dry locations.
- Monorail is bendable horizontally to a radius as small as 6".
- The product is intended to be used with Edge Lighting
Monorail systems only.
Pre-Bent Monorail
Installation Instructions for
904-M-RCS-03
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
M-_C-_
M-92S-_
1: Push the Monorail conductive connector pins completely into
one pre-bent Monorail section. Make sure this Monorail
section is secured with the standoffs (Refer to the
instructions provided with the standoffs).
2: Push the other pre-bent Monorail section completely onto
the Monorail straight conductive connector pins and
simultaneously connect the pre-bent Monorail to the
standoffs.
ONE PRE-BENT
MONORAIL SECTION
STRAIGHT
CONDUCTIVE
CONNECTORS
A
1
2
Connect the Pre-Bent Monorail Sections with the Conductive
Connectors
Connect the Pre-Bent Monorail
section with the Isolating
Connectors
2
B
ISOLATING CONNECTOR
ONE PRE-BENT MONORAIL SECTION
1
1: Push the straight isolating connectors completely into one
pre-bent Monorail section end. Make sure this pre-bent
Monorail section is secured with the standoffs (Refer
to the instructions provided with the standoffs).
1
