Edge Lighting 2" Power Feed Canopies User Manual
Install the canopy, Monorail 2" square single power feed canopy, Installation instructions for

SAVE THESE INSTRUCTIONS!
MP-2SQ-1-_
- This product is ETL listed for indoor dry locations.
- Minimum electrical box volume must be 6 cubic inches
(98 cubic centimeters).
- This product should be installed by a qualified electrician.
- This product installs to Edge Lighting 2" electrical box only.

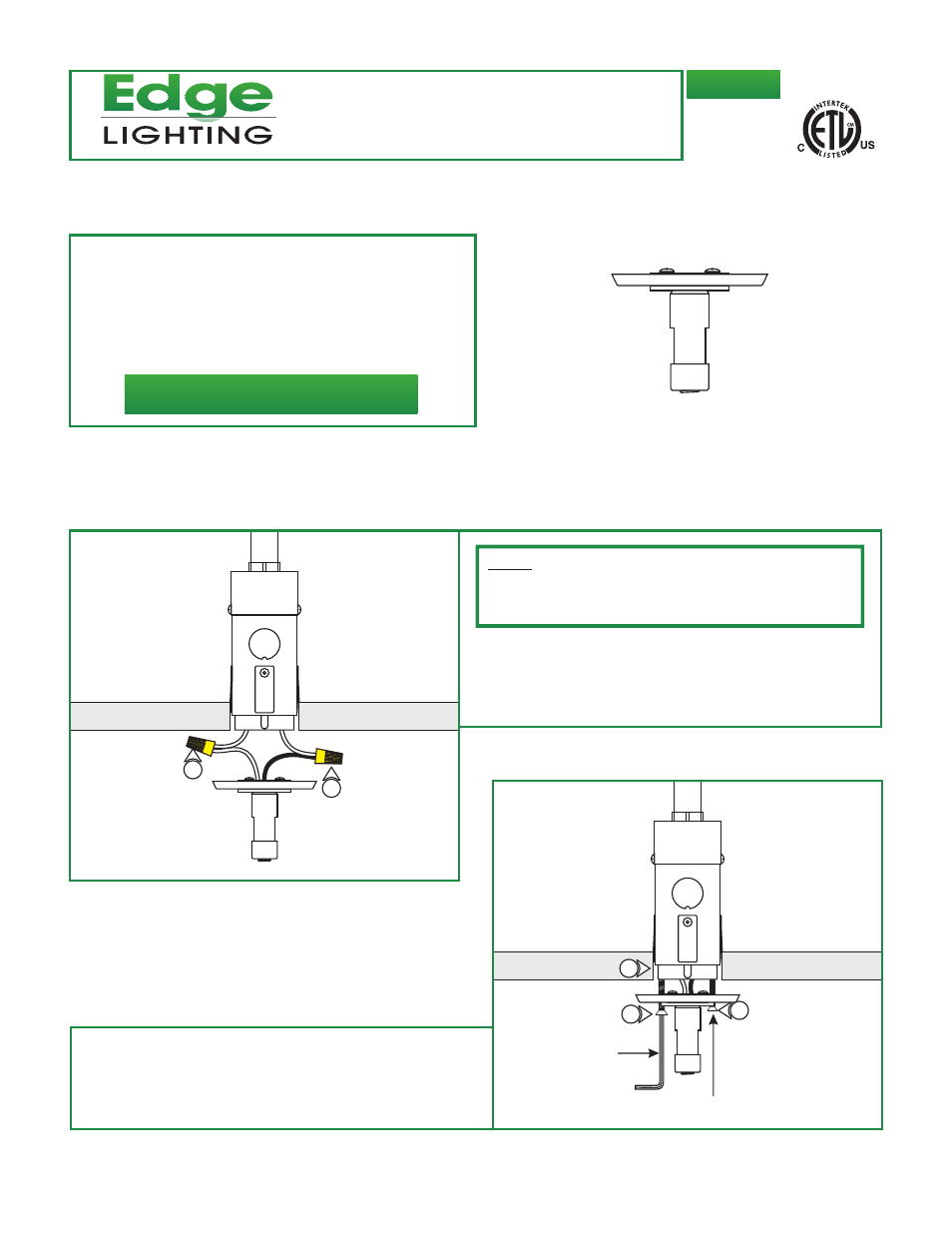

1: Turn the power to electrical box off.
2: Connect each low voltage wire coming from the remote
transformer to one power feed canopy wire with a wire nut.
Monorail 2" Square Single Power Feed Canopy
Installation Instructions for
Install the Canopy
1
904-MP-2SQ-1-03
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
NOTE:
The low voltage wires should be present in the 2"
electrical box. Refer to the instructions provided with the remote
transformer to install the transformer and the low voltage wires
before proceeding with the steps below.
A
2
2
3: Place all wires inside the 2" electrical box.
4: Secure the power feed canopy to the 2" electrical box by
tightening the two provided #8-32 screws with the 3/32
Allen wrench.
3/32 ALLEN WRENCH
#8-32 SCREW
B
4
4
3
