Edge Lighting Vessel 6 - Manual (Page 2)

D
M4 SET SCREW M3 SET
SCREW
1.5MM ALLEN
WRENCH 2MM ALLEN
WRENCH
2
3
COAXIAL FIXTURE CONNECTOR
2

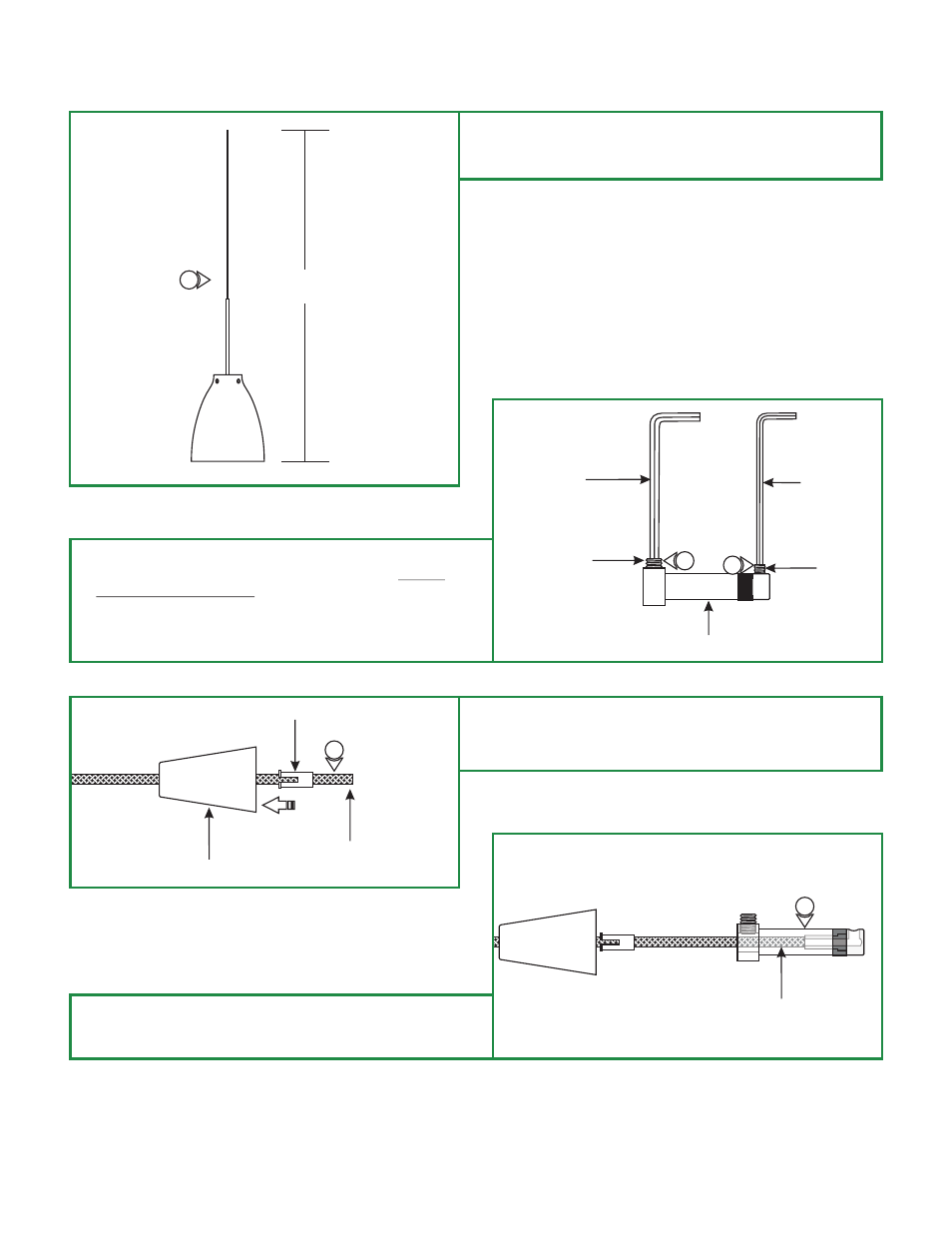

Adjust the Fixture Height
C
1: Cut the coaxial cable to the desired height (H) with a sharp
cutter. The overall fixture height is measured from the
bottom of the glass shade to the end of the coaxial cable.
H
2: Loosen the M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not
remove this set screw.
3: Remove the M3 set screw on tip of the connector with the
1.5mm Allen wrench provided.
4: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple and
strain relief tube down the coaxial cable.
E
CONICAL NIPPLE
STRAIN RELIEF TUBE
COAXIAL CABLE
4
F
COAXIAL CABLE
5
5: Feed the coaxial cable into the coaxial fixture connector. The
coaxial cable will come to a stop point.
1
