2
B
CONICAL NIPPLE
STRAIN RELIEF TUBE
COAXIAL CABLE
2

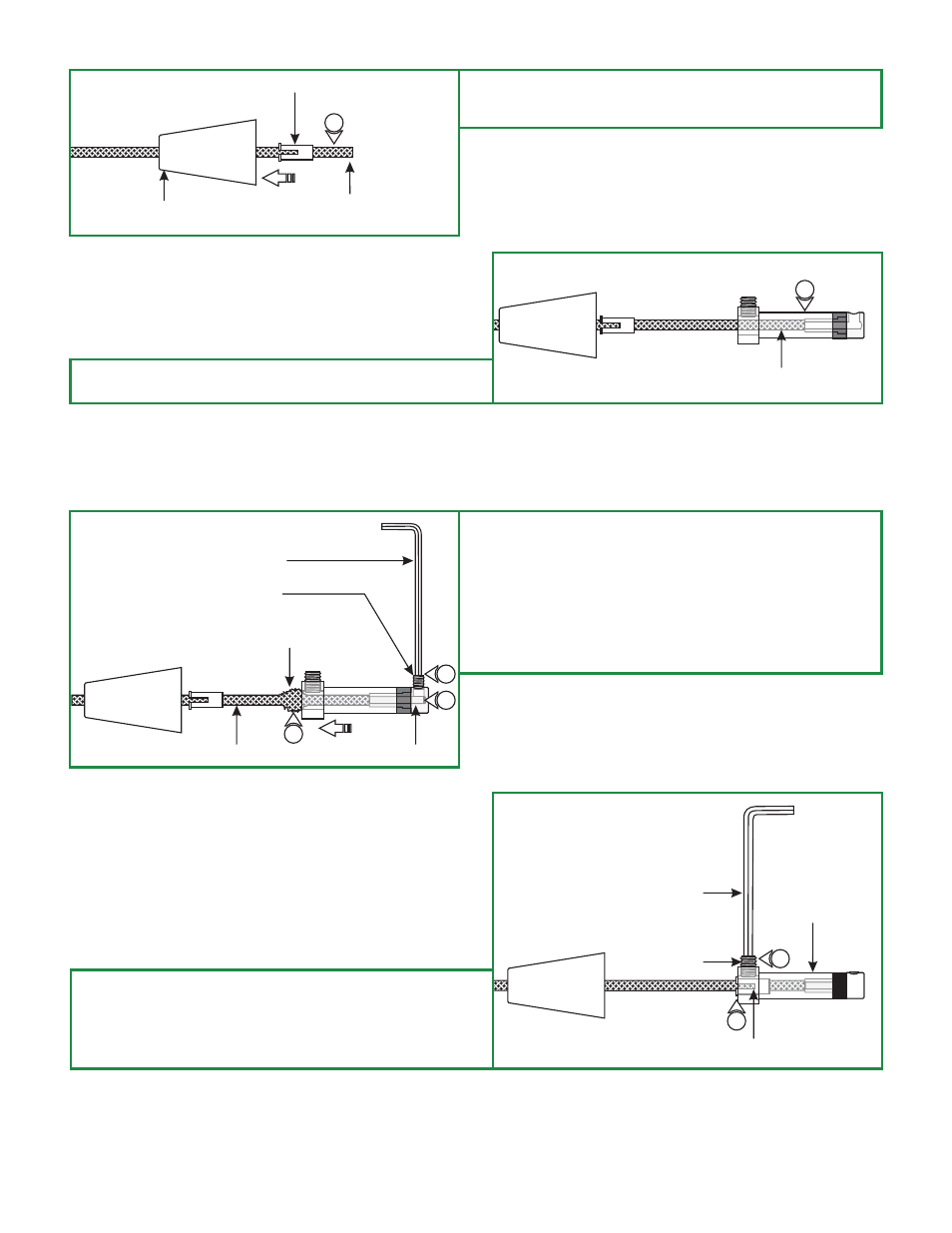

2: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple and
strain relief tube down the coaxial cable.
C
COAXIAL CABLE
3
3: Feed the coaxial cable into the coaxial fixture connector. The
coaxial cable will come to a stop point.
7: Push the strain relief tube completely into the coaxial
fixture connector. Make sure the slot on the strain relief
tube is not inline with the M4 set screw.
8: Tighten the M4 set screw with the 2mm Allen wrench.
E
7
8
2MM ALLEN WRENCH
M4 SET SCREW
STRAIN RELIEF TUBE
COAXIAL FIXTURE
CONNECTOR
D
1.5MM ALLEN WRENCH
M3 SET SCREW
WRINKLE
OUTER METAL JACK INNER WIRE
4
5
6
4: Keep feeding the coaxial cable in until the inner wire is
visible in the screw hole of the fixture connector tip. The
outer metal jacket will start to wrinkle.
5: Hold the fixture connector in place. Replace and tighten the
M3 set screw on fixture connector tip with the 1.5mm Allen
wrench.
6: Pull down the outer metal jacket to smooth the wrinkles.
