Edge Lighting S1 - S3 Shade Accessories - Manual (Page 2)

2
D

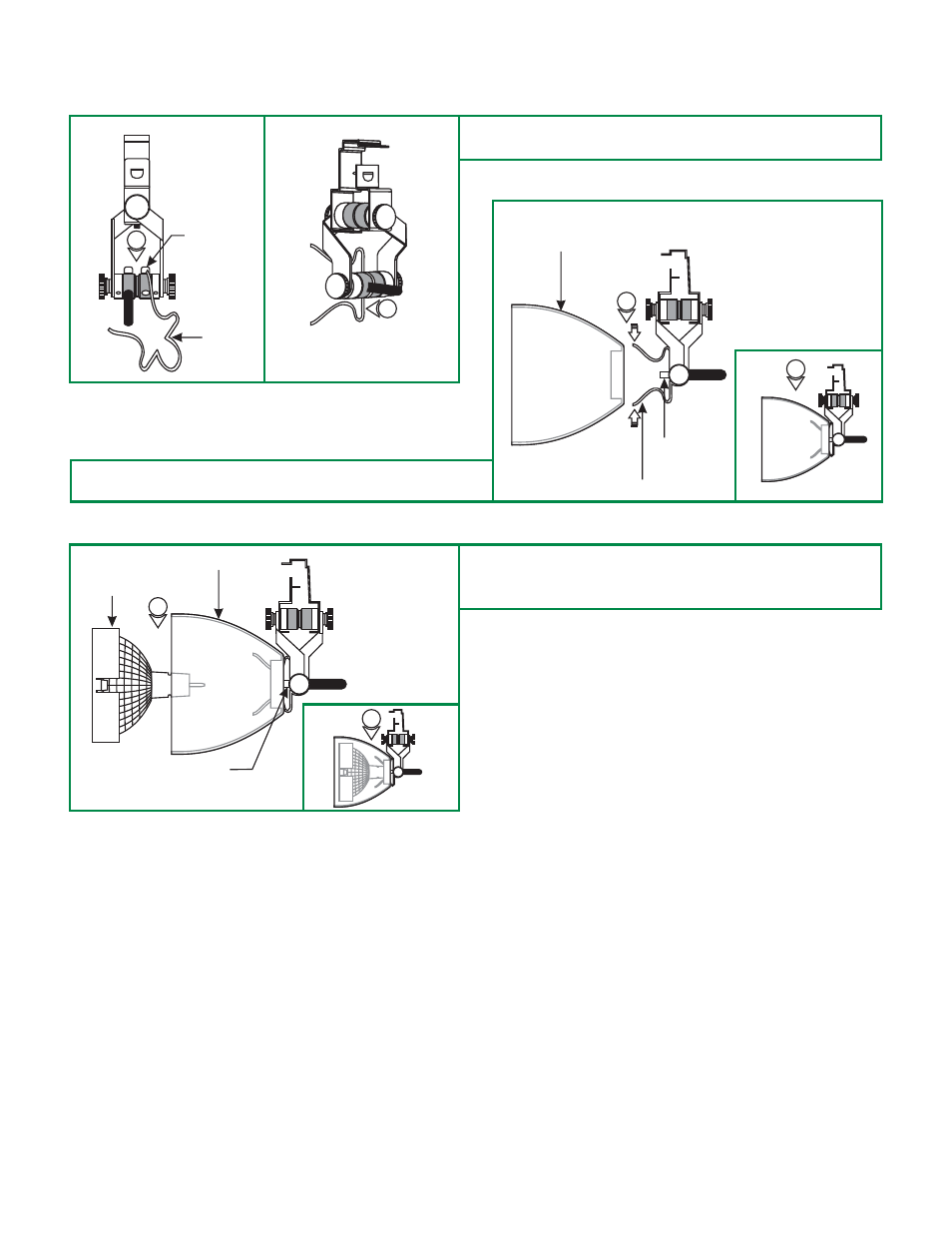

1: Push the spring clip completely onto the center of the socket
groove until it snaps into place.
1
1
SPRING
CLIP HEAD
SOCKET
E
8: Squeeze the spring clip ends while inserting it into the
shade.
2
2
F
3: Place the MR16 lamp into the accessory shade and line up
the MR16 lamp pins with the socket holes. Push the lamp
pins completely into the socket holes.
SHADE
SOCKET
SPRING CLIP
MR16 LAMP
SOCKET
ACCESSORY SHADE
3
3
Install the Accessory shade in Vespa type MR16 Sockets
