Humboldt 5000 BLU Light Weight Deflectometer User Manual
Page 79
79

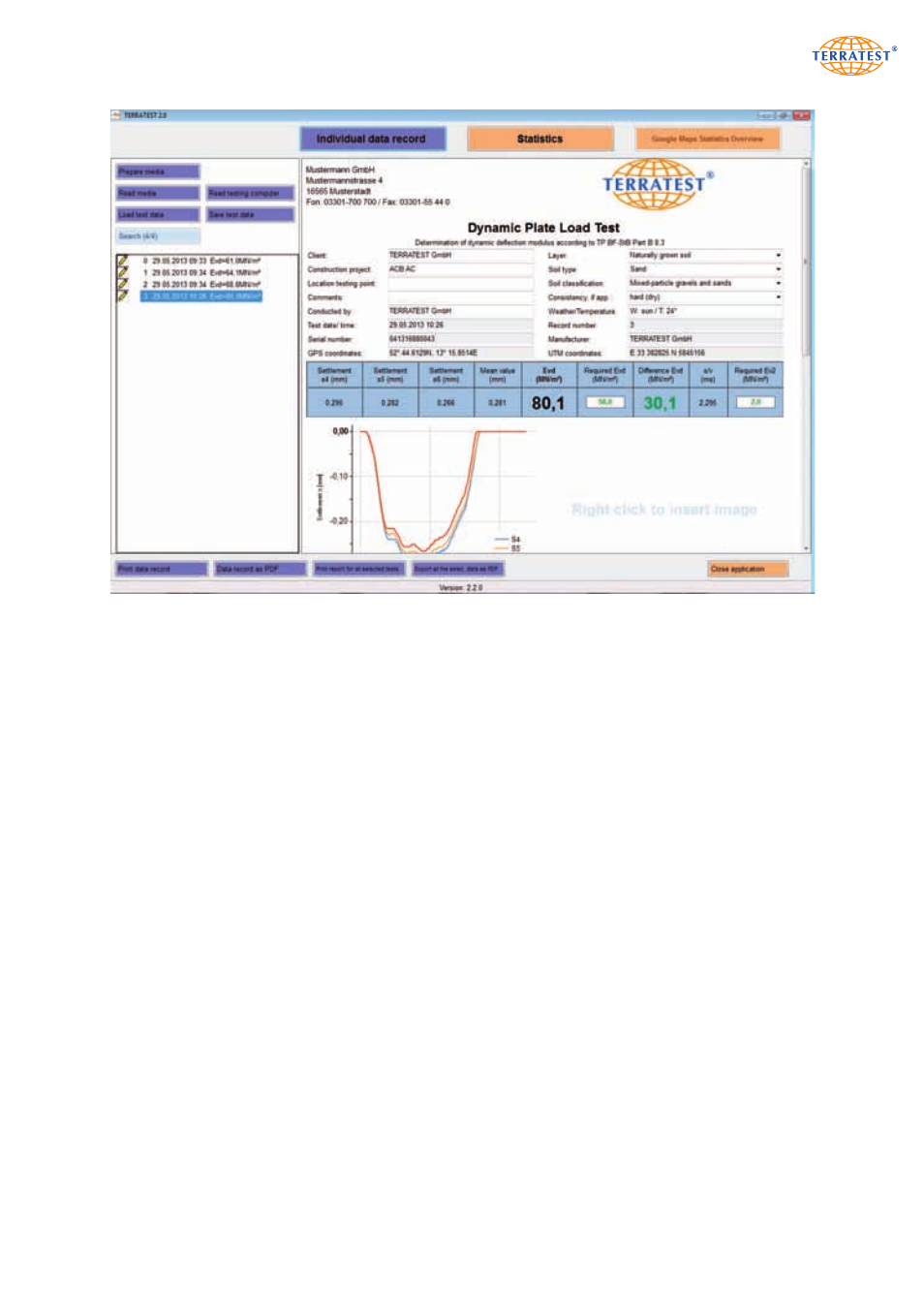

Test protocol with manually entered data. All entered data, except ‘LOCATION TESTING POINT’ and
‘COMMENTS’, will automatically be applied to all data records marked with a pen symbol. If the
required Evd value has been entered manually, the discrepancy between the required and the measured
value will be displayed automatically.
8.3.12 Print Protocol / Export as PDF File
The individual protocol for the currently displayed data record can be printed or saved as PDF via the
buttons ‘PRINT DATA RECORD’ and ‘DATA RECORD AS PDF’. The protocols for all data records marked
with a pen symbol can be printed or saved as PDF via the buttons ‘PRINT ALL DATA RECORDS’ and ‘ALL
DATA RECORDS AS PDF’.
