30
cut
static
test
TERRA
TEST
90 °
30 cm
30 cm
30 cm 30 cm
TERRA
TEST
TERRA
TEST
TERRA
TEST
TERRA
TEST
TERRA
TEST
TERRA
TEST
TERRATEST static
test
TERRATEST TERRATEST
TERRA
TEST
60
cm
60
cm
60
cm
45°
45° 45°
45°
45°
45°
45°
45°
60
cm
30 cm
60 cm
30 cm
top view
60 cm

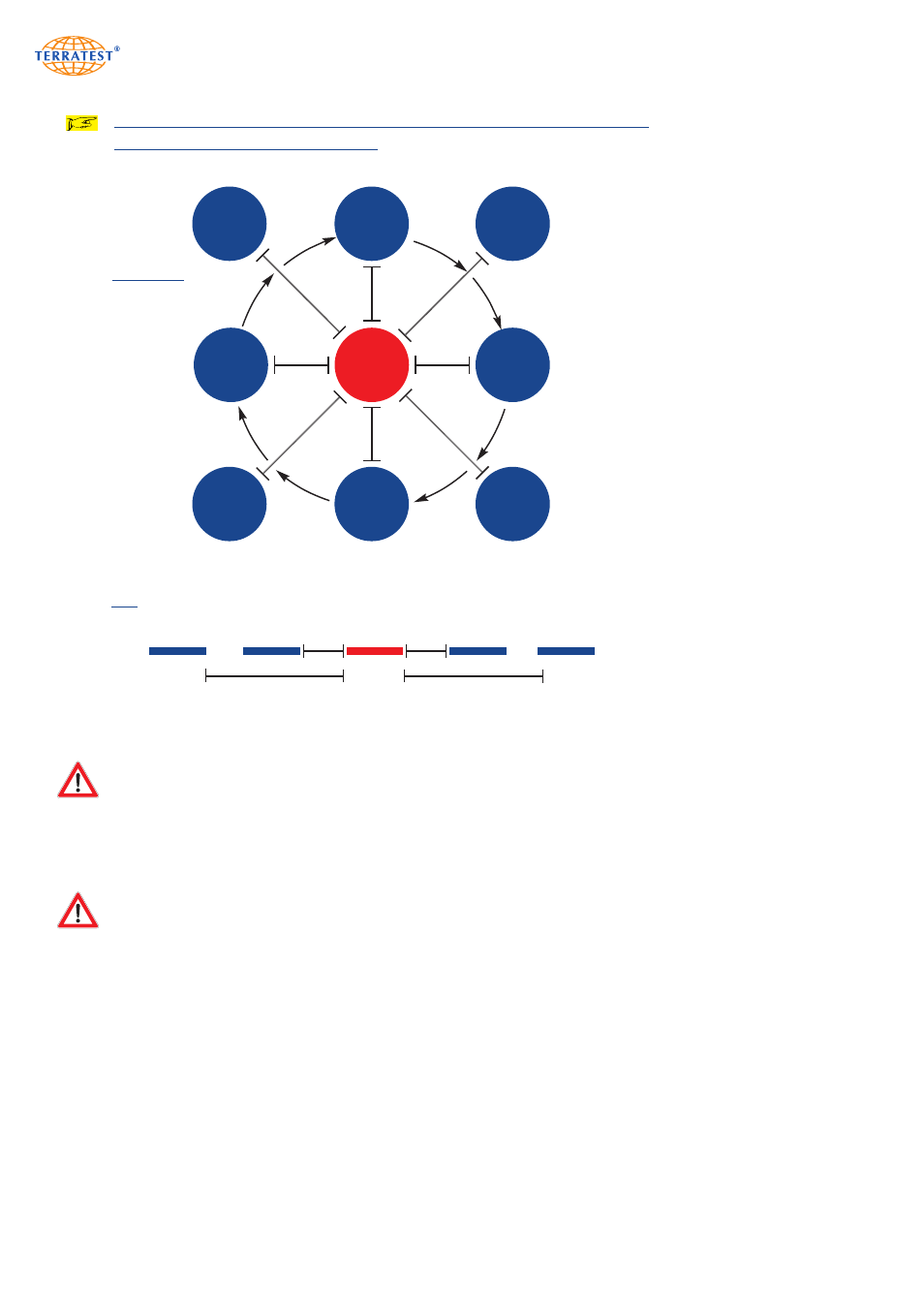

Schematic Representation – Determination of Correlation Values
Static / Dynamic Plate Load Test
For general information only! All details are subject to change.
Always perform a correlation measurement with the static plate load test, before
evaluating the test results.
The water content at the different testing points must not vary widely.
For every static plate load test at least three dynamic tests must be performed.
TERRATEST GmbH shall not be liable for any damage, consequential damage, or
even financial loss that occurs as a result of improper use of the device and / or
lack of professional knowledge when evaluating the test data. It is essential to
ensure that the calibration of the device is always up to date, and that the
device is always operated in accordance with the instructions of this document
as well as your local standard.
