Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 23
2014-01-29 Table of Contents Index 196-538M
Install Mid-Wing Brackets
Refer to Figure 21
5.
Select two:
806-172C U-BOLT 3/4-10 X 10 1/32X11 1/2
From the centerline of the inside U-Bolt installed at
step 1, measure
toward center, approximately:
35
1 ⁄
2
inch (90 cm)
Insert a U-bolt from drill front, under the hoses.
Insert the second U-bolt 7
1 ⁄
2
inch (19 cm) further in.
6. Select one:
196-291H 40P WEIGHT BRACKET WLDMNT
and four sets:
804-023C WASHER LOCK SPRING 3/4 PLT
803-027C NUT HEX 3/4-10 PLT
Position the bracket weldment on the U-Bolts ,
and adjust the placement as necessary to clear tube
weldments, web plates, grease banks, marker parts
and secure with lock washers
and nuts .
7. Select one:
197-062D WEIGHT BRACKET ADJ LEG
and two sets:
802-057C HHCS 5/8-11X2 1/4 GR5
804-019C WASHER FLAT 5/8 USS PLT
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
Orient the adjustment leg toward the inside
(center of drill), and secure with bolts , flat
washers , lock washers and nuts .
8. Repeat step 5 through step 7 for the right wing.

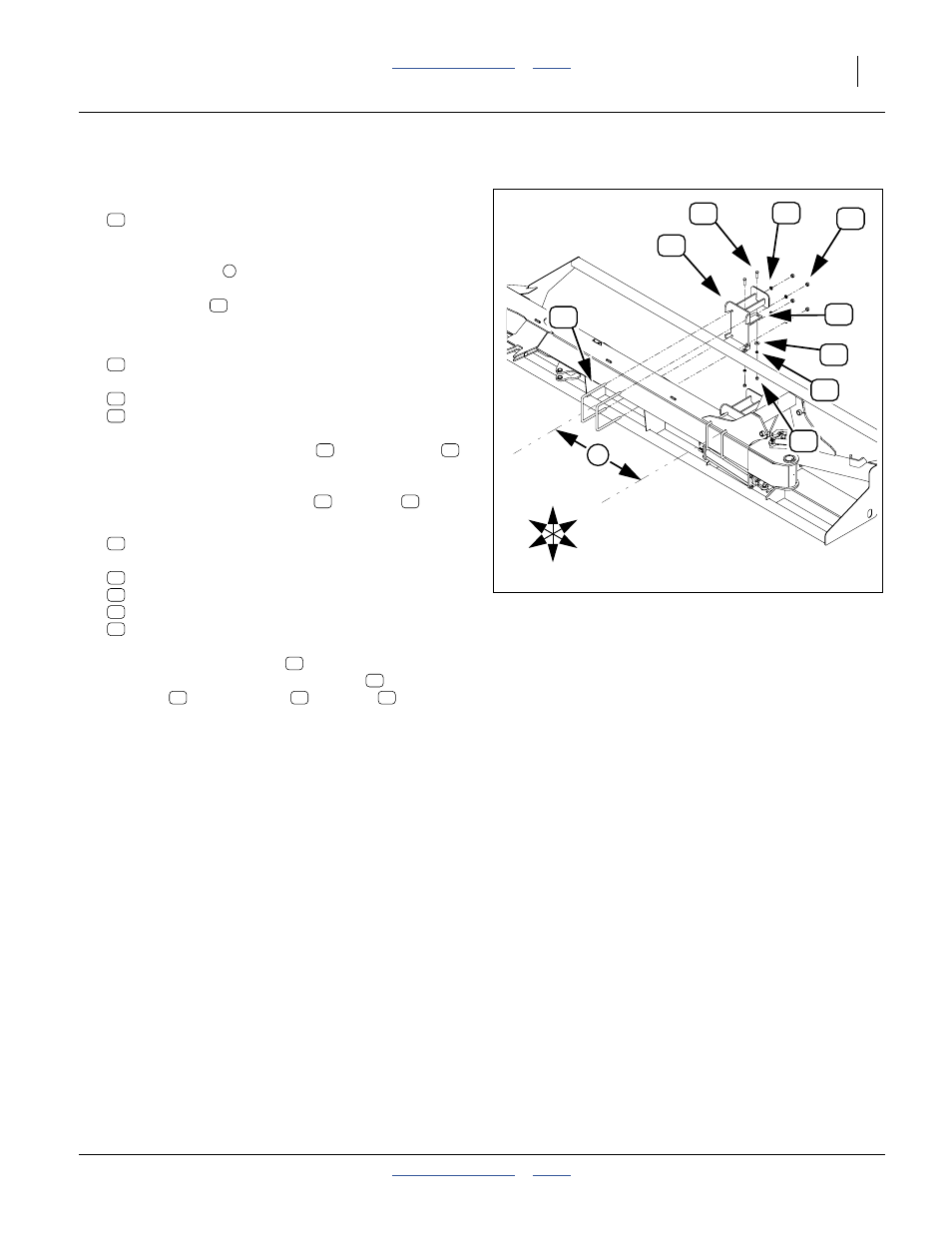

Figure 21
Weight Bracket, Mid-Wing
28243
11
16
17
14
19 12
18
15
13
2
U
D
F
B
L
R
19
2
19
11
18
15
11 19
18 15
12
13
16
17
14
12
13
16 17 14
