Page 155

Great Plains Manufacturing, Inc.
Maintenance and Lubrication
151
2014-01-29
196-538M

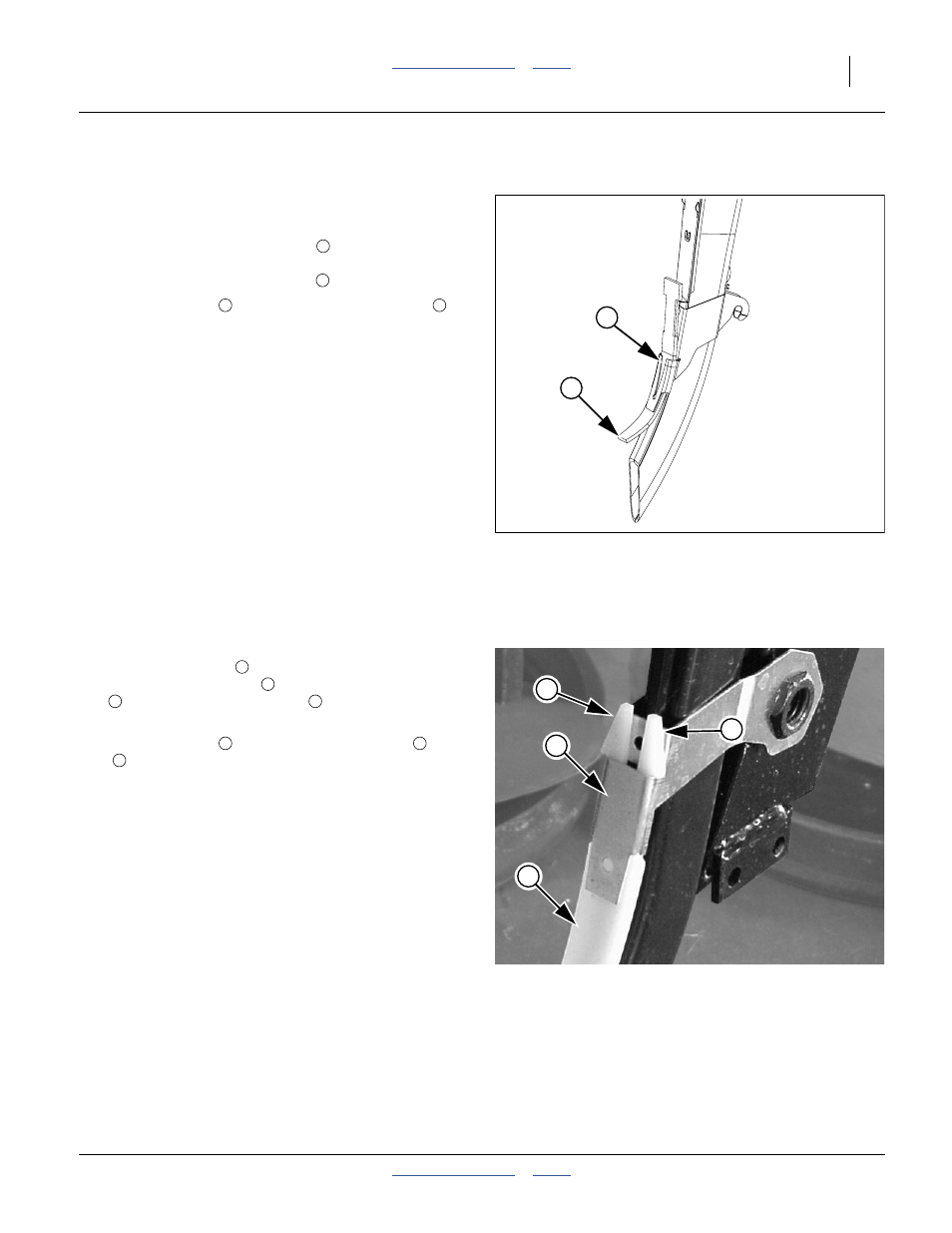

Row Unit Maintenance
Seed Flap Replacement (s/n 1054PP+)
Refer to Figure 209
To replace an 816-302C seed flap
use a needle nose
pliers or similar tool to grasp “T” top of flap. Pull upward
to pull flap up out of metal bracket
.
Push new seed flap
down through metal bracket
until flap snaps into place with “T” top resting on top of
bracket.
Seed Flap Replacement (s/n 1053PP-)
Refer to Figure 210
To replace a seed flap
use a needle nose or similar
tool and squeeze the tabs
together. Pull plastic seed
flap
down out of metal bracket
.
If replacing with 817-349C:
Push new seed flap
up through metal bracket
until
tabs
on seed flap snap in place.
If replacing with 816-302C:
See seed flap replacement instructions below.
4
.eps
100%
Figure 209
816-302C Seed Tube Flap
31047
5
4
5
4
5
.eps
100%
Figure 210
817-349C Seed Tube Flap
19398
3
2
1
2
1
2
1
3
1
3
2
