Point Row Clutch Control Box Schematic
Figure 6-1
15877
42
Section 6 Troubleshooting
10/10/12 PT1230 Pull-Type Folding Planter 401-069M-A
Great Plains Mfg., Inc.
!
WARNING!
Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before discon-
necting hydraulic lines. Use a piece of paper or cardboard, NOT BODY PARTS, to check for suspected leaks. Wear protective gloves
and safety glasses or goggles when working with hydraulic systems. If an accident occurs, see a doctor immediately. Any fluid in-
jected into the skin must be surgically removed within a few hours or gangrene may result.

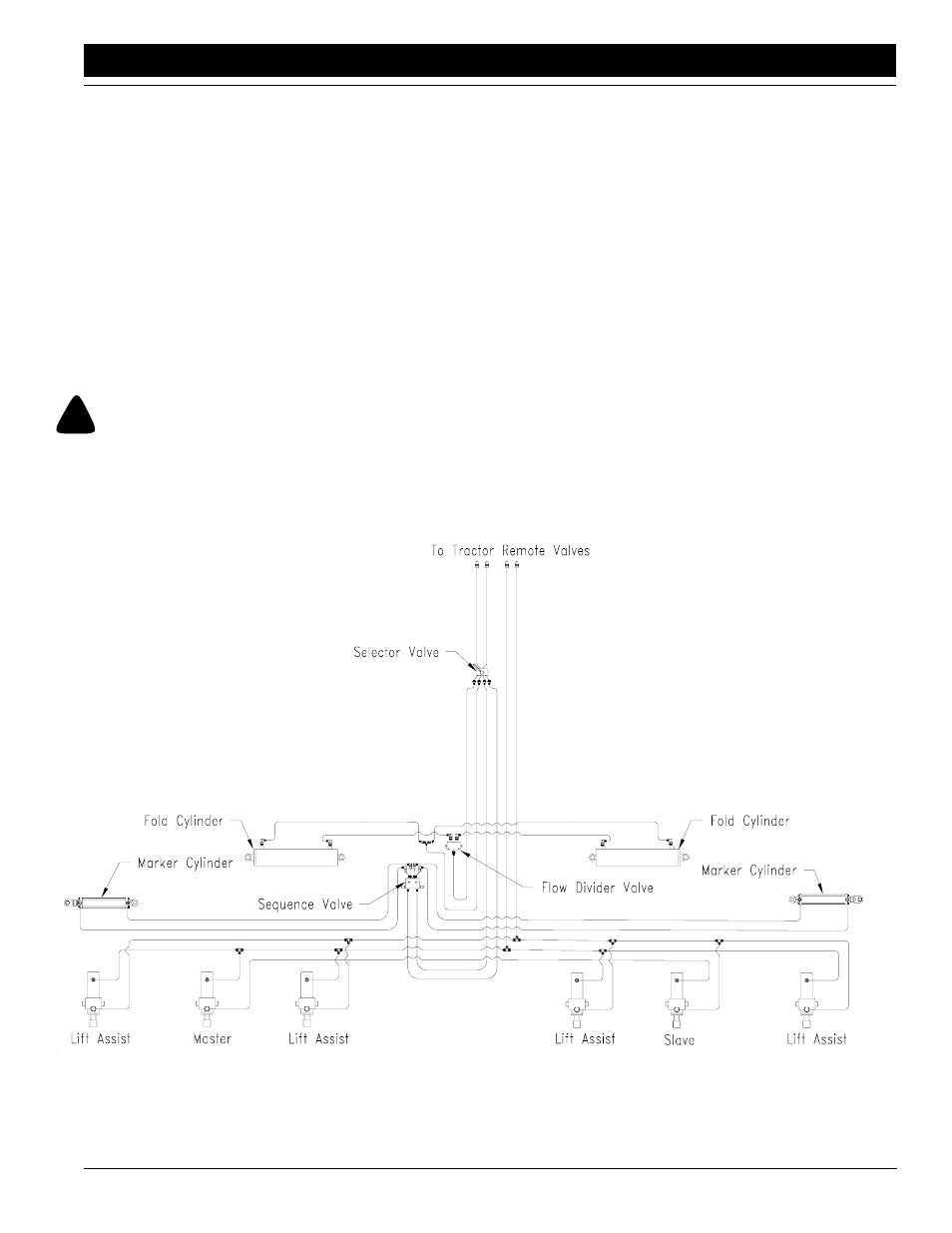

Hydraulic Schematic
Figure 6-2
16791
