Section 3 Row Unit Operation
PT1230 Pull-Type Folding Planter 401-069M-A
10/10/12
Great Plains Mfg., Inc.

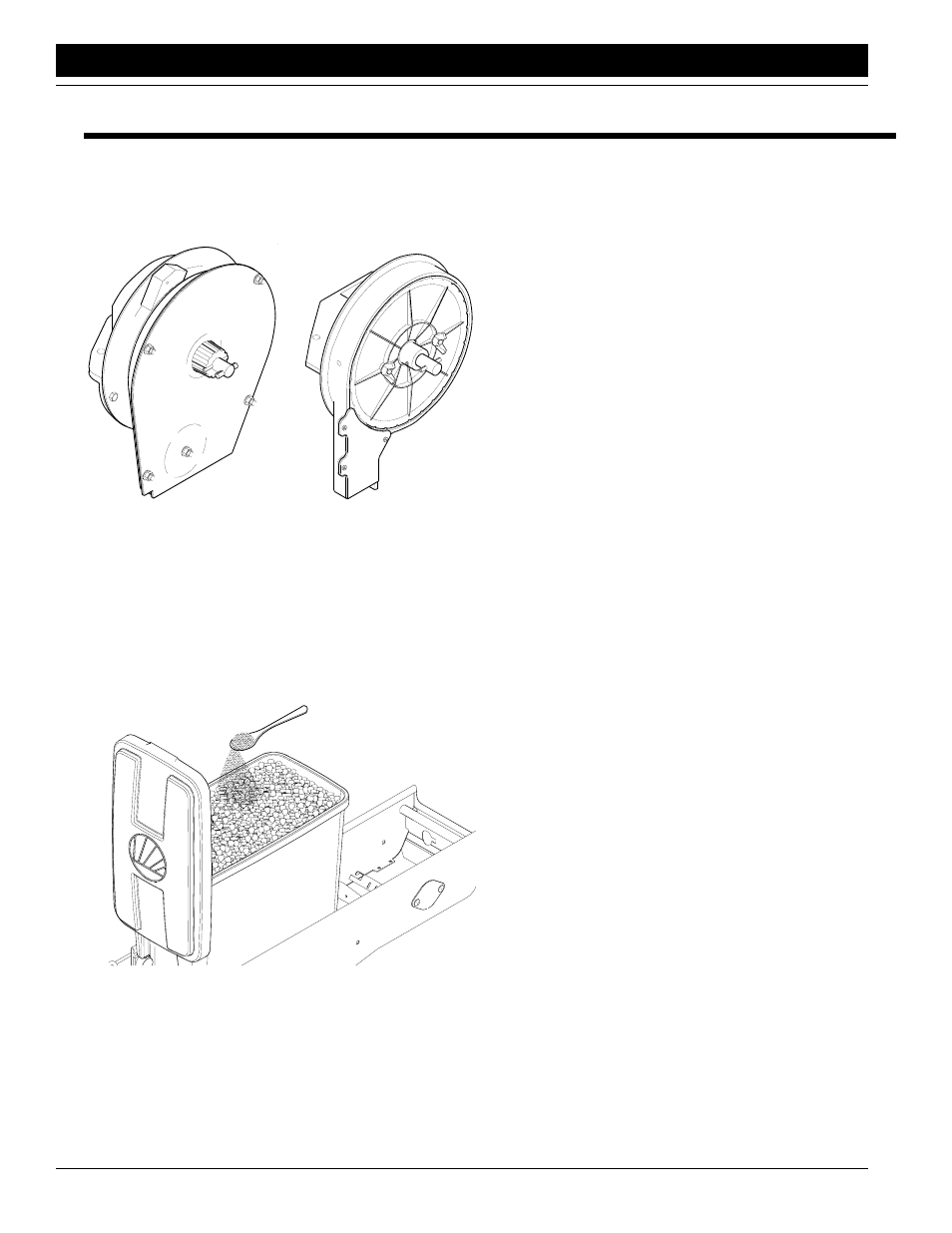

This planter may be equipped with either a 12 finger me-
chanical corn meter, see Figure 3-1, or a brush-type seed
meter, see Figure 3-2.
Finger Pickup Meter
Figure 3-1
12341
Brush Meter
Figure 3-2
15868
NOTE: To extend the life and maximize efficiency of the
finger pickup meter and the brush-type seed meter, sprin-
kle 1 teaspoon of powdered graphite on top of the seeds
in the hopper, see Figure 3-3. The graphite will work its
way down to lubricate the meter mechanism.
Graphite Applied to Top of Seeds
Figure 3-3
15782
Finger Pickup Meter
Refer to the Planting Rates for Finger Pickup Corn Meters
in “Section 5 Planting Rate Adjustments” on page
for adjusting the planting rates and sprocket combinations.
Section 3
Row Unit Operation
For more information on the meter, see “Section 6 Trou-
bleshooting” on page
43.
Brush Meter
The seed discs available for use with the brush meter are
as follows:
•
Soybean (black color-coded): 60 cells to meter seed siz-
es from 2200 to 4000 seeds per pound.
•
Specialty soybean (dark blue color-coded): 48 cells to
meter seed sizes from 1400 to 2200 seeds per pound.
•
Small milo/grain sorghum (red color-coded): 30 cells to
meter seed sizes from 14,000 to 20,000 seeds per
pound.
•
Large milo/grain sorghum (light blue color-coded): 30
cells to meter seed sizes from 10,000 to 16,000 seeds
per pound.
•
High rate small milo/grain sorghum (red color-coded):
60 cells to meter seed sizes from 12,000 to 18,000
seeds per pound.
•
High rate large milo/grain sorghum (yellow color-cod-
ed): 60 cells to meter seed sizes from 10,000 to 14,000
seeds per pound.
•
Cotton, acid-delinted (white color-coded): 30 cells to
meter seed sizes from 4200 to 5200 seeds per pound.
•
Large cotton, acid-delinted (tan color-coded): 36 cells to
meter seed sizes from 3800 to 4400 seeds per pound.
•
High rate cotton, acid-delinted (light green color-coded):
48 cells to meter seed sizes from 4200 to 5200 seeds
per pound.
•
Hill-drop cotton, acid-delinted (brown color-coded): 12
cells, 3 to 6 seeds/cell, to meter seed sizes from 4000 to
5200 seeds per pound.
To install the seed disc onto the meter hub, turn the disc
counterclockwise while tightening the two wing nuts that
retain the disc. After the wing nuts are tight make sure the
seed disc has only slight resistance when it is rotated
counterclockwise.
Clean seed should be used to assure accurate seed me-
tering. Brush meter seed discs should be removed and
checked daily for buildup of foreign material in the seed
meter or brushes. Foreign material, such as hulls, stems,
etc., may affect seed delivery.
Refer to the Planting Rates for Brush Meters in “Section
5 Planting Rate Adjustments” on page
30 for adjusting
the planting rates and sprocket combinations.
Read and follow the seed manufacturers’ recommenda-
tions when using seed treatment.
For more information on the meter, see “Section 6 Trou-
bleshooting” on page
43.
