12
Section 2 Planter Operation
10/10/12 PT1230 Pull-Type Folding Planter 401-069M-A
Great Plains Mfg., Inc.
Folding
!
DANGER!
Keep others away during folding operations. Do not walk under
wings when folding planter. See Figure 2-6 on page 14 before
attempting to unfold planter.
Folding is best achieved on level ground with the tractor
transmission in neutral. Be aware of the clearance re-
quired to fold the planter.
!
DANGER!
Keep clear of overhead power lines when folding planter and/
or markers.

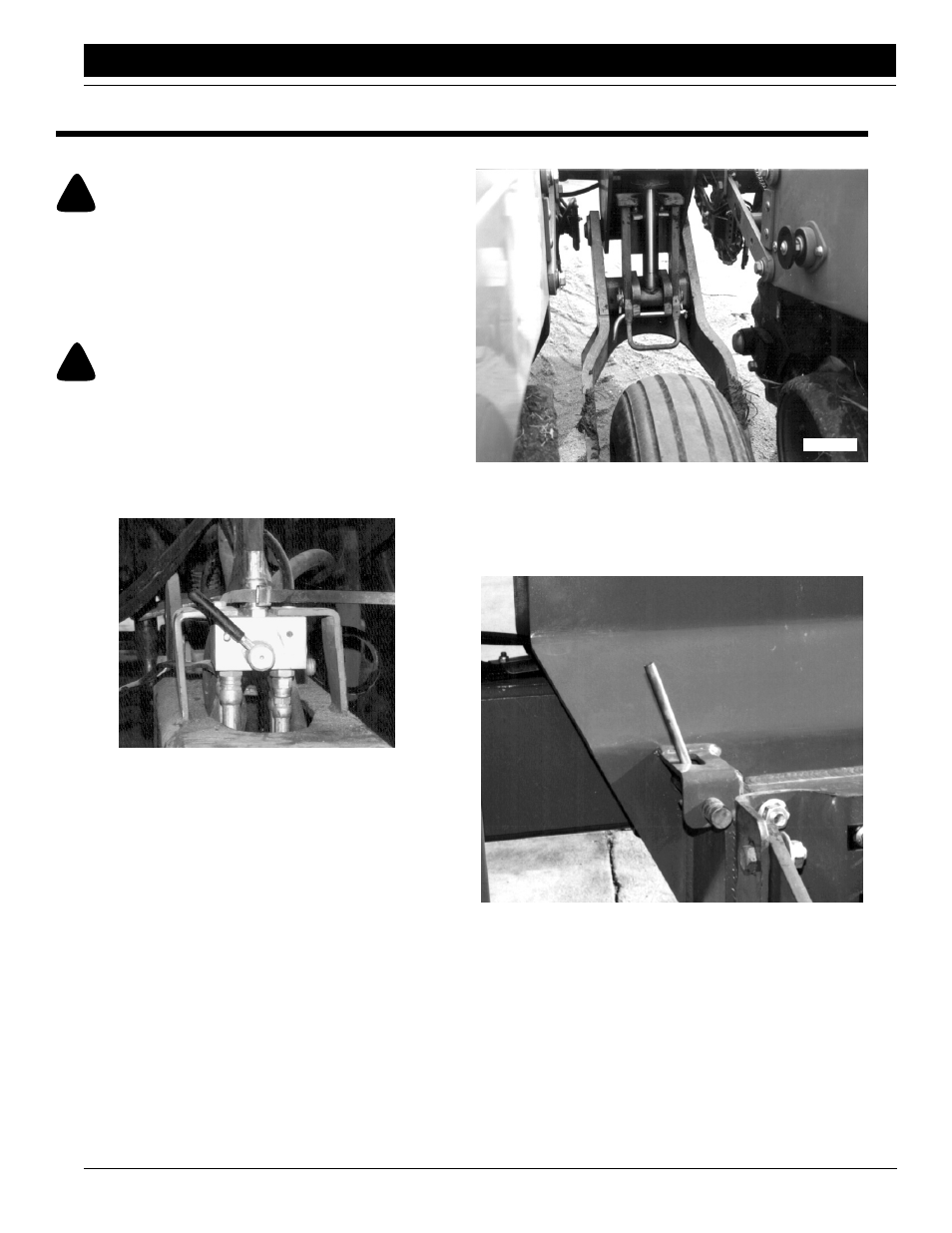

1. Lift planter.
2. Switch hydraulic selector valve from “Field” to “Road”.
See Figure 2-1.
Hydraulic Selector Valve in “Road” Position
Figure 2-1
15857
3. Secure the four cylinder locks on the center section as
shown in Figure 2-2.
Pivot lock into position on wheel
module cylinder rods. Install bent pin and secure with
hairpin clip.
Cylinder Locks Secured
Figure 2-2
16889
4. Pull out wing lock pins. See Figure 2-3.
Arm Wing Lock Pin in Unlocked Position
Figure 2-3
15859
5. Start folding. The drive shaft will automatically discon-
nect as planter is folding.
Section 2
Planter Operation
