OPERATOR’S MANUAL
Auto Section Control System
11001-1561B-201207
AUTO SECTION TERMINAL / 7
AUTO SECTION TERMINAL
The Auto Section Control terminal displays the field coverage map that
shows real-time viewing of the planting operation and indicates the vehicle’s
current location.
NOTE: All Auto Section Control setup
is entered on the IntelliAg
virtual terminal or other
compatible displays.

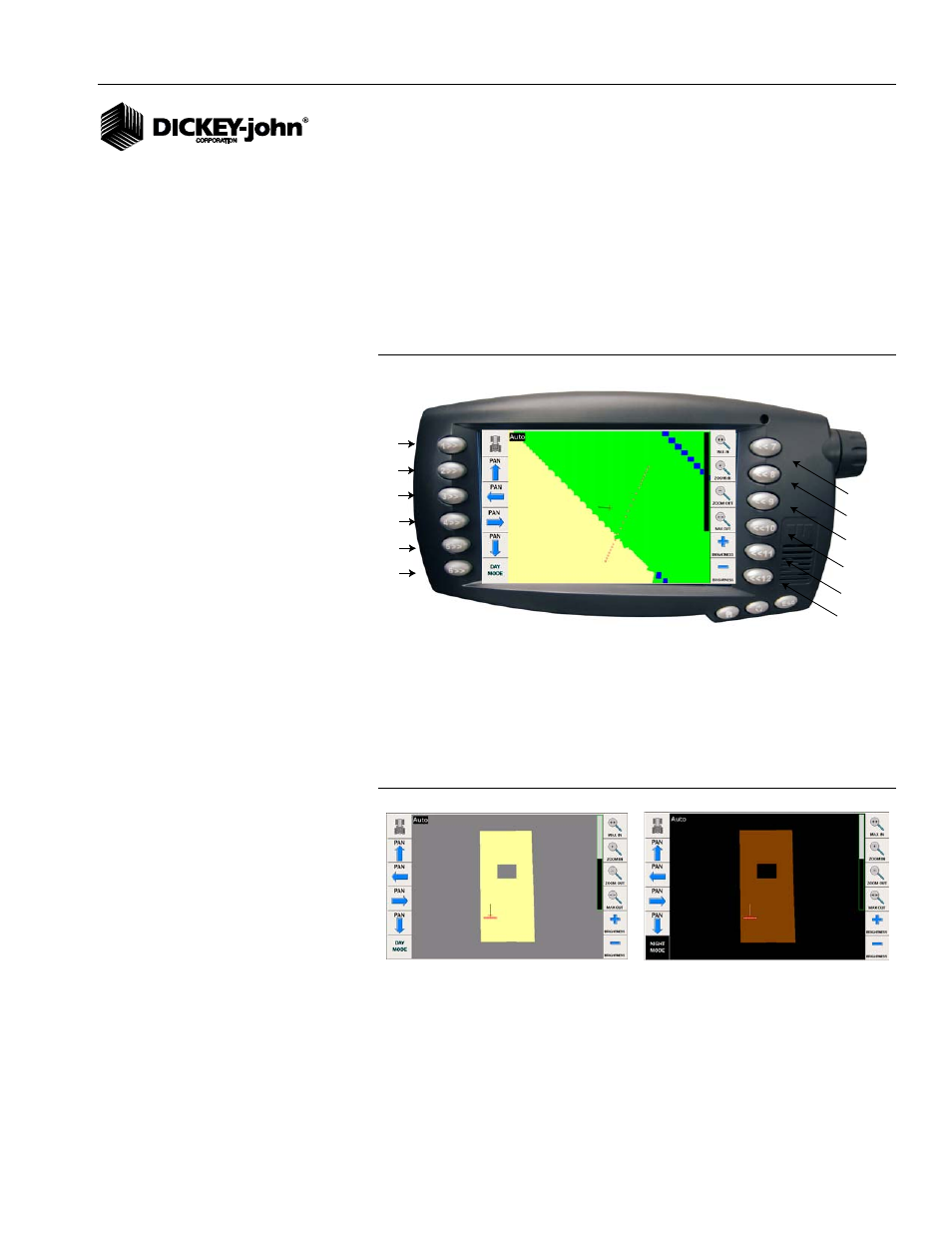

• Field map appearance on the screen is adjusted using the buttons
located on the left and right side of the terminal ( Figure 4 ).
Figure 4
Auto Section Control Terminal Functions
(1) Tractor - Returns to current field position after using the Pan buttons and
centers the tractor to screen middle
(2 - 5) Pan - Positions field map on screen to the left, right, up, or down
(6) - Night Mode/Day Mode - Adjusts screen colors for operating at night or
during the day
Figure 5
Day and Night Mode
(7) - Max In - Enlarges map to the most detailed view
(8) - Zoom In - Enlarges field map with each button press
(9) - Zoom Out - Reduces field map with each button press
(10) - Max Out - Shows entire field
(11) Increases screen brightness
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15
16
Day Mode Night Mode
