To Enter a Run In and Run Out Settings and Overlap:
1. At the Auto Section Control Main screen, press the System Setup
button.
2. Press the Run In and/or Run Out buttons to cycle between Skip or
Overlap.
3. Enter the amount of Run In and/or Run Out in inches into the
appropriate input boxes.
4. Press the Increase and Decrease % Side-to-Side buttons to adjust to
desired overlap and gap percentage from 50% to 100%.
IMPORTANT: If a Run In and Run Out Overlap or Skip do not perform
as entered at System Setup, verify that an additional
delay value is not entered at the IntelliAg Clutch
Configuration screen (
Figure 14 ) and a GPS calibration
has been performed.

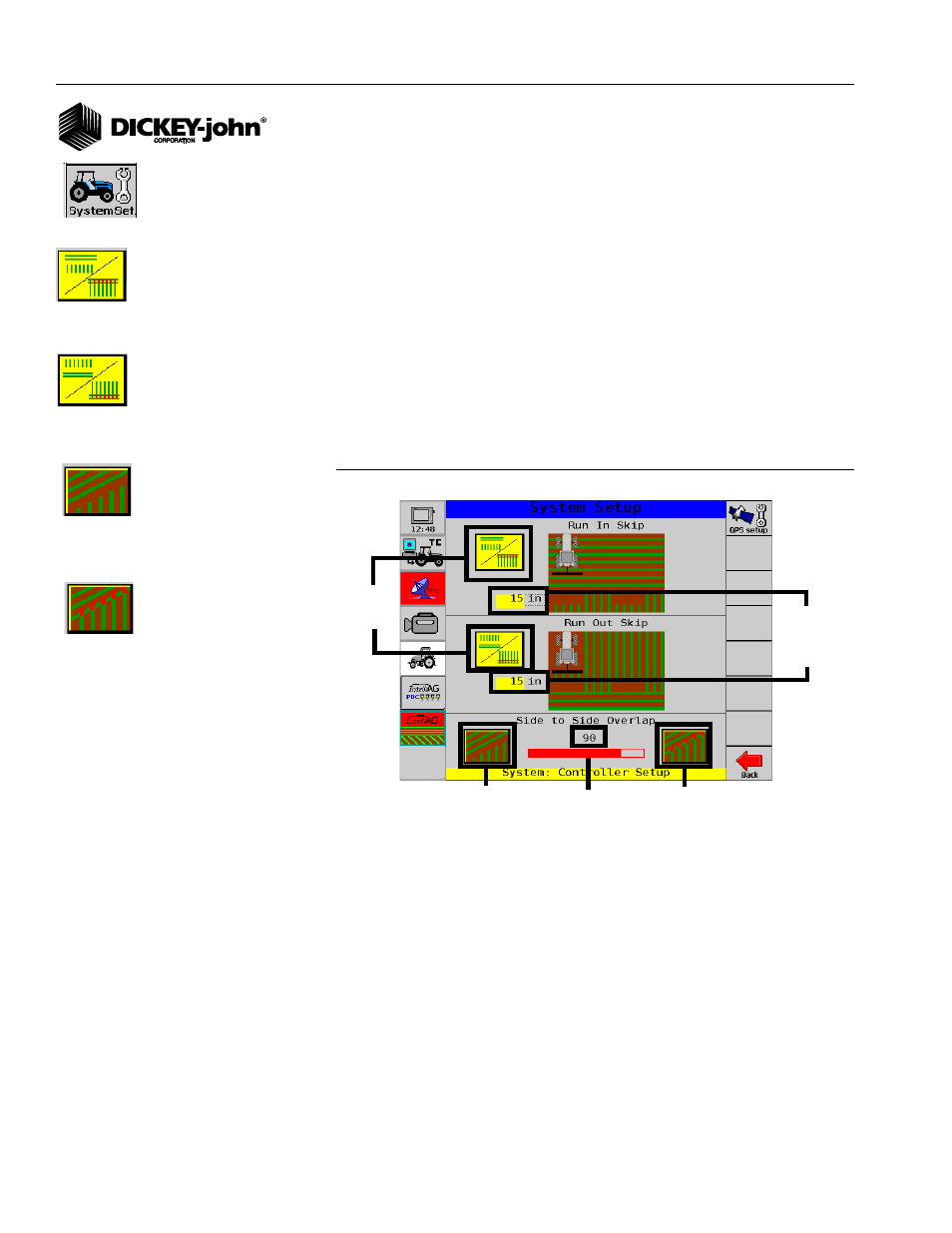

Figure 31
System Setup Screen
Run In/
Run Out
Buttons
Amount of
Skip or Overlap
in inches
Decrease
% to increase
skip
Increase
% to decrease
skip
Actual %
overlap
Run In Button
Run Out Button
Increase % Side-to-Side Button
Decrease % Side-to-Side Button
