16 / INTELLIAG PDC SETUP
RIGID CART MOUNT
An additional -X coordinate measurement from hitch to cart axle is entered
in (A1) table.

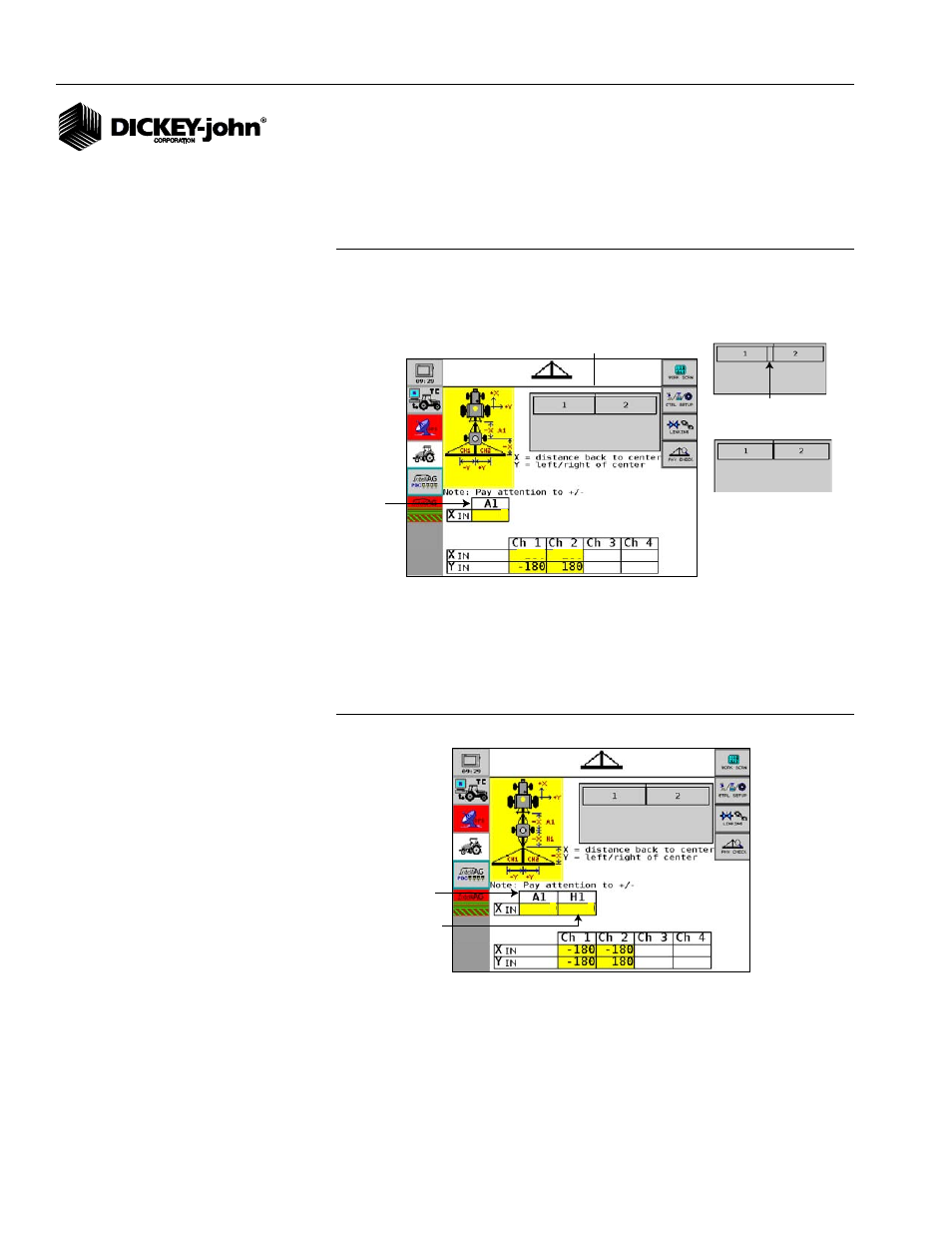

Figure 16
Physical Layout Screen - 2 Channel Assignment (Rigid Cart Mount)
NOTE: When operating with only 1
control channel, the “Y” value
on the Physical Layout screen
should remain at 0.
TOW-BEHIND CART
Two additional -X and -Y coordinate measurements from hitch to cart axle
entered in (A1) and cart center to implement hitch (H1).
Figure 17
Physical Layout Screen (Tow-Behind Cart)
4. To view implement layout, press the Physical Check button.
-180
Hitch to cart
axle
measurement
- 40 - 40
Control channel
over lap (Y coordinates
are not correct)
Implement
Table appears indicating
channel assignment as
X Y coordinates
are entered for two or
more channels
Correct control
channel alignment
(Y coordinates
entered correct)
-180 -180
Hitch to Cart
Axle
Measurement
Cart Axle to
Implement
Hitch
Measurement
