DIAGNOSTICS / 47
DIAGNOSTICS
The Diagnostics screen provides information about the Auto Section
Control software version and GPS status. Information on the screen cannot
be edited.
Press the Diagnostics button to access the GPS Status and System
Information screens.
GPS STATUS
The GPS Status screen provides information about the current status of the
GPS functionality used for troubleshooting. Information on the screen
cannot be edited.
1. At the Diagnostics screen, press the Status button to access the GPS
Status screen.
The average GPS Rate must be lower than 200 ms for the 5 Hz
requirement to be met.

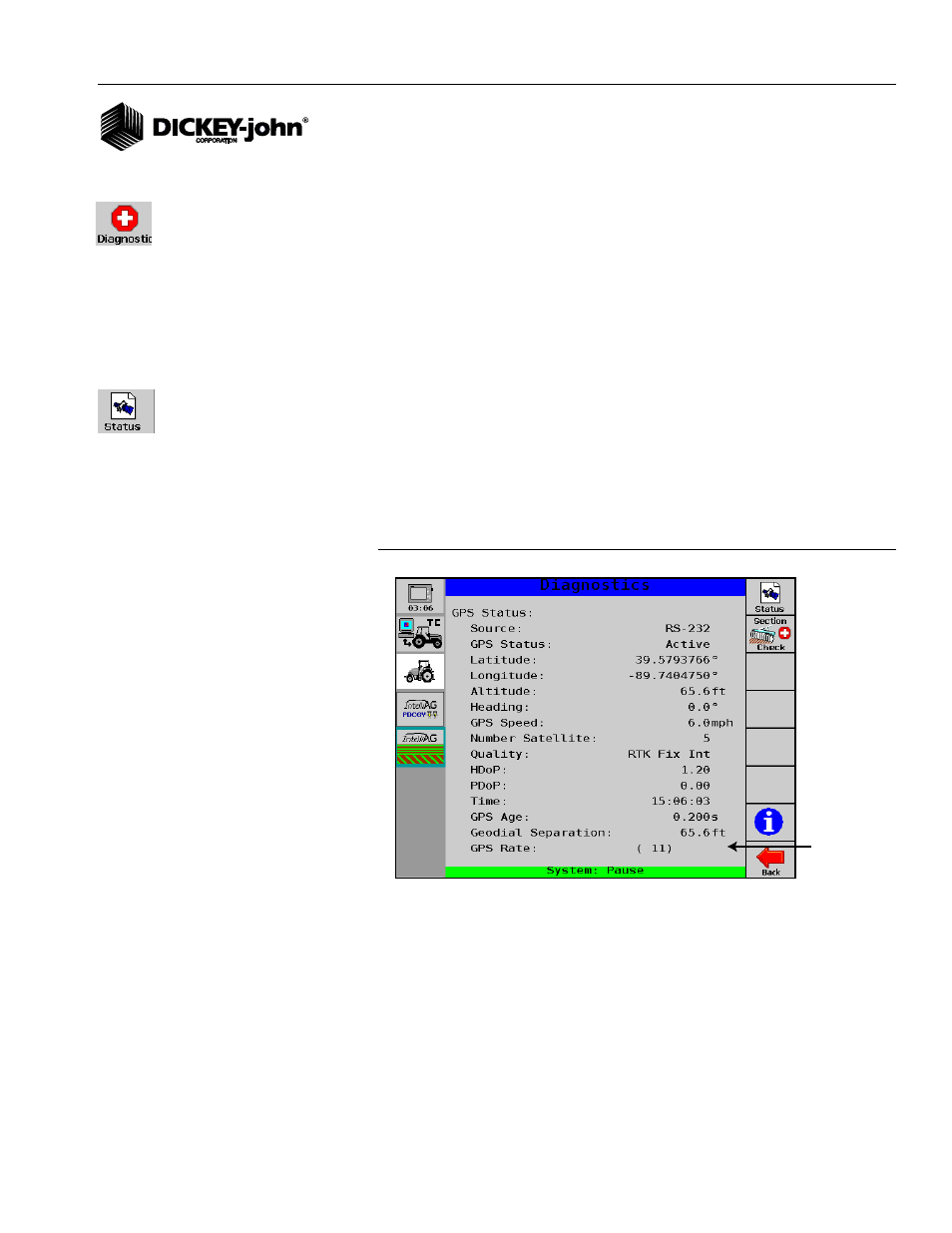

Figure 47
GPS Status Screen
Average GPS
Rate must be
lower than
200 ms
