OPERATOR’S MANUAL
Auto Section Control System
11001-1561B-201207
ERROR CODES / 59

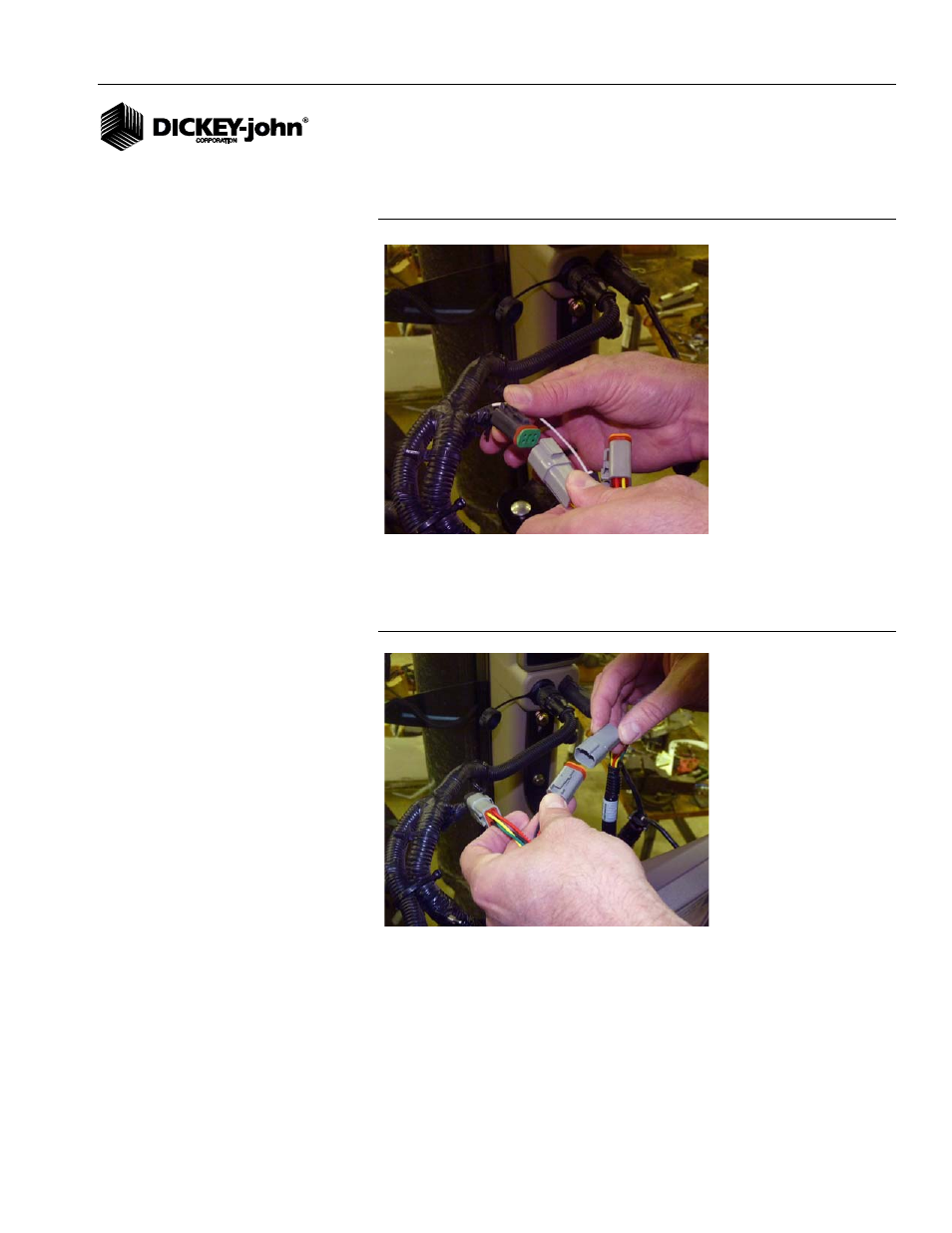

3. Inside the cab, connect CFM/RSM Module harness part number
46798-0335 to the mating 4 pin connector of the GS2 console harness.
Figure 54
Connect CFM or RSM Harness to GS2 Console
4. Connect the mating connectors of the Auxiliary Interface Module
harness part number 46798-0336 to the CFM/RSM Switch Module
harness part number 46798-0335.
Figure 55
Connector CFM or RSM Harness to Auxiliary Interface Harness
