INTELLIAG PDC SETUP / 13
INTELLIAG PDC SETUP
The following IntelliAg PDC screens must be configured to communicate
with the Auto Section Control application/terminal and perform Auto Section
Control functions.
• Implement Layout
• Planter Output Module
• Clutch Module/Switch Assignment
IMPORTANT: Rows must be assigned to a channel before proceeding
to implement setup. Row assignment can be verified at
the Channel Setup screen.
NOTE: If using the IntelliAg system
prior to Auto Section Control,
some of the IntelliAg screens
may already be configured and
do not require additional setup.
IMPLEMENT SETUP
To Enter Implement Settings:
1. Press the IntelliAg PDC button to display the IntelliAg Main Work
screen.
2. At the Main Work screen, press the Control Setup button.
3. At the Control Setup screen, press the Physical Layout button.

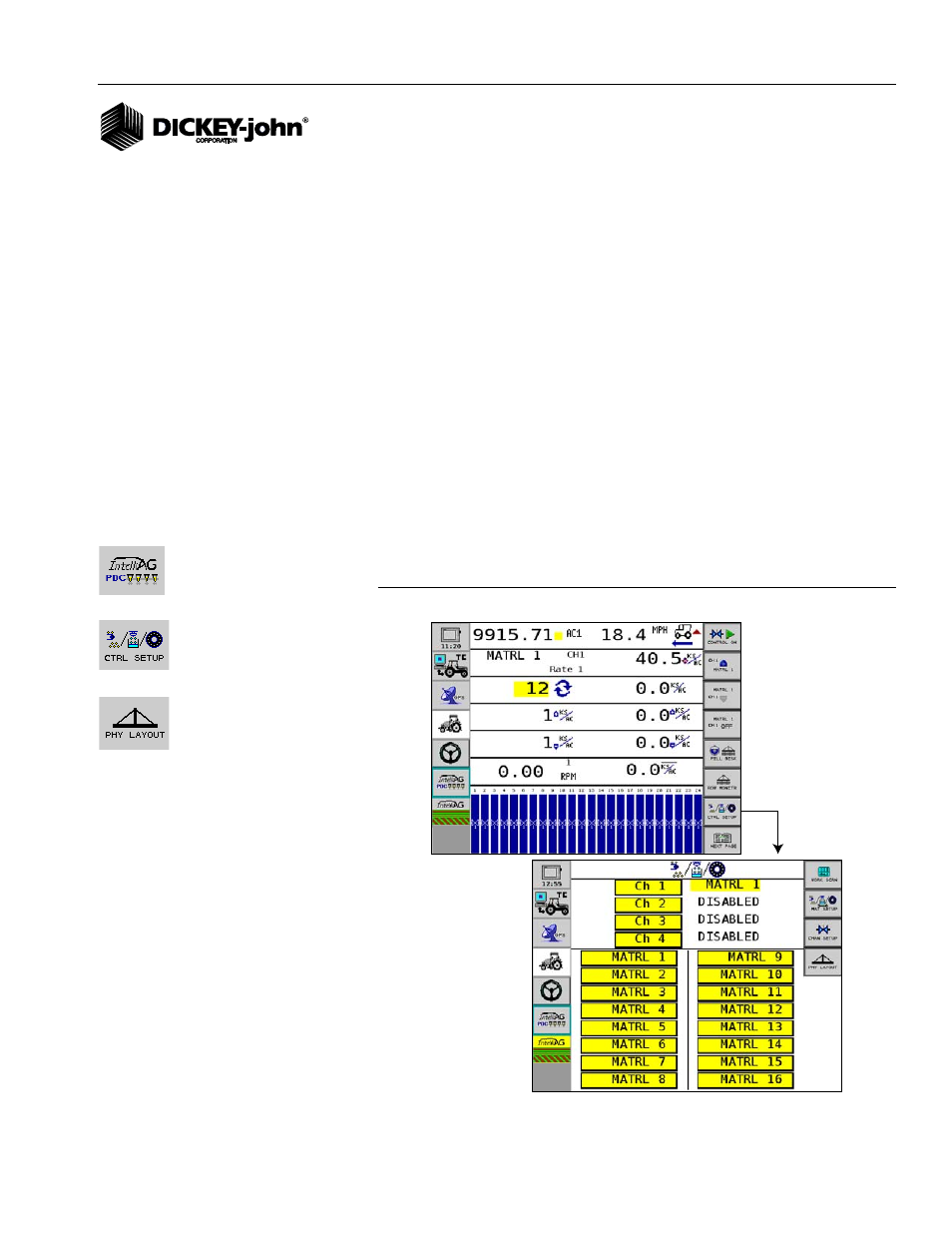

Figure 11
Physical Setup Screen
