OPERATOR’S MANUAL
Auto Section Control System
11001-1561B-201207
56 / ERROR CODES
APPENDIX A
AGCO GTA CONSOLE
AGCO tractors with a factory installed cab harness and GTA console
requires the GTASWATHKIT. This kit contains the required harnesses that
connect to the GTA console and auxiliary power connector in the cab.

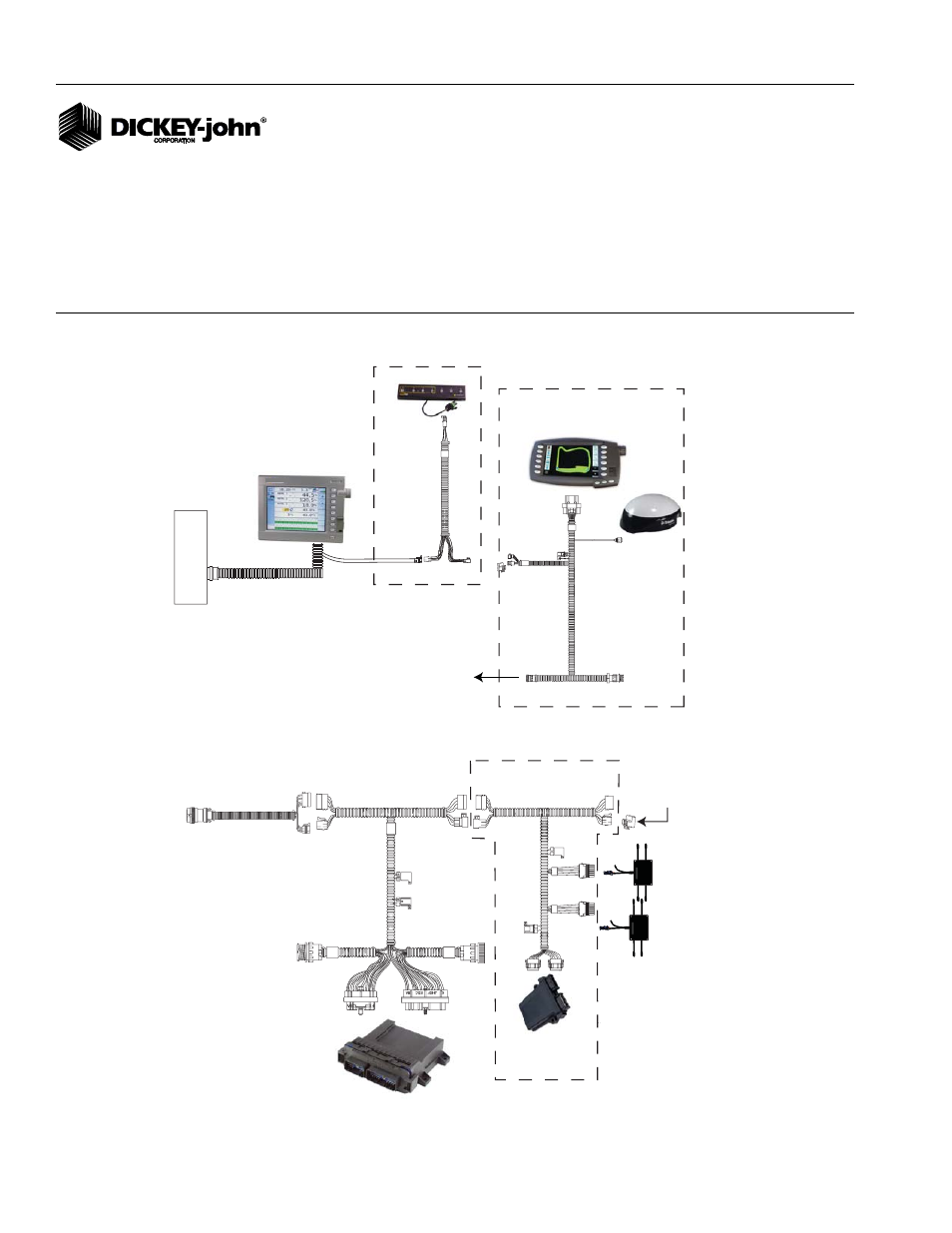

Figure 50
AGCO GTA Console and RSM or CFM Harness Connections
Auto Section
Control Terminal
ISO
Tractor
Hitch
WSMT 2 ‘T’ Harness
467980850
Add a CAN Extension
or
CAN Terminator
WSMB
Tru Count
Output Module
Tru Count
Solenoid
Modules
(available from
Tru Count)
Tru Count
Clutch Harness
467983505
Hitch Extension
Harness
46798013x
WSMT 2
PDC Module
CFM or
RSM
Switch
Module
Harness
467980330
Auto
Section
Terminal
Interface
Harness
467980337
GPS input from
GPS Receiver
Terminator
Corner A
Post
GTA Console
Harness
GTA2
To
Auxiliary
12 V in Cab
GPS Receiver connects
direct to RS232 on
Auto Section Terminal
Harness. Refer to Auto
Section Control
Setup to transmit GPS
signal over CAN.
Cab Harnessing
Implement Harnessing
